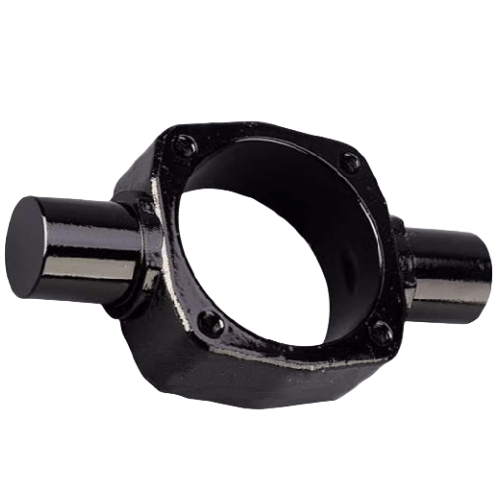

Airtac F-SC-TC Trunnion Bracket F-SC32TC
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Series Center Pivot Bracket F-SC32TC Technical Details
- Model: F-SC32TC
- Type: Reinforced center pivot bracket
- Compatible cylinder series: SC/SU/SE 32mm bore
- Material: Aluminum alloy (A6061-T6)
- Surface treatment: Black anodized
- Mounting hole specifications: M8x1.25 threaded
- Maximum load capacity: 2,500N static / 1,800N dynamic
- Rotation angle: ±5° adjustable
- Operating temperature: -20℃ to 150℃
- Corrosion resistance: 500hrs salt spray tested
- Weight: 0.45kg ±5%
- Dimensions: 120mm(L) × 50mm(W) × 32mm(H)
- Included hardware: 2x M8x25 hex socket screws, 4x anti-vibration washers
Precision-machined pivot bracket with dual-bearing design for smooth rotational movement in heavy-duty applications. Features laser-etched alignment marks and integrated lubrication grooves. The hardened contact surfaces reduce wear under repetitive motion, with vibration-damping properties ideal for high-cycle automation systems.
- Robotic welding arm articulation points
- Palletizing machine rotary joints
- Automated conveyor diverters
- CNC tool changer mechanisms
- Packaging machine rotary actuators
Installation protocol:
Apply 20-25N·m torque during screw tightening using cross-pattern sequence.
Use thread-locking compound (medium strength) for shock/vibration environments.
Align red calibration mark with cylinder's neutral position during assembly.
| Property | Property Value |
|---|---|
| sku | F-SC32TC |
