Airtac F-SC-TC Trunnion Bracket F-SC40TC
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket

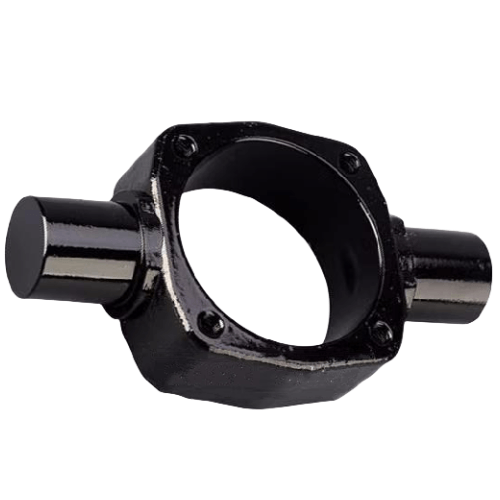

The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Center Pivot Bracket F-SC40TC Technical Details
- Model: F-SC40TC
- Type: Intermediate trunnion bracket with through-hole design
- Material: Aluminum alloy ADC12
- Surface Treatment: Anodized (natural color)
- Mounting Hole Dia.: Ø12mm (precision honed)
- Max Load Capacity: 2,200N static / 1,500N dynamic
- Compatible Cylinder Bore: 40mm series
- Operating Temp Range: -20℃ to 120℃
- Installation Torque: 12-15 N·m (recommended)
- Weight: 0.68kg ±2%
- Dimensions: 89mm(L) × 56mm(W) × 42mm(H)
- Mounting Base Thickness: 10mm (reinforced rib design)
- Corrosion Resistance: Salt spray test passed 500hrs
Engineered for heavy-duty linear motion systems, the F-SC40TC features a symmetrical dual-ear design that enables 360° adjustable mounting. Its precision-machined surfaces (Ra1.6μm finish) ensure perfect alignment with pneumatic cylinders, reducing side load stress. The thermal-conductive aluminum construction dissipates heat effectively during high-cycle operations.
- Robotic welding arm pivot supports
- Packaging line cylinder mounting systems
- CNC machine tool linear guide end stops
- Automated material handling equipment
- Plastic injection molding machine clamps
Installation Best Practice:
Apply thread-locking compound on M8 fasteners and torque in crisscross pattern.
Maintain 0.1-0.3mm clearance between bracket and cylinder flange for thermal expansion.
