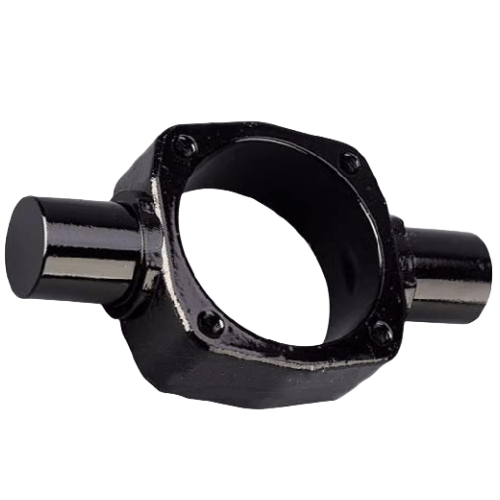

Airtac F-SC-TC Trunnion Bracket F-SC63TC
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Center Pivot Bracket F-SC63TC Technical Details
- Model: F-SC63TC
- Type: Center pivot bracket with threaded collar
- Material: Aluminum alloy ADC12 (zinc plating optional)
- Load capacity: 450N dynamic / 900N static
- Mounting hole diameter: Ø12.5mm (+0.2/-0 mm tolerance)
- Thread specifications: M6×1.0 mounting screws (4 places)
- Compatible cylinder series: SC/SU/SD 63mm bore size
- Surface treatment: Black anodized (Alodine 1200S compliant)
- Operating temperature: -20℃ to 80℃
- Weight: 250±10g
- Dimensions: 63mm(L) × 30mm(W) × 50mm(H)
- Moment resistance: 18N·m max (axial direction)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined pivot bracket engineered for mid-stroke support in long cylinder applications. Features dual-bearing design with self-lubricating brass bushings to minimize lateral deflection. The T-slot configuration allows ±2mm positional adjustment during installation. Compatible with ISO 15552 profile cylinders.
- Vertical lifting mechanisms in automated warehouses
- Rotary clamp positioning in automotive welding jigs
- Multi-axis robotic arm articulation points
- Press machine guide rod stabilization
- Solar panel tracking system linkages
Installation protocol:
Apply 20-25N·m torque during screw fastening. Use shim washers when mounting
on uneven surfaces. Perform alignment check every 5,000 operating cycles.
| Property | Property Value |
|---|---|
| sku | F-SC63TC |
