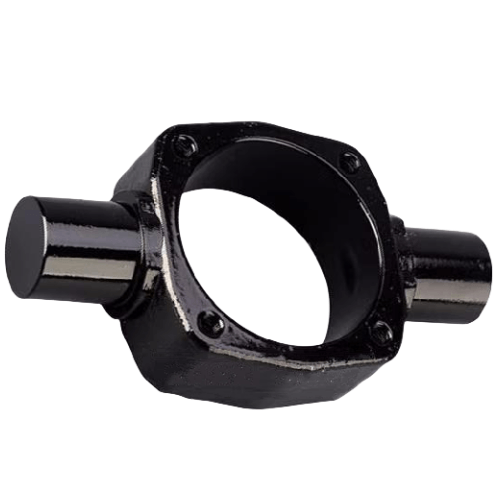

Airtac F-SC-TC Trunnion Bracket F-SC80TC
$29.43
Regular price
$36.93
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SC80TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
Installation note:
Apply medium-strength thread locker (Loctite 243 recommended) on mounting screws.
Regularly lubricate pivot pin with ISO VG32 hydraulic oil. Avoid side impact during
cylinder installation to prevent bearing misalignment.
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Center Pivot Bracket F-SC80TC Technical Details
- Model: F-SC80TC
- Type: Center pivot bracket with threaded mounting
- Material: High-strength aluminum alloy (A6063-T5)
- Surface treatment: Hard anodized (25μm thickness)
- Max load capacity: 980N (dynamic), 1,470N (static)
- Bore compatibility: Designed for φ80mm cylinders
- Mounting thread: M12×1.75 (internal)
- Pivot pin diameter: φ12h7
- Rotation angle: ±5° self-aligning capability
- Weight: 0.68kg ±2%
- Dimensions: 125mm(L) × 80mm(W) × 42mm(H)
- Operating temperature: -20℃ to 150℃
- Corrosion resistance: 500hr salt spray test passed
- Mounting torque: 35-40N·m (recommended)
Precision-machined pivot bracket featuring dual angular contact bearings for smooth articulation under heavy loads. The hardened pivot shaft and integrated dust seals ensure longevity in harsh environments. Compatible with ISO 15552 standard cylinders.
Typical Applications:
- Robotic arm end-effector mounting
- Automated material handling systems
- Packaging machine rotary joints
- Press tooling alignment mechanisms
- Semiconductor equipment positioning
Installation note:
Apply medium-strength thread locker (Loctite 243 recommended) on mounting screws.
Regularly lubricate pivot pin with ISO VG32 hydraulic oil. Avoid side impact during
cylinder installation to prevent bearing misalignment.
| Property | Property Value |
|---|---|
| sku | F-SC80TC |
