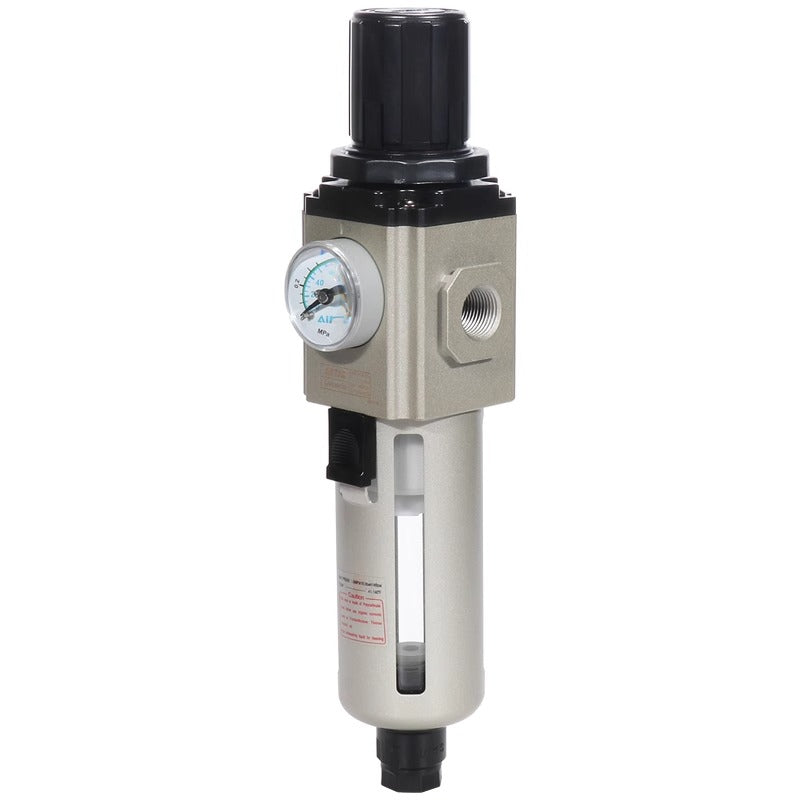

Airtac GAFR Adjustable Filter Regulator GAFR20006AL

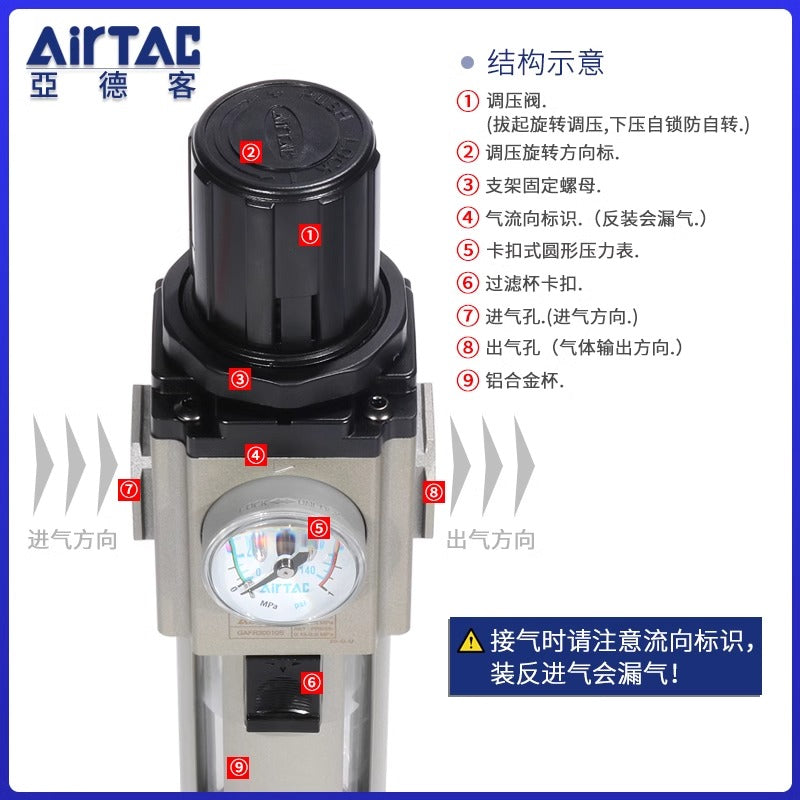

2、Press-in self-locking mechanism prevents unintended pressure setting deviations caused by external interference;
3、Balanced pressure regulation mechanism ensures stable adjustment with minimal drift and superior pressure characteristics;

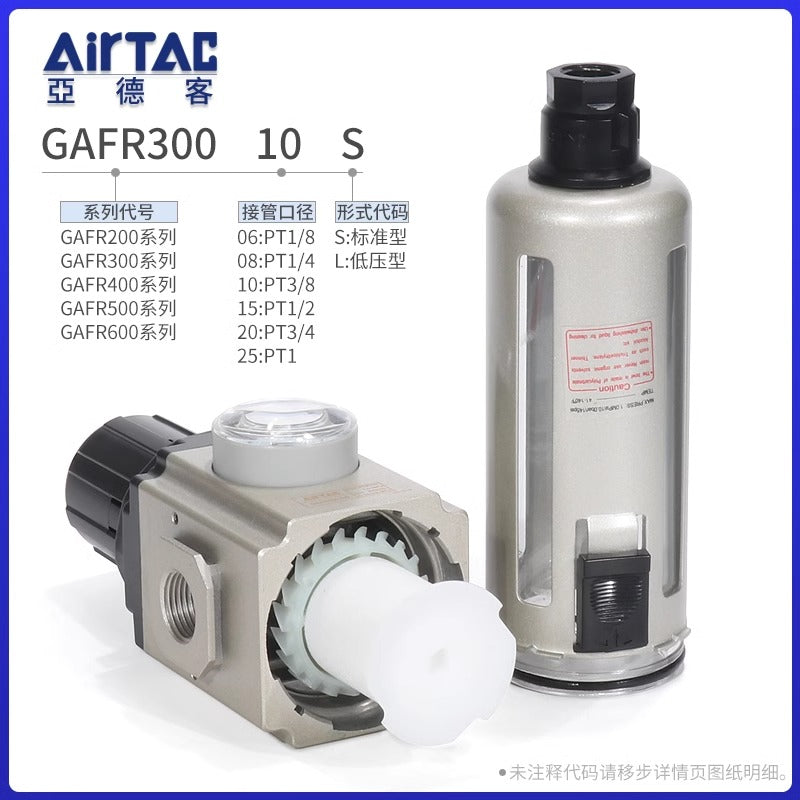

4、Available in standard configuration and low-pressure variant (maximum adjustable pressure 0.4MPa);
5、Unique vortex-inducing structure optimizes gas rotation for efficient liquid separation and reliable solid particle filtration;
6、Selectable filtration precision: 5μm or 40μm;
7、Dual drainage options: differential pressure manual drainage or automatic drainage systems;
8、Bowl materials include PC, metal, and nylon for environmental adaptability;

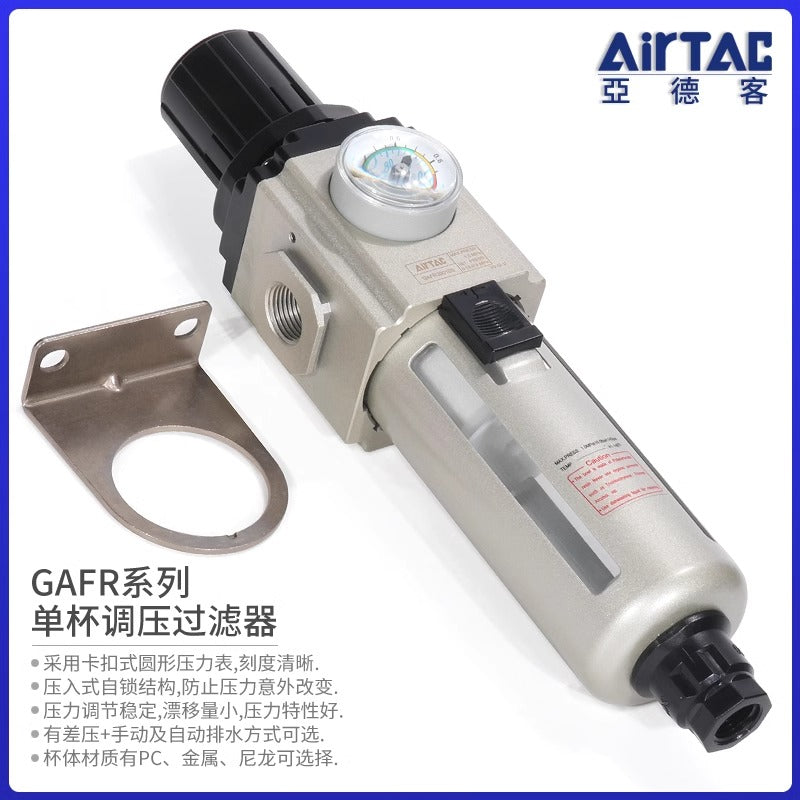

9、Optional fixed bracket mounting configuration available.
Category: Regulating Filters , Brand: AirTAC , Series: GAFR
AirTAC GAFR20006AL Pressure Regulating Filter Technical Details
- Full model designation: GAFR20006AL (with lubricator)
- Thread size: 1/4" BSPP (G1/4)
- Operating pressure range: 0.05-0.85 MPa
- Maximum pressure: 1.5 MPa
- Flow capacity: 2500 NL/min (ANR)
- Filter rating: 40μm (5μm optional element available)
- Adjustment knob rotation: 270° with lockable dial
- Auto drain type: Semi-automatic float drain
- Body material: Die-cast aluminum alloy (anodized)
- Bowl material: Polycarbonate (impact-resistant)
- Seal material: HNBR (hydrogenated nitrile)
- Temperature range: -5℃ to 60℃ (non-freezing)
- Weight: 340g ±5% (dry, without mounting bracket)
- Dimensions: 105mm(H) × 68mm(W) × 82mm(D)
- Pressure gauge: Integrated 1.5" dial (MPa/psi dual scale)
- Mounting options: Panel mount or in-line direct connect
Three-stage combination unit integrating pressure regulation, precision filtration, and optional lubrication. Features a visible sediment bowl with safety shield and pressure relief blow-down button. The T-handle design allows tool-free maintenance with 240° rotation range for precise pressure adjustment. Compatible with ISO 8573-1 air quality standards.
- Pneumatic tool air line conditioning
- Packaging machinery air preparation systems
- CNC machine tool pneumatic circuits
- Automated assembly line air supply
- Semiconductor manufacturing clean air systems
Maintenance protocol:
Replace filter element every 6,000 operating hours or when pressure drop exceeds 0.1MPa.
Drain bowl daily in high-humidity environments. Install vertically with arrow marking
aligned to airflow direction (→).
Contains polycarbonate components -
Avoid UV exposure and petroleum-based lubricants. Not suitable for oxygen systems.
| Property | Property Value |
|---|---|
| sku | GAFR20006AL |
| Port Size | PT1/8 |
