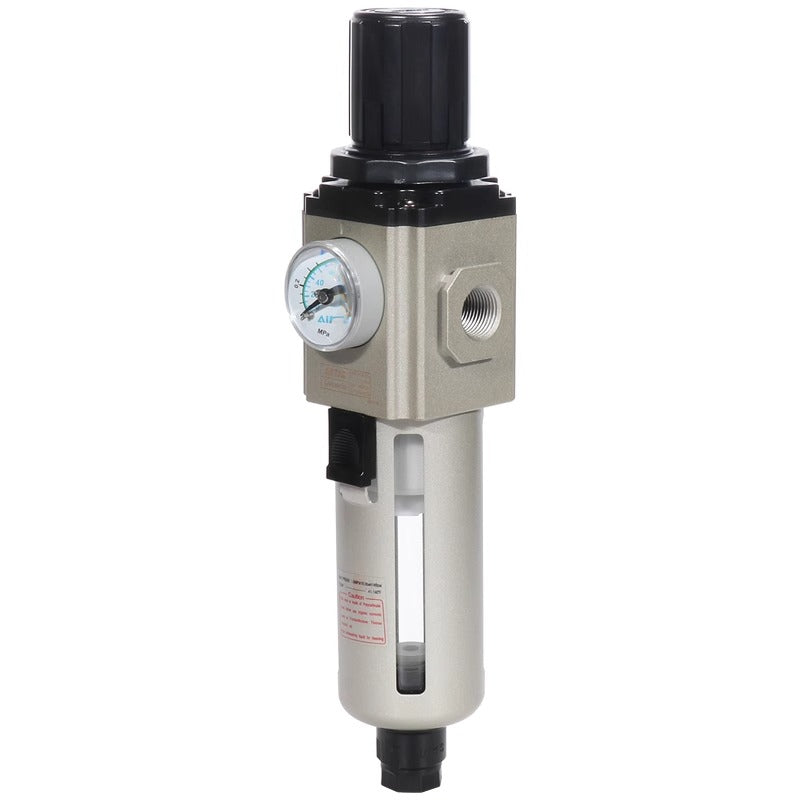

Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW
The AirTAC Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW is a genuine two-in-one filter & regulator — a diversion-type water/particulate filter and a balanced pressure regulator built into ONE body. It has 1/8" ports, a 5 µm filter element and regulates 0.15 - 0.4 MPa (20 - 58 psi). It has no lubricator, so it adds no oil to the airflow.
- TypeFilter & regulator
- Port size1/8"
- Pressure range0.15 - 0.4 MPa (20 - 58 psi)
- Filtering grade5 µm
- Bowl materialPC
- Drainautomatic
- Pressure gaugeNot fitted
- Weight290 g
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.

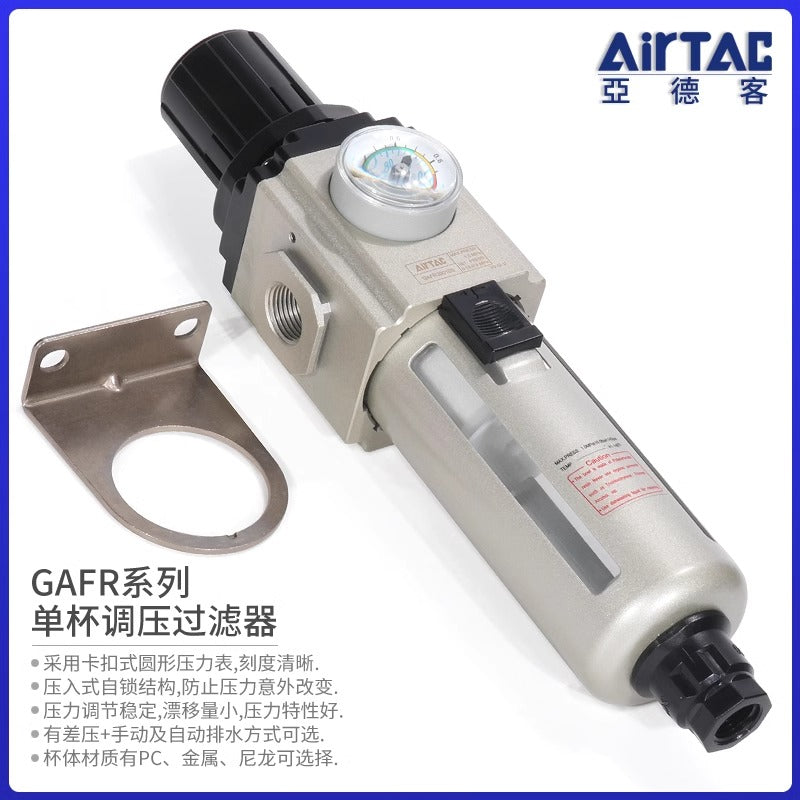

About the Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW
The GAFR20006ALJNW is a filter and regulator combined into one compact body, saving rail space versus separate units. It handles a 1/8in port and delivers a lower pressure range of 0.15-0.4 MPa (20-58 psi) with a 5 um element for finer filtration.
This model uses a PC bowl and an automatic drain, so it suits applications where regular manual draining is inconvenient. At 290 g, it is a lightweight unit for small jigs or single actuators, and the 25 cc condensate bowl indicates its service capacity.
Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW Technical Specifications
| Model | Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW |
|---|---|
| Series | GAFR200 filter & regulator |
| Port size | 1/8" (PT thread) |
| Filtering grade | 5 µm |
| Pressure range | 0.15 - 0.4 MPa (20 - 58 psi) |
| Type | Lower pressure |
| Bowl material | PC |
| Drain type | Automatic drain |
| Fluid | Air |
|---|---|
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Capacity of drain bowl | 25 cc |
| Bracket | Not included (J) |
| Weight | 290 g |
Specifications follow the official AirTAC GAFR catalogue (pages 235-236). Air must not freeze in the unit. No gauge is supplied with this model — the gauge connection on a GAFR200 is 1/8" if you add one. This unit filters and regulates only; it does not add lubrication.
Model Code: Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW
| GAFR200 | GA200 series filter & regulator — sets the port range, drain-bowl capacity and weight. |
|---|---|
| (blank) | Bowl material: PC. Available on this body: PC (blank), Metal (C), Nylon (N). |
| 06 | Port size 1/8". This body offers 06 = 1/8", 08 = 1/4". |
| A | Drain: Automatic drain. |
| L | Lower pressure type — 0.15 - 0.4 MPa (20 - 58 psi). This body offers Standard (S) or Lower pressure (L). |
| J | No bracket (J) — supplied without the mounting bracket. |
| N | No pressure gauge; 1/8" gauge connection. |
| W | Filtering grade 5 µm. |
| (blank) | PT thread; gauge scale MPa / psi. |
| (blank) | No reverse-flow valve. |
The filter and the regulator are ONE body here — there is no separate GAF filter or GAR regulator part to assemble. Need lubrication downstream too? Add a lubricator by ordering the matching GAFC200-06 F.R.L. combination instead.
Size Class & Flow Envelope
- GAFR2001/8"-1/4" · 2000 L/min
- GAFR3001/4"-1/2" · 3500 L/min
- GAFR4003/8"-1/2" · 7000 L/min
- GAFR5003/4" · 8000 L/min
- GAFR6003/4"-1" · 12000 L/min
Figures are the end of the flow curve plotted in the AirTAC catalogue at 0.7 MPa inlet pressure — a sizing envelope for comparing bodies, not a rated flow. Read the catalogue curve for a real duty point. Outlet pressure falls as flow rises, so size a body with headroom above your peak demand.
| This model | GAFR200 · 1/8" · curve to 2000 L/min |
|---|---|
| One size up | GAFR300 (curve to 3500 L/min) |
| Add a lubricator | GAFC200-06 (F.R.L. combination) |
Where the Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW Is Used
Precision Fixture
Feed a single pneumatic clamp or a small positioning fixture where a stable lower pressure protects delicate parts from over-force.
Lab Air Supply
Provide filtered air to a bench-top instrument or a small test rig that needs fine particle removal and a capped pressure.
Maintenance Station
Use on a portable service cart for occasional air tools, where the automatic drain reduces upkeep between uses.
Is the Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW the Right Air-Prep Unit?
Choose the GAFR200 body for small-bore applications; its 2000 L/min flow envelope at 0.7 MPa inlet is the smallest in the series. The PC bowl is the standard build choice, while the automatic drain (A) handles wet lines without operator intervention. The L type limits you to 0.4 MPa, so confirm your system never needs more; the missing bracket (J) suits panel mounts, and the absent gauge (N) leaves a 1/8in connection for adding one later. The 5 um element traps finer particles than the standard 40 um, but requires more frequent service. If you need lubrication downstream, order the GAFC200-06 combination instead. Note that 1.0 MPa max supply leaves about 0.6 MPa above the 0.4 MPa top of the range.
Quick checklist
- ✓ Body size for your peak flow (1/8" here)
- ✓ Standard 0.9 MPa or lower-pressure 0.4 MPa
- ✓ Bowl material: PC (blank), Metal (C), Nylon (N)
- ✓ Drain: semi-auto + manual, or automatic
- ✓ Element 40 µm or 5 µm
- ✓ Bracket kept or removed (J); add a lubricator = GAFC

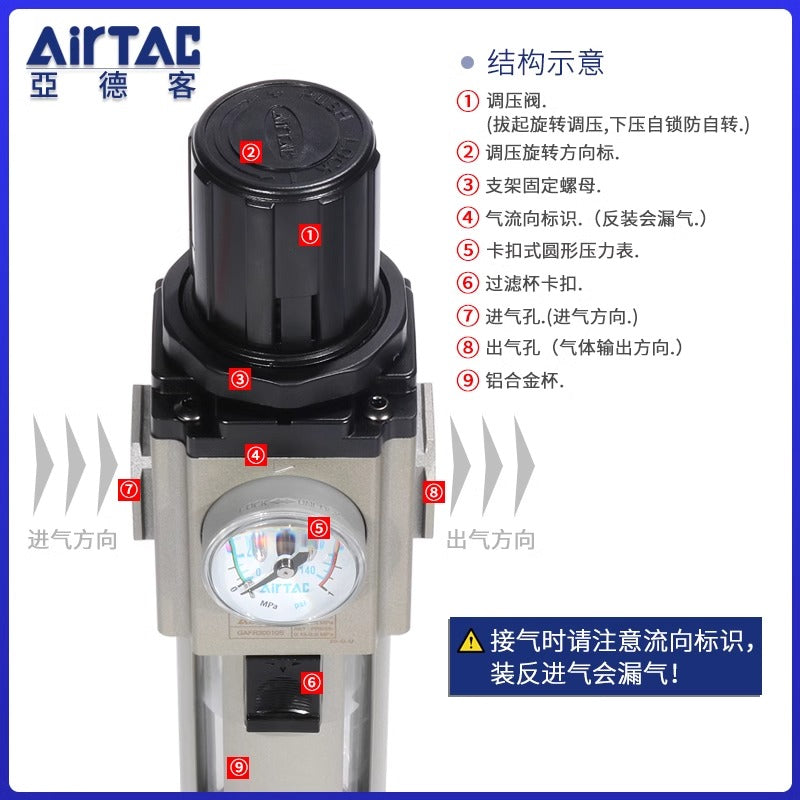

Installation & Maintenance Notes
- check Install with the airflow arrow: IN to OUT, gauge/knob accessible.
- check Keep inlet pressure at or below 1.0 MPa (145 psi).
- check Set pressure with the pressed-in self-locking knob; pull to adjust, press to lock.
- check Drain condensate before the 25 cc bowl fills.
- check Keep the unit above freezing (-5 to +70 °C, unfreeze).
- check Support the 290 g unit on its bracket, not on the tubing.
This is a filter and regulator only — it delivers filtered, pressure-set air with no added oil. If a downstream tool needs lubrication, add a separate lubricator or order the GAFC200-06 combination; do not expect an oil mist from this unit.
Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNW FAQ
It operates from 0.15-0.4 MPa (20-58 psi), with a maximum pressure of 1.0 MPa (145 psi) and proof pressure of 1.5 MPa (215 psi). The temperature range is -5 to 70 C, the drain bowl holds 25 cc, and the unit weighs 290 g.
The N code means no gauge is supplied, leaving a 1/8in connection if you add one later. The J code omits the mounting bracket, which is useful for panel mounts or existing brackets. Both are deliberate ordering choices to reduce cost and complexity.
