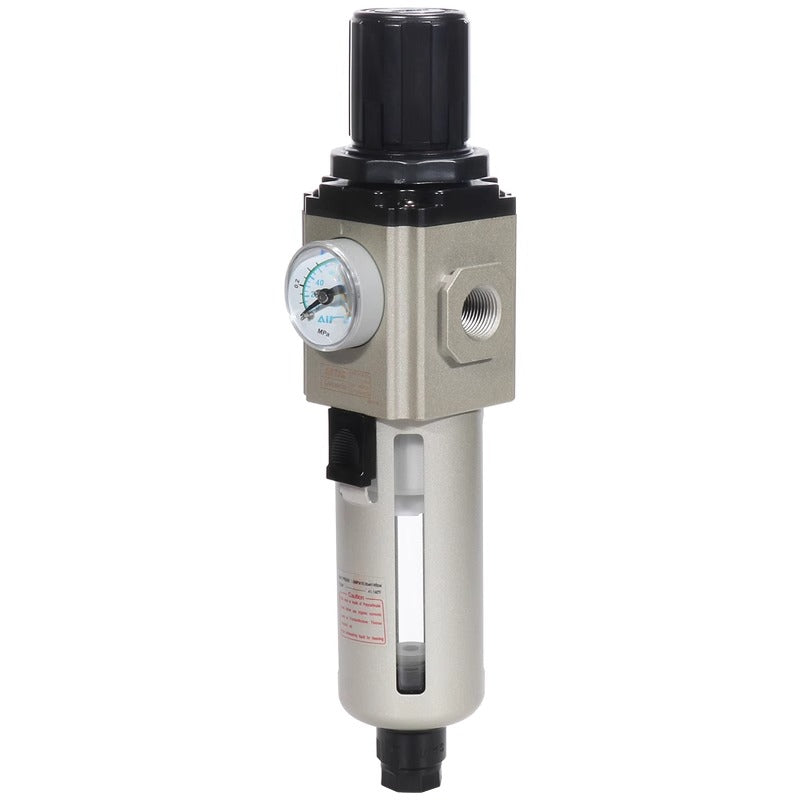

Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK
The AirTAC Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK is a genuine two-in-one filter & regulator — a diversion-type water/particulate filter and a balanced pressure regulator built into ONE body. It has 1/8" ports, a 5 µm filter element and regulates 0.15 - 0.4 MPa (20 - 58 psi). It has no lubricator, so it adds no oil to the airflow.
- TypeFilter & regulator
- Port size1/8"
- Pressure range0.15 - 0.4 MPa (20 - 58 psi)
- Filtering grade5 µm
- Bowl materialPC
- Drainautomatic
- Pressure gaugeNot fitted
- Weight290 g
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.

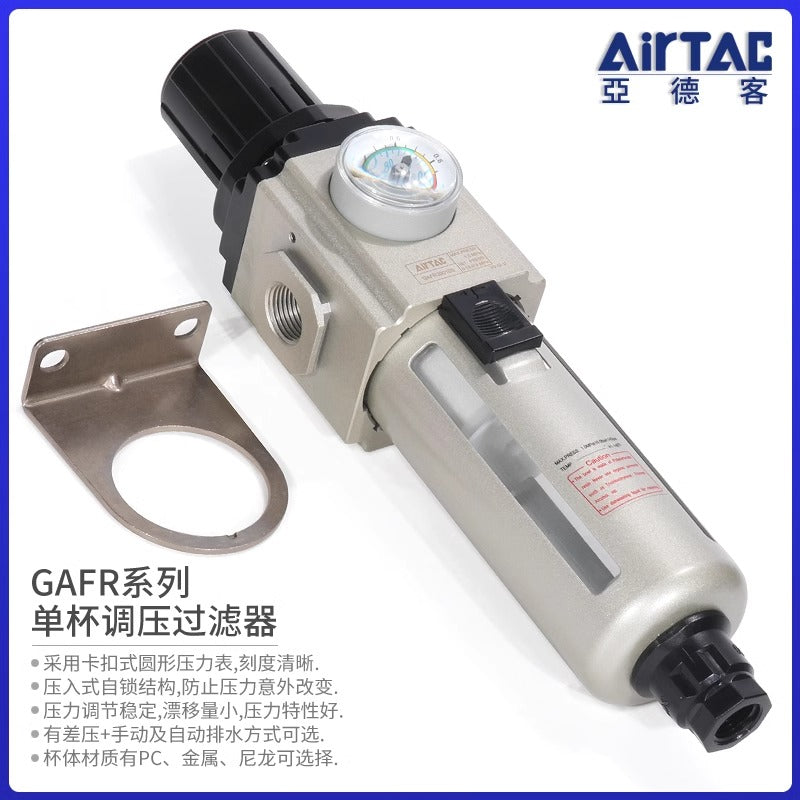

About the Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK
The GAFR20006ALJNWK is a compact filter & regulator combining both functions in one body, saving rail space and reducing potential leak points versus separate units. It delivers lower-pressure regulation from 0.15 to 0.4 MPa (20-58 psi) and filters air to 5 um, making it suitable for sensitive equipment.
This model features an automatic drain, a PC bowl, and a reverse-flow valve fitted as an ordering difference. It weighs 290 g and has a 25 cc condensate bowl, with its flow curve plotted to 2000 L/min at 0.7 MPa inlet for sizing reference.
Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK Technical Specifications
| Model | Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK |
|---|---|
| Series | GAFR200 filter & regulator |
| Port size | 1/8" (PT thread) |
| Filtering grade | 5 µm |
| Pressure range | 0.15 - 0.4 MPa (20 - 58 psi) |
| Type | Lower pressure |
| Bowl material | PC |
| Drain type | Automatic drain |
| Fluid | Air |
|---|---|
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Capacity of drain bowl | 25 cc |
| Bracket | Not included (J) |
| Weight | 290 g |
Specifications follow the official AirTAC GAFR catalogue (pages 235-236). Air must not freeze in the unit. No gauge is supplied with this model — the gauge connection on a GAFR200 is 1/8" if you add one. This unit filters and regulates only; it does not add lubrication.
Model Code: Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK
| GAFR200 | GA200 series filter & regulator — sets the port range, drain-bowl capacity and weight. |
|---|---|
| (blank) | Bowl material: PC. Available on this body: PC (blank), Metal (C), Nylon (N). |
| 06 | Port size 1/8". This body offers 06 = 1/8", 08 = 1/4". |
| A | Drain: Automatic drain. |
| L | Lower pressure type — 0.15 - 0.4 MPa (20 - 58 psi). This body offers Standard (S) or Lower pressure (L). |
| J | No bracket (J) — supplied without the mounting bracket. |
| N | No pressure gauge; 1/8" gauge connection. |
| W | Filtering grade 5 µm. |
| (blank) | PT thread; gauge scale MPa / psi. |
| K | Reverse-flow (reflux) valve attached. |
The filter and the regulator are ONE body here — there is no separate GAF filter or GAR regulator part to assemble. Need lubrication downstream too? Add a lubricator by ordering the matching GAFC200-06 F.R.L. combination instead.
Size Class & Flow Envelope
- GAFR2001/8"-1/4" · 2000 L/min
- GAFR3001/4"-1/2" · 3500 L/min
- GAFR4003/8"-1/2" · 7000 L/min
- GAFR5003/4" · 8000 L/min
- GAFR6003/4"-1" · 12000 L/min
Figures are the end of the flow curve plotted in the AirTAC catalogue at 0.7 MPa inlet pressure — a sizing envelope for comparing bodies, not a rated flow. Read the catalogue curve for a real duty point. Outlet pressure falls as flow rises, so size a body with headroom above your peak demand.
| This model | GAFR200 · 1/8" · curve to 2000 L/min |
|---|---|
| One size up | GAFR300 (curve to 3500 L/min) |
| Add a lubricator | GAFC200-06 (F.R.L. combination) |
Where the Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK Is Used
Precision jig
Feed a single small jig or fixture that needs clean, regulated air at a stable low pressure without taking up much rail space.
Lab instrument
Supply a bench-top pneumatic instrument requiring 5 um filtration and a controlled 0.15-0.4 MPa input from a compact source.
Light assembly
Power a small hand tool or single-acting actuator on an assembly bench where the automatic drain reduces maintenance checks.
Is the Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK the Right Air-Prep Unit?
Choose the GAFR200 body for 1/8in ports and light-duty applications where a 290 g unit is appropriate. The lower-pressure type (L) tops out at 0.4 MPa, so verify your system never needs more than this. The 5 um element traps finer particles but requires more frequent service than the standard 40 um. This model omits the mounting bracket (J) and the gauge (N); the gauge connection is 1/8in if you add one later. The automatic drain suits unattended operation, and the PT thread pairs with an MPa/psi gauge scale. The reverse-flow valve is fitted per the K code. If downstream lubrication is needed, order the matching GAFC200-06 combination instead. With a 1.0 MPa max supply, you have about 0.6 MPa of headroom above this unit's 0.4 MPa regulated top.
Quick checklist
- ✓ Body size for your peak flow (1/8" here)
- ✓ Standard 0.9 MPa or lower-pressure 0.4 MPa
- ✓ Bowl material: PC (blank), Metal (C), Nylon (N)
- ✓ Drain: semi-auto + manual, or automatic
- ✓ Element 40 µm or 5 µm
- ✓ Bracket kept or removed (J); add a lubricator = GAFC

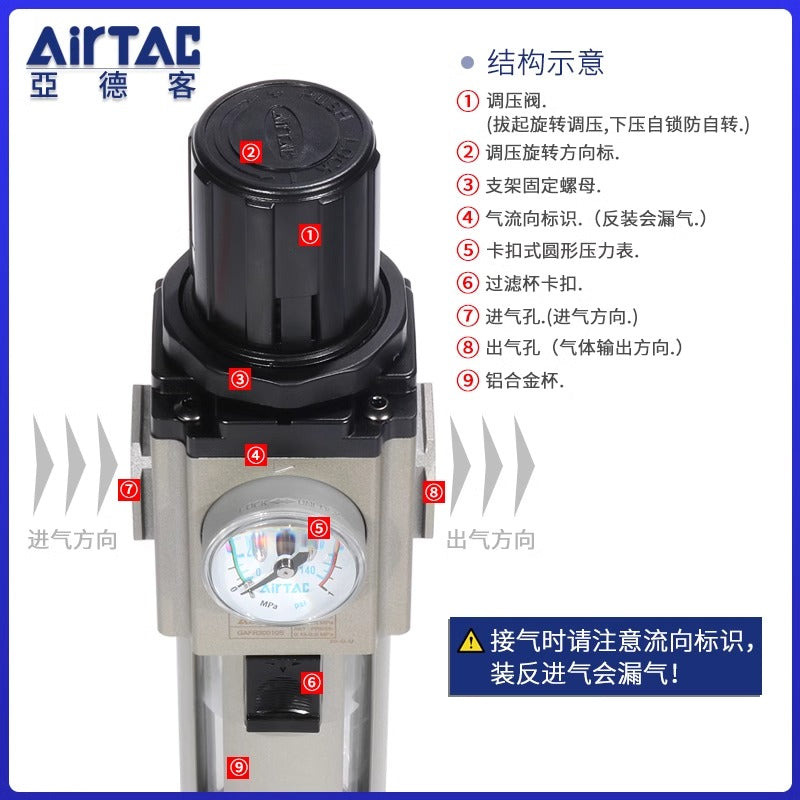

Installation & Maintenance Notes
- check Install with the airflow arrow: IN to OUT, gauge/knob accessible.
- check Keep inlet pressure at or below 1.0 MPa (145 psi).
- check Set pressure with the pressed-in self-locking knob; pull to adjust, press to lock.
- check Drain condensate before the 25 cc bowl fills.
- check Keep the unit above freezing (-5 to +70 °C, unfreeze).
- check Support the 290 g unit on its bracket, not on the tubing.
This is a filter and regulator only — it delivers filtered, pressure-set air with no added oil. If a downstream tool needs lubrication, add a separate lubricator or order the GAFC200-06 combination; do not expect an oil mist from this unit.
Airtac GAFR Adjustable Filter Regulator GAFR20006ALJNWK FAQ
This filter & regulator has a 1/8in port, a lower-pressure range of 0.15-0.4 MPa (20-58 psi), a maximum pressure of 1.0 MPa (145 psi), and a proof pressure of 1.5 MPa (215 psi). It operates from -5 to 70 C, has a 25 cc drain bowl, and weighs 290 g.
The N code after the port means no gauge is supplied; the 1/8in gauge connection is there if you add one. The J code means the mounting bracket is omitted, so you must use an existing bracket or panel mount. This reduces cost when those accessories are already in place.
