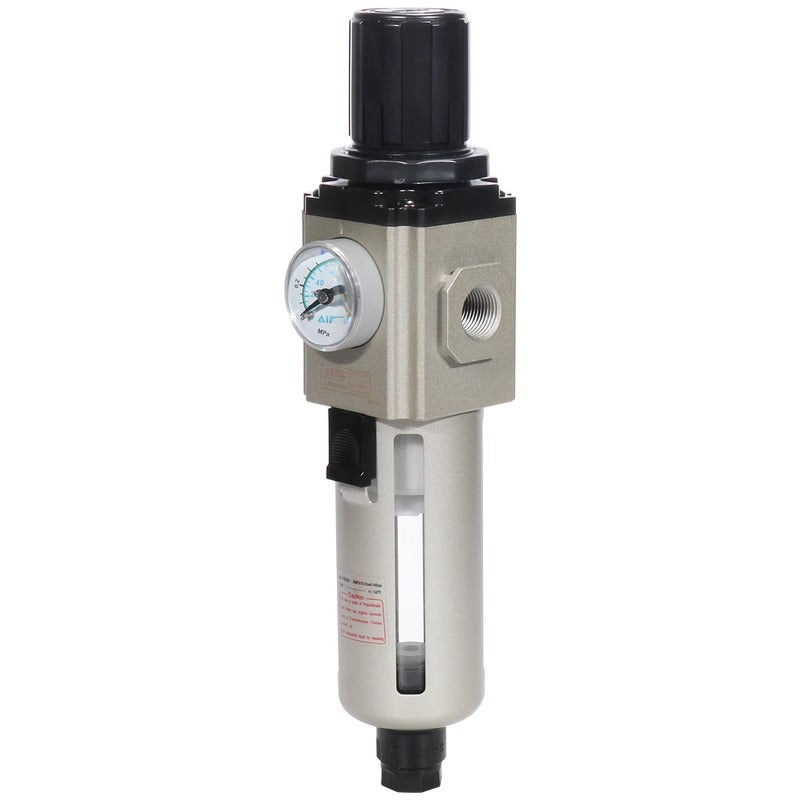

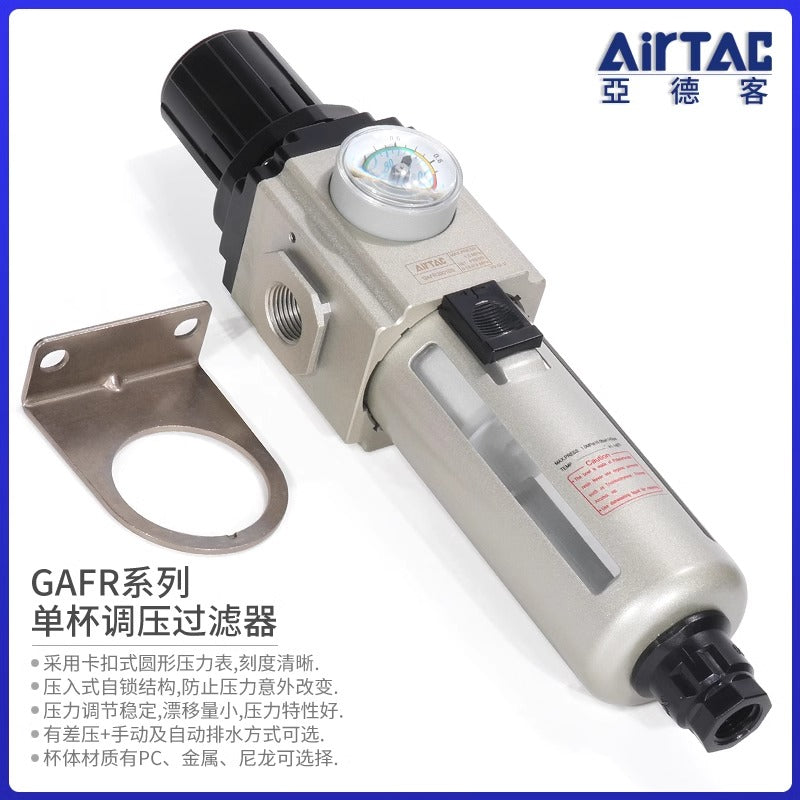

Airtac GAFR Adjustable Filter Regulator GAFR20006ALNK
2、Press-in self-locking mechanism prevents unintended pressure setting deviations caused by external interference;
3、Balanced pressure regulation mechanism ensures stable adjustment with minimal drift and superior pressure characteristics;
4、Available in standard configuration and low-pressure variant (maximum adjustable pressure 0.4MPa);
5、Unique vortex-inducing structure optimizes gas rotation for efficient liquid separation and reliable solid particle filtration;
6、Selectable filtration precision: 5μm or 40μm;
7、Dual drainage options: differential pressure manual drainage or automatic drainage systems;
8、Bowl materials include PC, metal, and nylon for environmental adaptability;
9、Optional fixed bracket mounting configuration available.
Category: Regulating Filters , Brand: AirTAC , Series: GAFR
AirTAC GAFR20006ALNK Regulating Filter Specifications
- Model: GAFR20006ALNK
- Type: Combined air filter regulator with lubricator (FRL unit)
- Port size: PT1/4 (BSP 1/4)
- Operating pressure: 0.05–1.0 MPa
- Max pressure: 1.5 MPa
- Filtering accuracy: 5 μm (with auto-drain)
- Flow capacity: 2,500 L/min (ANR)
- Pressure adjustment range: 0.05–0.85 MPa
- Lubricator oil capacity: 130 cm³
- Weight: 680 g ±5%
- Dimensions: 156mm(H) × 80mm(W) × 105mm(D)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: NBR & polycarbonate
- Temperature range: -5℃ to 60℃ (non-freezing)
- Drain type: Semi-automatic plunger
- Pressure gauge: Included (0-1.0 MPa scale)
- Mounting: Bracket optional (standard 22mm panel cutout)
Triple-function pneumatic component combining precision filtration (5μm particulate removal), pressure regulation (±0.02 MPa stability), and adjustable lubrication (2-3 drops/min oil mist). Features anti-corrosion treatment and impact-resistant sight glass. The T-handle design enables tool-free adjustment with positive locking mechanism.
- Pneumatic tool stations requiring clean lubricated air
- Production line actuator clusters in automotive assembly
- Packaging machinery with sensitive pneumatic valves
- Food processing equipment (oil-free version available)
- CNC machine tool pneumatic systems
Maintenance protocol:
Drain condensate daily via push-button release. Replace filter element every 2,000 operating hours.
Lubricator refill should use ISO VG32 turbine oil. Install vertically ±15° for proper drainage.
| Property | Property Value |
|---|---|
| sku | GAFR20006ALNK |
| Port Size | PT1/8 |
