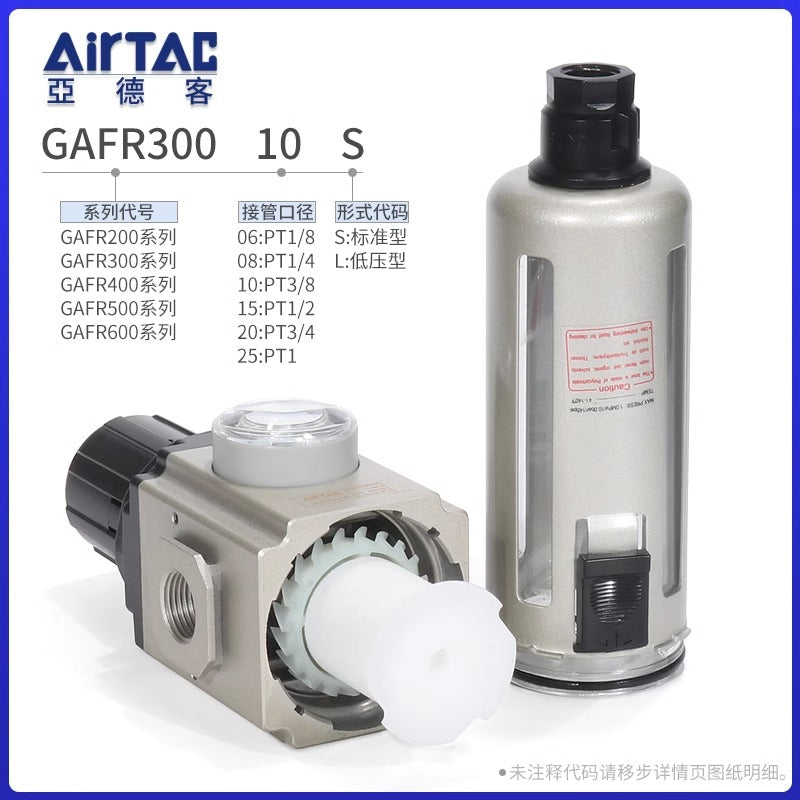

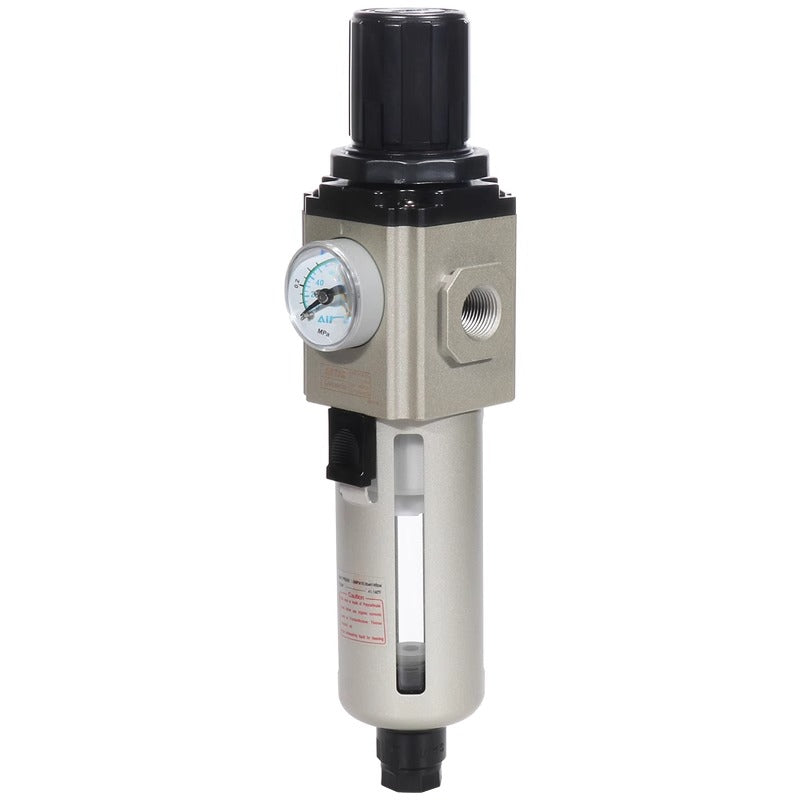

Airtac GAFR Adjustable Filter Regulator GAFR20006ALNWK
2、Press-in self-locking mechanism prevents unintended pressure setting deviations caused by external interference;
3、Balanced pressure regulation mechanism ensures stable adjustment with minimal drift and superior pressure characteristics;
4、Available in standard configuration and low-pressure variant (maximum adjustable pressure 0.4MPa);
5、Unique vortex-inducing structure optimizes gas rotation for efficient liquid separation and reliable solid particle filtration;
6、Selectable filtration precision: 5μm or 40μm;
7、Dual drainage options: differential pressure manual drainage or automatic drainage systems;
8、Bowl materials include PC, metal, and nylon for environmental adaptability;

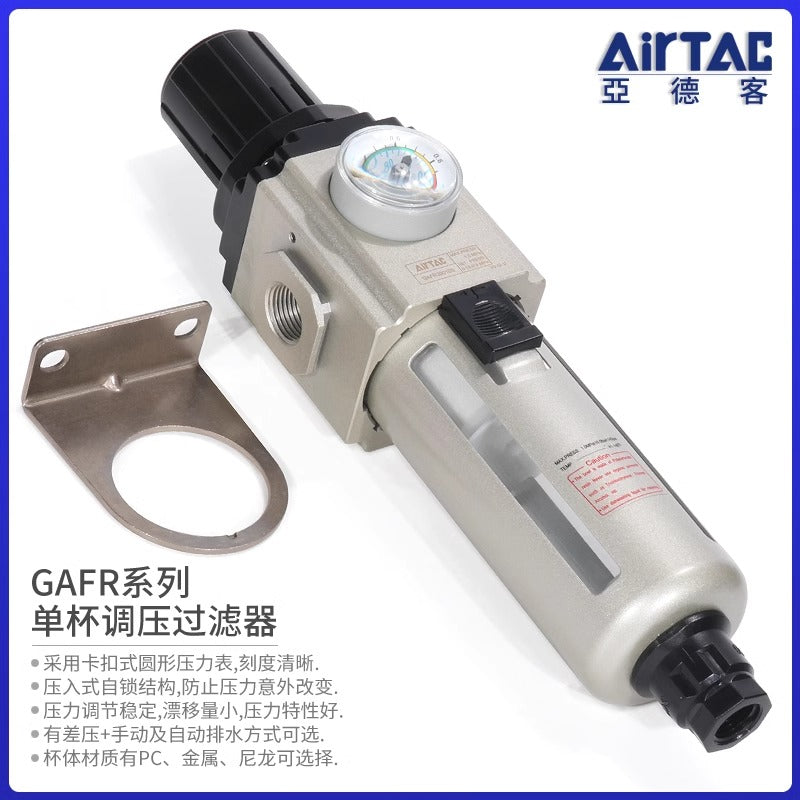

9、Optional fixed bracket mounting configuration available.
Category: Regulating Filters , Brand: AirTAC , Series: GAFR
AirTAC GAFR20006ALNWK Regulating Filter Technical Details
- Model: GAFR20006ALNWK
- Type: Combined pressure regulator + 40μm filter
- Port size: PT1/4 (BSPP thread)
- Operating pressure: 0.05–1.0 MPa
- Maximum flow: 2000 NL/min
- Filtering grade: 40μm (5μm optional with different element)
- Body material: Aluminum alloy (anodized)
- Seal material: NBR + PUR composite
- Temperature range: -5℃ to 60℃ (with anti-freeze kit: -20℃)
- Drain type: Manual/Auto drain optional (default manual)
- Pressure gauge: Built-in 1/8" dial gauge (0-1.6 MPa scale)
- Weight: 0.68 kg ±2%
- Dimensions: 130mm(H) × 60mm(W) × 60mm(D)
- Protection rating: IP54 (splash resistant)
Compact combination unit integrating precision air filtration and pressure stabilization. Features dual-chamber design with visible bowl and twist-lock element replacement. The pressure adjustment knob includes torque-limiting mechanism to prevent accidental setting changes. Bowl guard meets ISO 4414 safety standards.
- Pneumatic tool air supply conditioning
- Robotic arm end-effector control systems
- Packaging machine air circuit protection
- Dental chair pneumatic systems
- Automotive assembly line tool stations
- Food processing air knife controls
Installation & Maintenance:

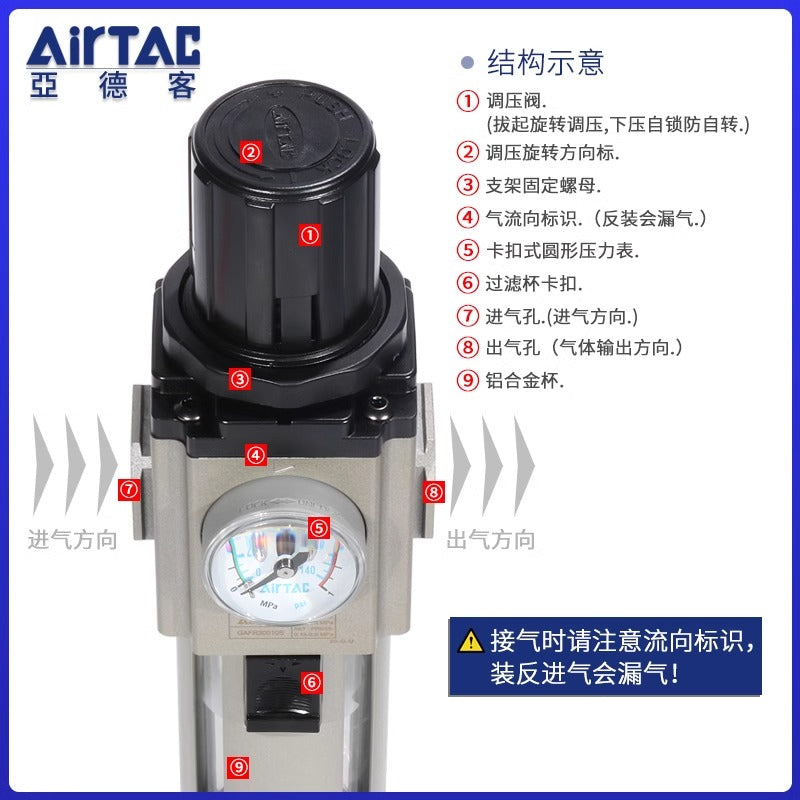

Mount vertically with arrow aligned to airflow direction. Drain condensate daily in humid environments.
Replace filter element every 2,000 operational hours or when pressure drop exceeds 0.05MPa.
Use locking pliers on hex base (not bowl) during maintenance.
- Pull up adjustment knob to unlock
- Turn clockwise to increase pressure (watch gauge)
- Push down knob to lock setting
- Check for leaks with soap solution
| Property | Property Value |
|---|---|
| sku | GAFR20006ALNWK |
| Port Size | PT1/8 |
