Airtac GAFR Adjustable Filter Regulator GAFR20006ASJNWK
2、Press-in self-locking mechanism prevents unintended pressure setting deviations caused by external interference;
3、Balanced pressure regulation mechanism ensures stable adjustment with minimal drift and superior pressure characteristics;
4、Available in standard configuration and low-pressure variant (maximum adjustable pressure 0.4MPa);
5、Unique vortex-inducing structure optimizes gas rotation for efficient liquid separation and reliable solid particle filtration;
6、Selectable filtration precision: 5μm or 40μm;
7、Dual drainage options: differential pressure manual drainage or automatic drainage systems;
8、Bowl materials include PC, metal, and nylon for environmental adaptability;
9、Optional fixed bracket mounting configuration available.
Category: Regulating Filters , Brand: AirTAC , Series: GAFR

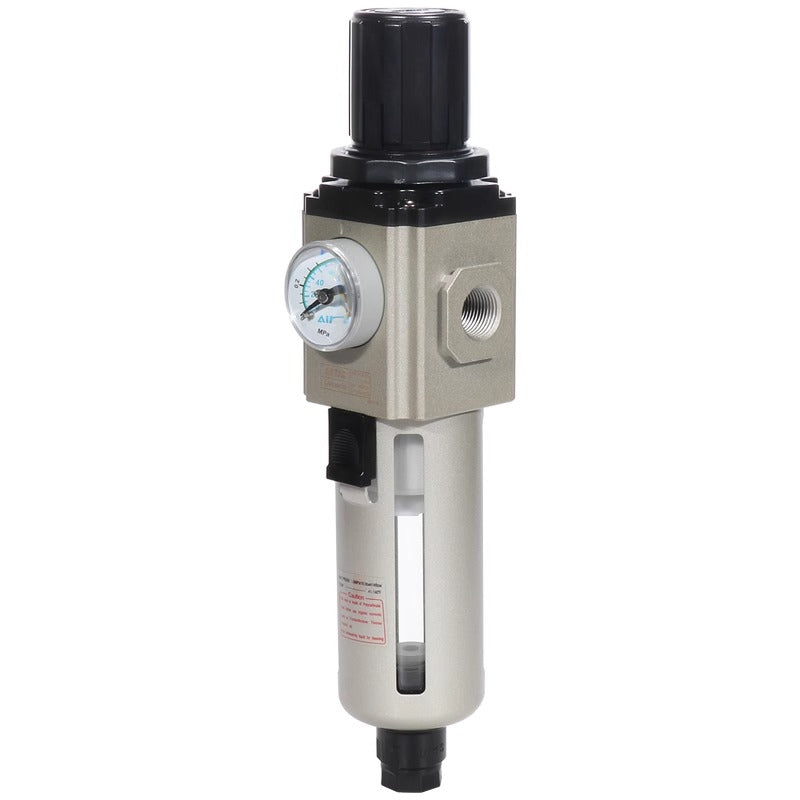

AirTAC GAFR20006ASJNWK Pressure Regulating Filter Specifications
- Model: GAFR20006ASJNWK
- Series: GAFR Compact Combination Unit
- Port size: PT1/4 (G1/4 optional)
- Body material: Reinforced polycarbonate
- Filter element: 5μm sintered stainless steel (replaceable)
- Operating pressure range: 0.05–0.9 MPa
- Max flow capacity: 2000 L/min (ANR)
- Pressure regulation range: 0.05–0.85 MPa
- Pressure gauge: Built-in 40mm dial (0-1.0 MPa scale)
- Drain type: Automatic drain cup with manual override
- Temperature range: 0℃ to 60℃ (non-freezing)
- Seal material: Oil-resistant NBR
- Weight: 0.58 kg
- Dimensions: 98mm(H) × 70mm(W) × 68mm(D)
- Thread torque: 15-20 N·m (port connections)
- Pressure loss: ≤0.05 MPa at rated flow
- Vibration resistance: 2.5mm amplitude at 10-55Hz
Integrated air preparation unit combining precision filtration (99.9% 5μm particles removal) and stepless pressure regulation. Features a tamper-proof adjustment knob with lockable setting and visible pressure indication. The transparent bowl allows visual contamination monitoring, with safety guard against bowl ejection under pressure.
- Pneumatic tool air supply stations
- CNC machine pneumatic circuits
- Food packaging line actuator control
- Semiconductor manufacturing equipment
- Dental chair pneumatic systems
- Automated assembly line tooling
Installation & Maintenance:
Install vertically with arrow marking aligned to airflow direction.
Replace filter element every 6 months (2000h) under normal conditions.
Drain cup requires weekly manual purging in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | GAFR20006ASJNWK |
| Port Size | PT1/8 |
