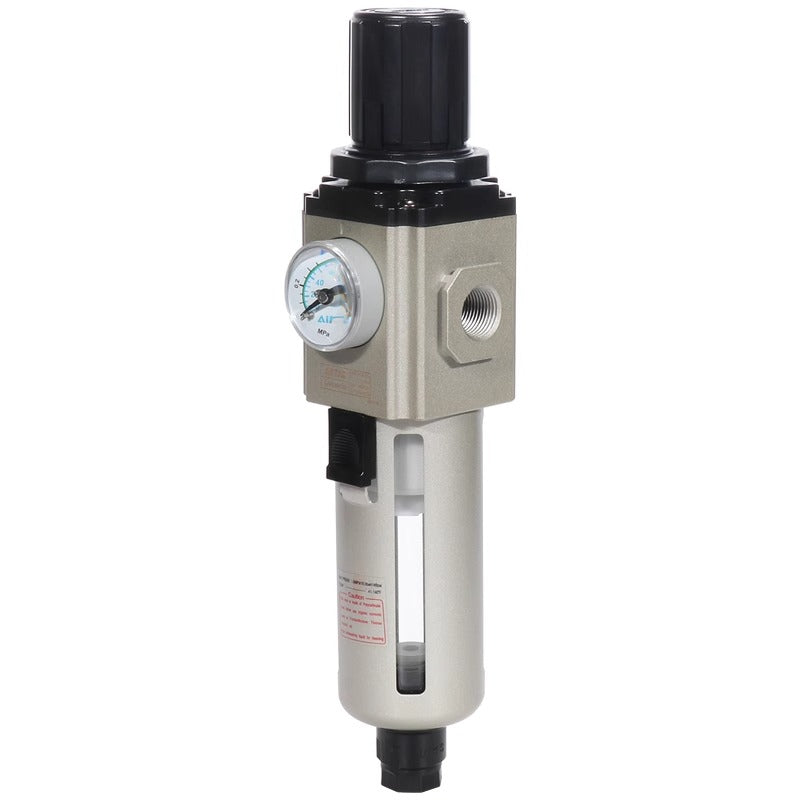

Airtac GAFR Adjustable Filter Regulator GAFR20006ASJW
2、Press-in self-locking mechanism prevents unintended pressure setting deviations caused by external interference;
3、Balanced pressure regulation mechanism ensures stable adjustment with minimal drift and superior pressure characteristics;
4、Available in standard configuration and low-pressure variant (maximum adjustable pressure 0.4MPa);
5、Unique vortex-inducing structure optimizes gas rotation for efficient liquid separation and reliable solid particle filtration;
6、Selectable filtration precision: 5μm or 40μm;
7、Dual drainage options: differential pressure manual drainage or automatic drainage systems;
8、Bowl materials include PC, metal, and nylon for environmental adaptability;

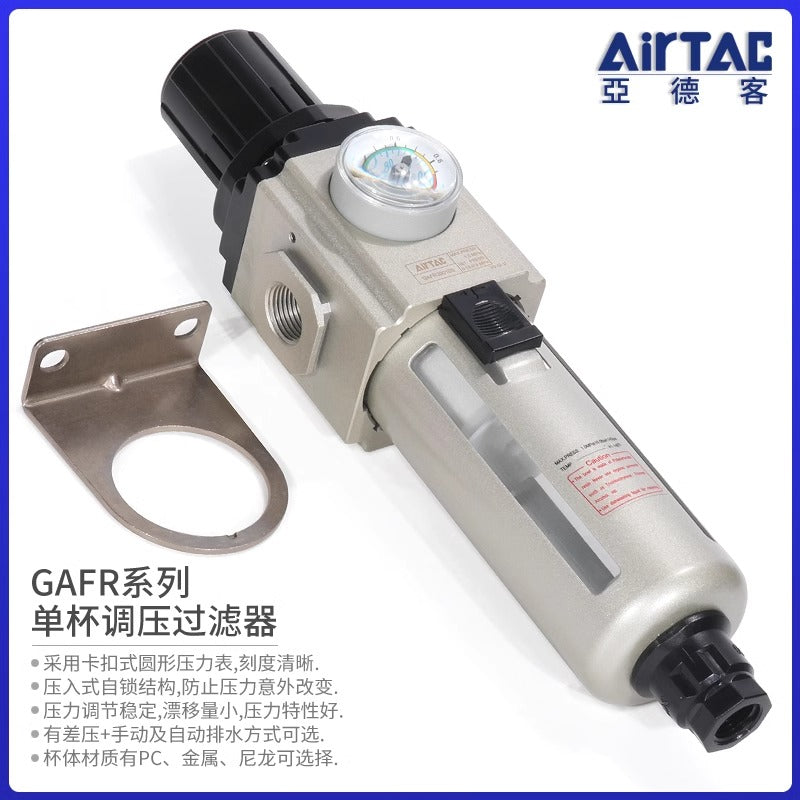

9、Optional fixed bracket mounting configuration available.
Category: Regulating Filters , Brand: AirTAC , Series: GAFR
AirTAC GAFR20006ASJW Filter Regulator Comprehensive Specifications
- Model: GAFR20006ASJW
- Type: 3-in-1 Combination Unit (Filter + Regulator + Lubricator)
- Port size: PT1/4 (BSPP thread)
- Filtration grade: 5 μm (replaceable sintered bronze element)
- Operating pressure range: 0.05–0.95 MPa
- Maximum flow capacity: 2,500 L/min (ANR)
- Pressure regulation range: 0.05–0.85 MPa
- Oil cup capacity: 150 cm³ (polycarbonate bowl)
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (nitrile rubber)
- Temperature range: -5℃ to 60℃ (non-freezing conditions)
- Weight: 520 g ±3% (including bowl)
- Dimensions: 120mm(H) × Φ50mm(Body) × 40mm(Installation pitch)
- Protection rating: IP42 (bowl protection)
- Mounting: Panel mount with M5 fasteners or direct pipe mounting
Triple-function pneumatic conditioning unit combining micron-level filtration, precision pressure regulation, and adjustable lubrication. Features a break-resistant transparent bowl with anti-static coating and safety guard. The pressure gauge (0.1 MPa gradations) includes a zero-lock mechanism to prevent accidental adjustment.
- Pneumatic tool stations requiring oil-mist lubrication
- CNC machine air preparation systems
- Packaging line actuator control clusters
- Robotic arm end-effector pneumatic circuits
- Semiconductor manufacturing cleanroom environments
Maintenance protocol:
Drain condensate daily via bottom exhaust valve. Replace filter element every 2,000 operational hours or when pressure drop exceeds 0.05 MPa. Use ISO VG32 turbine oil for lubrication. Bowl torque limit: 2.5 N·m maximum during assembly.
| Property | Property Value |
|---|---|
| sku | GAFR20006ASJW |
| Port Size | PT1/8 |
