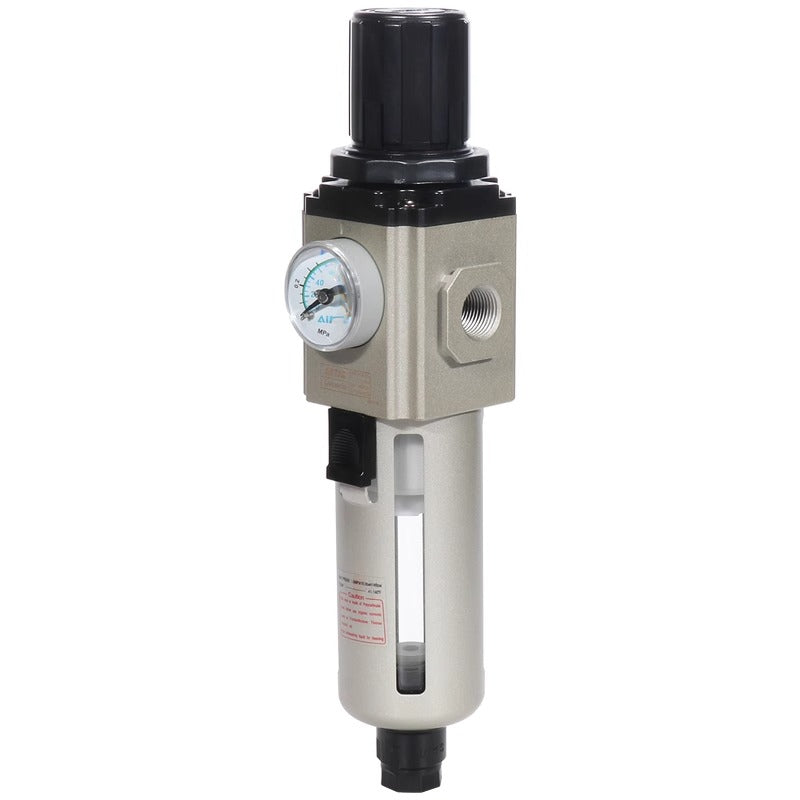

Airtac GAFR Adjustable Filter Regulator GAFR20006ASK
The AirTAC Airtac GAFR Adjustable Filter Regulator GAFR20006ASK is a genuine two-in-one filter & regulator — a diversion-type water/particulate filter and a balanced pressure regulator built into ONE body. It has 1/8" ports, a 40 µm filter element and regulates 0.15 - 0.9 MPa (20 - 130 psi). It has no lubricator, so it adds no oil to the airflow.
- TypeFilter & regulator
- Port size1/8"
- Pressure range0.15 - 0.9 MPa (20 - 130 psi)
- Filtering grade40 µm
- Bowl materialPC
- Drainautomatic
- Pressure gaugeCircular, MPa / psi
- Weight290 g
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac GAFR Adjustable Filter Regulator GAFR20006ASK

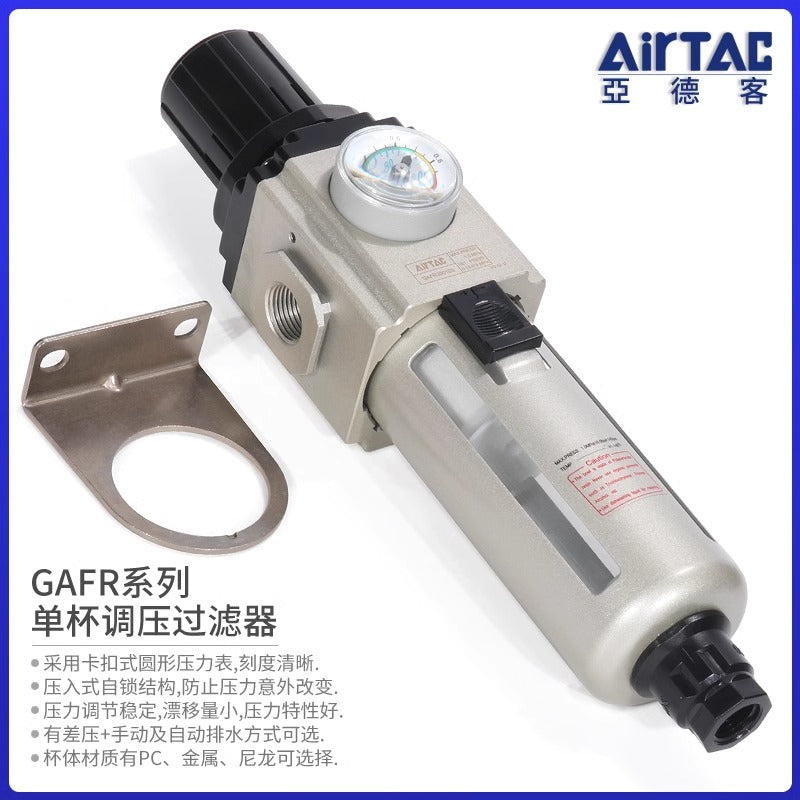

The GAFR20006ASK is a filter and regulator combined into a single body, saving space on compact machines. It handles 1/8in ports and delivers a standard pressure range of 0.15-0.9 MPa (20-130 psi) with a 40 um element.
A diversion structure spins incoming air to separate liquid water and solid particles into the 25 cc drain bowl. The pressed-in self-locking knob resists set-pressure drift from vibration, keeping the outlet steady.
Airtac GAFR Adjustable Filter Regulator GAFR20006ASK Technical Specifications
| Model | Airtac GAFR Adjustable Filter Regulator GAFR20006ASK |
|---|---|
| Series | GAFR200 filter & regulator |
| Port size | 1/8" (PT thread) |
| Filtering grade | 40 µm |
| Pressure range | 0.15 - 0.9 MPa (20 - 130 psi) |
| Type | Standard |
| Bowl material | PC |
| Drain type | Automatic drain |
| Fluid | Air |
|---|---|
| Max. pressure | 1.0 MPa (145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Capacity of drain bowl | 25 cc |
| Bracket | Included |
| Weight | 290 g |
Specifications follow the official AirTAC GAFR catalogue (pages 235-236). Air must not freeze in the unit. The fitted circular gauge reads in MPa / psi, set by the PT thread code. This unit filters and regulates only; it does not add lubrication.

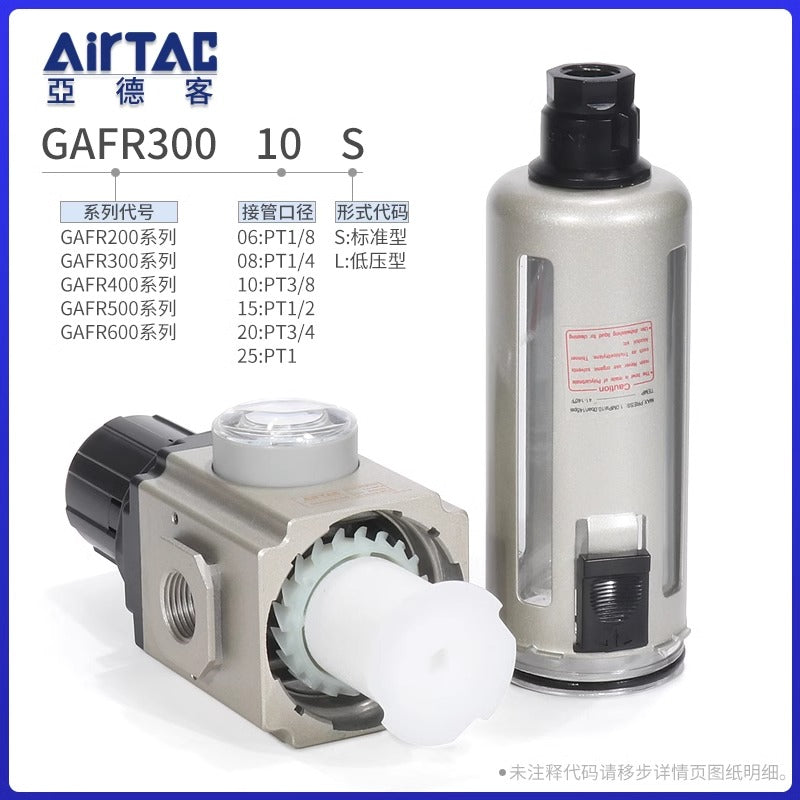

Model Code: Airtac GAFR Adjustable Filter Regulator GAFR20006ASK
| GAFR200 | GA200 series filter & regulator — sets the port range, drain-bowl capacity and weight. |
|---|---|
| (blank) | Bowl material: PC. Available on this body: PC (blank), Metal (C), Nylon (N). |
| 06 | Port size 1/8". This body offers 06 = 1/8", 08 = 1/4". |
| A | Drain: Automatic drain. |
| S | Standard type — 0.15 - 0.9 MPa (20 - 130 psi). This body offers Standard (S) or Lower pressure (L). |
| (blank) | Mounting bracket included. |
| (blank) | Circular pressure gauge fitted. |
| (blank) | Filtering grade 40 µm. |
| (blank) | PT thread; gauge scale MPa / psi. |
| K | Reverse-flow (reflux) valve attached. |
The filter and the regulator are ONE body here — there is no separate GAF filter or GAR regulator part to assemble. Need lubrication downstream too? Add a lubricator by ordering the matching GAFC200-06 F.R.L. combination instead.
Size Class & Flow Envelope
- GAFR2001/8"-1/4" · 2000 L/min
- GAFR3001/4"-1/2" · 3500 L/min
- GAFR4003/8"-1/2" · 7000 L/min
- GAFR5003/4" · 8000 L/min
- GAFR6003/4"-1" · 12000 L/min
Figures are the end of the flow curve plotted in the AirTAC catalogue at 0.7 MPa inlet pressure — a sizing envelope for comparing bodies, not a rated flow. Read the catalogue curve for a real duty point. Outlet pressure falls as flow rises, so size a body with headroom above your peak demand.
| This model | GAFR200 · 1/8" · curve to 2000 L/min |
|---|---|
| One size up | GAFR300 (curve to 3500 L/min) |
| Add a lubricator | GAFC200-06 (F.R.L. combination) |
Where the Airtac GAFR Adjustable Filter Regulator GAFR20006ASK Is Used
Compact Jig Actuation
Feed a single pneumatic clamp or small positioning jig on an assembly bench. The 1/8in port and light 290 g body fit tight spaces without overloading the structure.
Bench Tool Supply
Supply a small air tool or blow-off station with filtered, regulated air. The automatic drain clears condensate during intermittent use, reducing maintenance checks.
Lab Air Line
Protect a sensitive laboratory valve or instrument with steady pressure and 40 um filtration. The self-locking knob holds the setpoint despite nearby equipment vibration.
Is the Airtac GAFR Adjustable Filter Regulator GAFR20006ASK the Right Air-Prep Unit?
This GAFR200 size class suits small jigs or single actuators with its 1/8in port and 290 g weight. The automatic drain (A) handles wet lines without manual intervention, while the included bracket simplifies mounting. The 40 um element covers general shop air; the fitted gauge reads MPa/psi.
If the line needs oil downstream, order the matching GAFC200-06 combination instead of this unit. A 1.0 MPa max supply leaves about 0.1 MPa above the 0.9 MPa top of the range, so plan for a supply near the maximum to reach full regulated output.
Quick checklist
- ✓ Body size for your peak flow (1/8" here)
- ✓ Standard 0.9 MPa or lower-pressure 0.4 MPa
- ✓ Bowl material: PC (blank), Metal (C), Nylon (N)
- ✓ Drain: semi-auto + manual, or automatic
- ✓ Element 40 µm or 5 µm
- ✓ Bracket kept or removed (J); add a lubricator = GAFC
Installation & Maintenance Notes

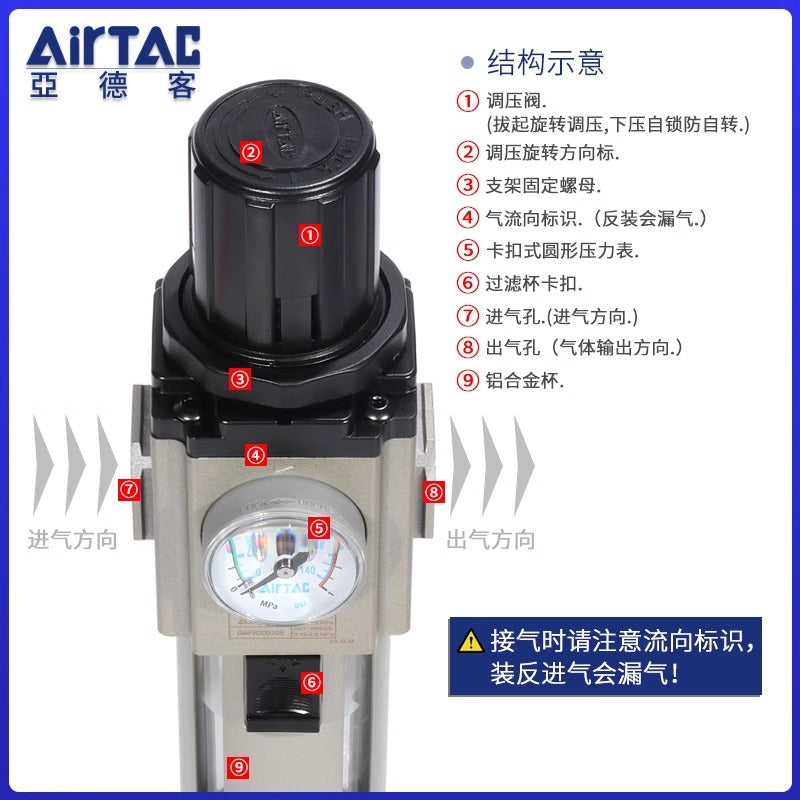

- check Install with the airflow arrow: IN to OUT, gauge/knob accessible.
- check Keep inlet pressure at or below 1.0 MPa (145 psi).
- check Set pressure with the pressed-in self-locking knob; pull to adjust, press to lock.
- check Drain condensate before the 25 cc bowl fills.
- check Keep the unit above freezing (-5 to +70 °C, unfreeze).
- check Support the 290 g unit on its bracket, not on the tubing.
This is a filter and regulator only — it delivers filtered, pressure-set air with no added oil. If a downstream tool needs lubrication, add a separate lubricator or order the GAFC200-06 combination; do not expect an oil mist from this unit.
Airtac GAFR Adjustable Filter Regulator GAFR20006ASK FAQ
Pressure range is 0.15-0.9 MPa (20-130 psi), max pressure 1.0 MPa (145 psi), proof pressure 1.5 MPa (215 psi), temperature range -5 to 70 C. The drain bowl holds 25 cc and the unit weighs 290 g.
The K code indicates the reverse-flow valve is fitted as an ordering difference. The catalogue defers its function to a separate page, so confirm the operational details from the full datasheet before relying on it.
