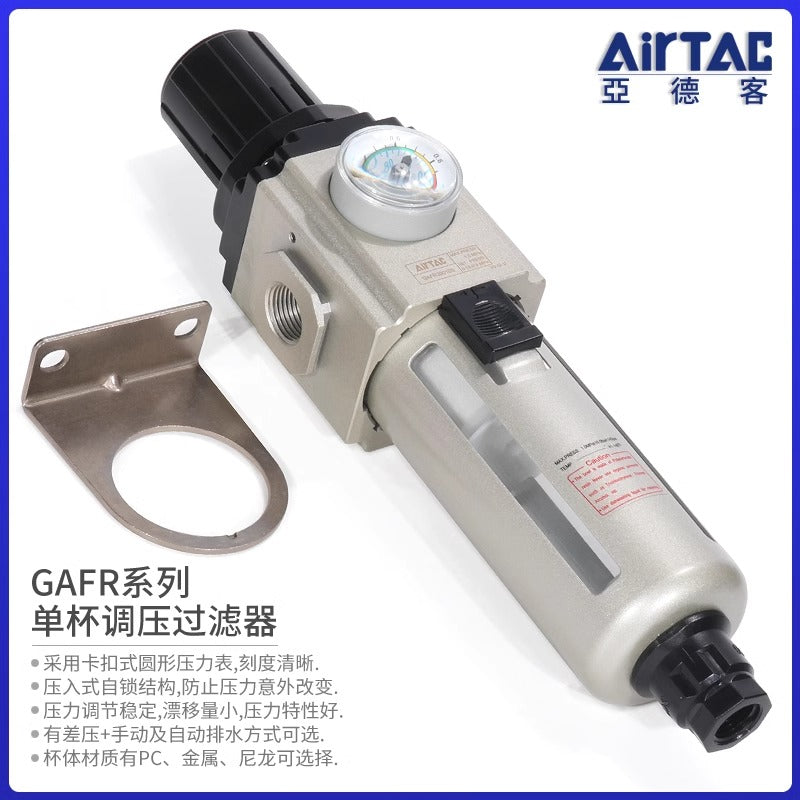

Airtac GAFR Adjustable Filter Regulator GAFR20006ASN
2、Press-in self-locking mechanism prevents unintended pressure setting deviations caused by external interference;
3、Balanced pressure regulation mechanism ensures stable adjustment with minimal drift and superior pressure characteristics;
4、Available in standard configuration and low-pressure variant (maximum adjustable pressure 0.4MPa);
5、Unique vortex-inducing structure optimizes gas rotation for efficient liquid separation and reliable solid particle filtration;
6、Selectable filtration precision: 5μm or 40μm;
7、Dual drainage options: differential pressure manual drainage or automatic drainage systems;
8、Bowl materials include PC, metal, and nylon for environmental adaptability;
9、Optional fixed bracket mounting configuration available.
Category: Regulating Filters , Brand: AirTAC , Series: GAFR
AirTAC GAFR20006ASN Filter Regulator Comprehensive Specifications
- Model: GAFR20006ASN
- Type: Combined filter regulator with lubricator (FRL unit)
- Port size: PT1/4 (BSP 1/4")
- Thread standard: ISO 228 (G-thread)
- Filtration grade: 5 μm (removal rate ≥95%)
- Pressure regulation range: 0.05–0.9 MPa
- Max operating pressure: 1.0 MPa
- Flow capacity: 2000 NL/min (at 0.7 MPa)
- Pressure gauge range: 0–1.6 MPa (optional glycerin-filled)
- Operating temperature: -5℃ to 60℃ (non-freezing)
- Bowl material: Polycarbonate (impact-resistant)
- Main body: Die-cast aluminum alloy (anodized)
- Seal material: NBR (nitrile rubber)
- Weight: 320g ±5% (dry, without lubricant)
- Dimensions: 145mm(H) × 70mm(W) × 70mm(D)
- Drain type: Manual float drain
- Mounting: Bracket mounting or direct piping
Triple-function pneumatic component integrating 5μm particulate filtration, precision pressure regulation, and optional oil mist lubrication. Features a visible bowl with anti-static coating to prevent particle adhesion. The T-handle pressure adjustment allows tool-free operation with ±0.02 MPa stability. Compatible with ISO 8573-1:2010 air quality standards.
- Pneumatic tool air preparation stations
- Packaging line actuator control systems
- CNC machine tool pneumatic circuits
- Automotive assembly line clamping systems
- Semiconductor manufacturing clean air supply
Maintenance protocol:
Replace filter element every 2,000 operational hours or when pressure drop exceeds 0.1 MPa.
Bowl requires monthly inspection - drain condensate before liquid reaches 1/3 capacity.
Lubricator oil level should be maintained between MIN-MAX markers.
