Airtac MAD Double Rod Mini Cylinder MAD20X260S

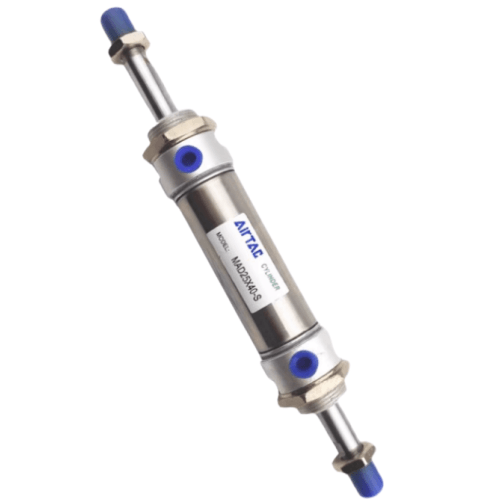

The AirTAC Airtac MAD Double Rod Mini Cylinder MAD20X260S is a genuine double acting, double rod standard round-body mini air cylinder with a Ø20mm bore and 260mm stroke, 1/8" air ports and a stainless-steel barrel with a hard-chrome-plated rod for reliable, mildly corrosion-resistant service.
- BoreØ20 mm
- Stroke260 mm
- Port size1/8"
- Acting typeDouble acting, double rod
- Rod threadM8×1.25
- CushionFixed anti-impact bumper pads
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
Airtac MAD Double Rod Mini Cylinder MAD20X260S Technical Specifications
| Model | Airtac MAD Double Rod Mini Cylinder MAD20X260S |
|---|---|
| Series | MAD mini cylinder |
| Bore size | Ø20 mm |
| Stroke | 260 mm |
| Acting type | Double acting, double rod |
| Port size | 1/8" |
| Rod thread | M8×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Fixed anti-impact bumper pads |
| Max standard stroke | Up to 300 mm |
Specifications follow the official AirTAC MA-series datasheet. Barrel: stainless-steel tube (round-body, riveted rolling-packed construction); piston rod: carbon steel with 20µm hard-chrome plating; covers: aluminium alloy. Thread options: PT (blank) / G / NPT. Every MA-series cylinder ships with a built-in magnet for CMSG / DMSG / EMSG position sensors.
Theoretical Output Force (Ø20mm)
| Pressure | Force (both ways) |
|---|---|
| 0.5 MPa | 132 N |
| 0.7 MPa | 185 N |
| Max (@1.0 MPa) | 27 kgf |
Double-rod: a rod exits both covers, so output force is equal in both directions (rod-side area used).
Model Code: Airtac MAD Double Rod Mini Cylinder MAD20X260S
| MAD | Standard round-body mini cylinder (double-rod). |
|---|---|
| 20 | Bore size in mm. |
| ×260 | Stroke length in mm. |
| -S | Built-in magnet for CMSG / DMSG / EMSG sensors (standard on MA series). |
| CA / U / CM | Back-cover type: CA pivot, U flat-end, CM round-end. |
MA-family variants: MA / MAC (double acting ±cushion), MSA / MTA (single acting push / pull), MAD / MACD (double rod ±cushion), MAJ / MACJ (adjustable stroke ±cushion), MAR (cushioned with integrated F/U mount). Mounting accessories: FA flange, LB foot, SDB pivot; plus I and Y knuckles. Thread PT (blank) / G / NPT.
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Do not dismantle the riveted front/back covers.
- check Bumper models: keep speed within the rated range.
- check Installation by qualified personnel per AirTAC docs.
Authorized Export Seller
Genuine AirTAC parts produced by AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard models are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
