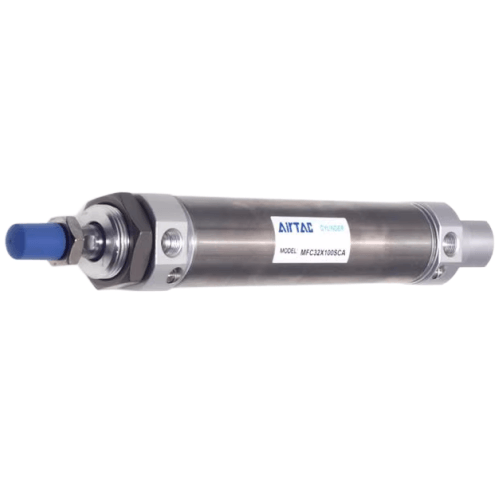

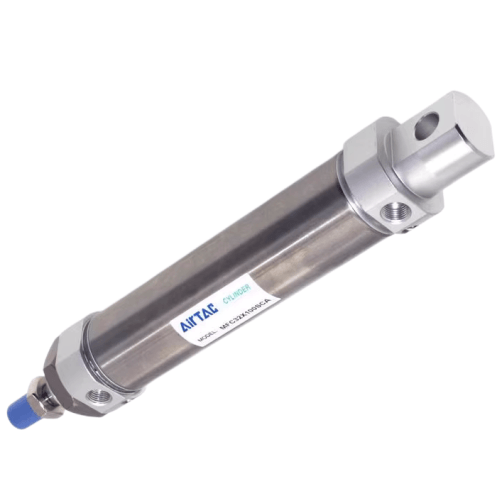

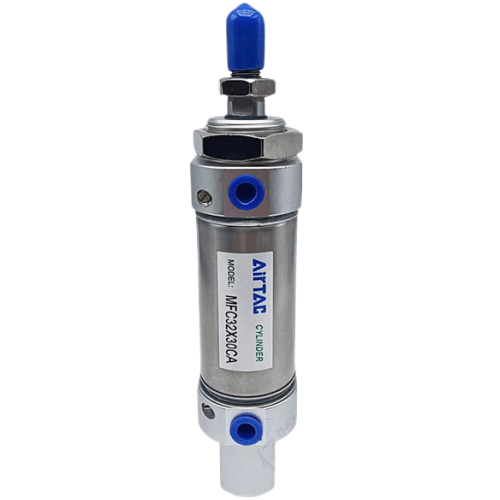

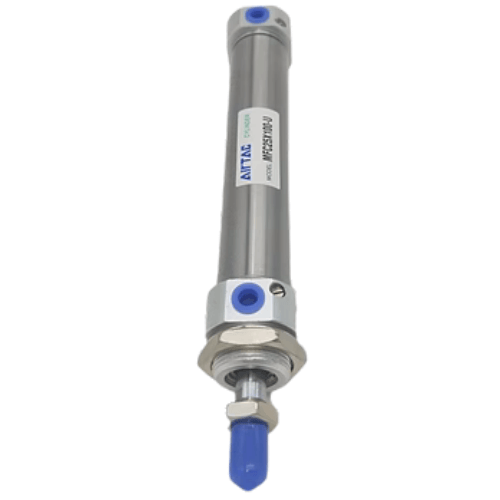

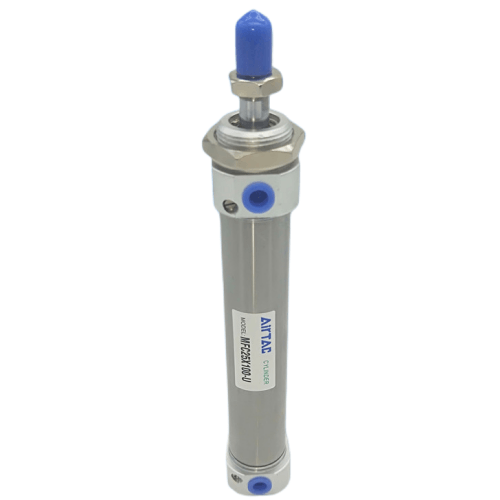

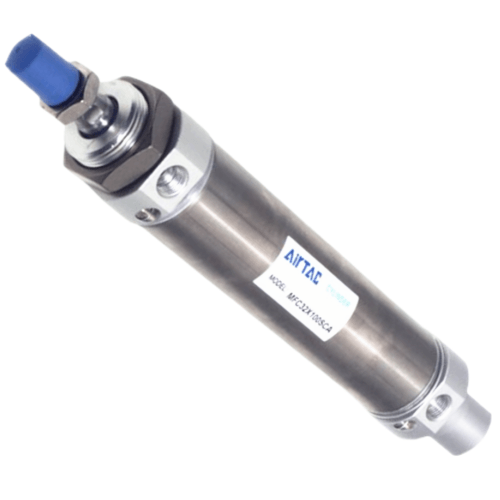

Airtac MFC Cushioned Stainless Steel Mini Cylinder MFC25X400CA
2. Piston seal adopts a profiled bidirectional sealing structure for compact dimensions and integrated oil reservoir functionality;
3. Fixed shock-absorbing pads on front/rear covers minimize impact during directional changes;
4. Multiple rear cover configurations enhance installation flexibility;
5. Riveted encapsulation structure ensures robust connection between stainless steel cylinder body and covers;
6. High-precision stainless steel tubing offers exceptional strength and corrosion resistance;
7. Compact length design: MF series cylinders are shorter than ISO6432-standard cylinders at identical bore/stroke;
8. Diverse cylinder specifications and mounting accessories available for customized applications.
Category: Stainless Steel Mini Cylinder | Brand: AirTAC | Series: MFC
AirTAC MFC25X400CA Buffered Stainless Steel Mini Cylinder Specifications
- Model: MFC25X400CA
- Bore size: Ø25mm
- Stroke: 400mm
- Buffer type: Adjustable rubber cushion (both ends)
- Material: SUS304 stainless steel (body), aluminum alloy (end caps)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 150℃
- Piston speed: 50-1000 mm/s
- Port size: M5x0.8 (standard), G1/8 optional
- Rod thread: M10x1.25
- Mounting type: Basic (no built-in mounts)
- Weight: 1.82 kg
- Dimensions: 550mm(L) × 50mm(W) × 50mm(H)
- ISO standard: 6432 (compact series)
- Corrosion resistance: Salt spray test passed 96h
Precision-engineered stainless steel cylinder with dual-end cushioning for smooth operation in corrosive environments. Features a space-saving design with 30% shorter length than standard cylinders. The chromium-plated piston rod provides enhanced wear resistance and leak prevention through PTFE seals.
- Food processing machinery (washdown environments)
- Pharmaceutical packaging lines
- Semiconductor wafer handling systems
- Marine equipment actuators
- Cleanroom automation
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use.
For vertical mounting, add external guide mechanisms when lateral forces exceed 5N.
Cushion adjustment requires 1.5mm hex key (included).
| Property | Property Value |
|---|---|
| sku | MFC25X400CA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <25 mm> |
| Stroke | <400mm> |
