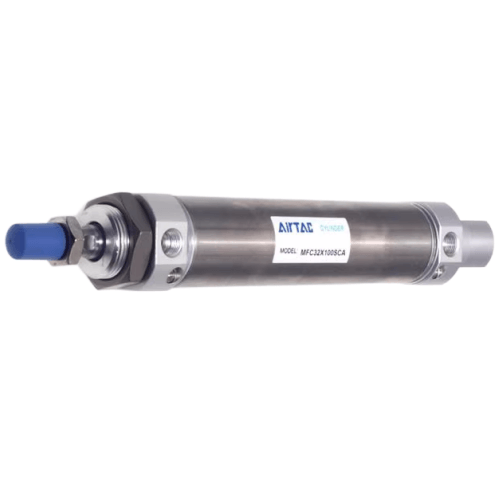

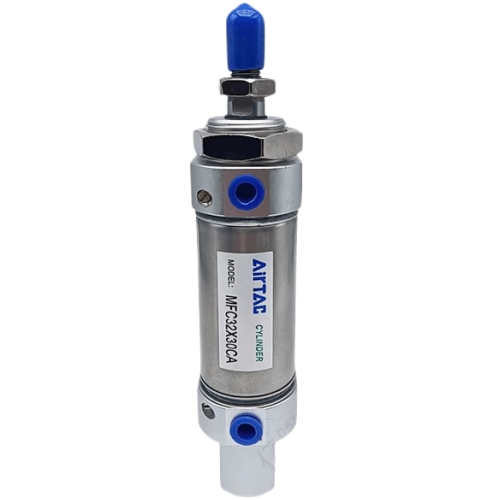

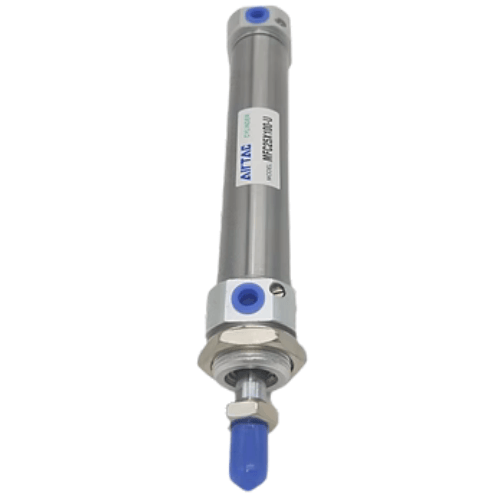

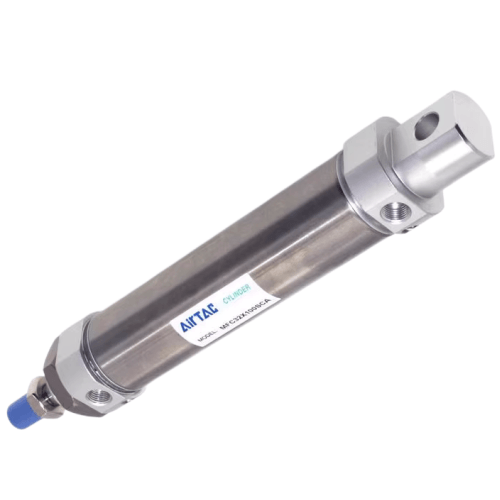

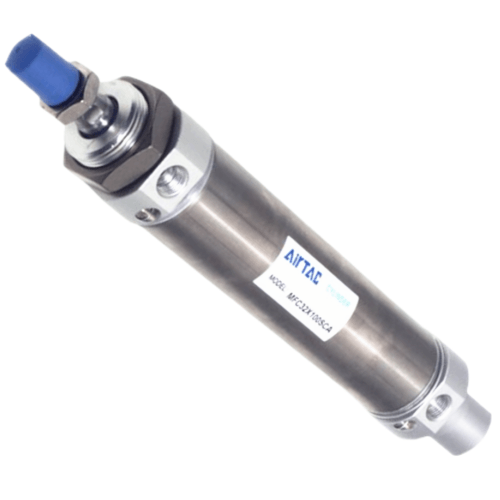

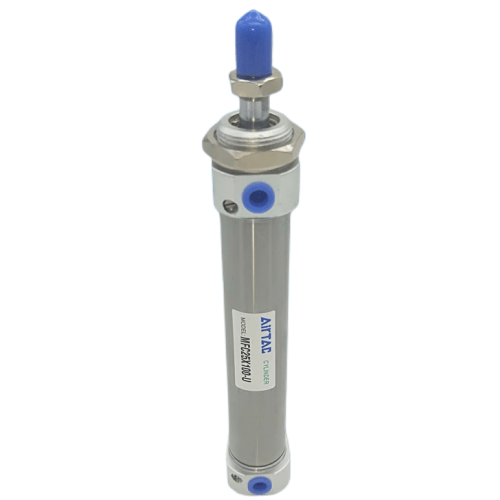

Airtac MFC Cushioned Stainless Steel Mini Cylinder MFC25X600SCA
2. Piston seal adopts a profiled bidirectional sealing structure for compact dimensions and integrated oil reservoir functionality;
3. Fixed shock-absorbing pads on front/rear covers minimize impact during directional changes;
4. Multiple rear cover configurations enhance installation flexibility;
5. Riveted encapsulation structure ensures robust connection between stainless steel cylinder body and covers;
6. High-precision stainless steel tubing offers exceptional strength and corrosion resistance;
7. Compact length design: MF series cylinders are shorter than ISO6432-standard cylinders at identical bore/stroke;
8. Diverse cylinder specifications and mounting accessories available for customized applications.
Category: Stainless Steel Mini Cylinder | Brand: AirTAC | Series: MFC
AirTAC MFC25X600SCA Buffered Stainless Steel Mini Cylinder Specifications
- Model: MFC25X600SCA
- Bore size: 25mm
- Stroke: 600mm
- Operating pressure: 0.05–1.0 MPa
- Cushioning type: Adjustable air buffer (both ends)
- Mounting style: Standard (optional foot/mounting accessories available)
- Port size: M5x0.8 (G1/8 adaptor included)
- Piston speed: 50–800 mm/s
- Ambient temperature: -20℃ to 80℃
- Material: Stainless steel cylinder tube (SUS304) + anodized aluminum end caps
- Seal material: Heat-resistant NBR + fluororubber combination
- Weight: 1.65 kg (without accessories)
- Dimensions: 700mm(L) × 40mm(W) × 40mm(H) (full extension)
- Rod thread: M10x1.25 (ISO standard)
- Protection rating: IP67 (wipers included)
- Max lateral load: 15N at full extension
High-precision stainless steel mini cylinder with integrated shock absorption, designed for corrosive environments and precision industrial automation. Features dual adjustable pneumatic cushions for smooth end-of-stroke deceleration and reduced impact noise. The chrome-plated piston rod and multi-layered sealing system ensure ≥2,000km service life under standard conditions.
- Cleanroom semiconductor handling equipment
- Food processing machinery (FDA-compliant grease option)
- Pharmaceutical blister packaging lines
- Marine automation systems
- High-cycle CNC machine tool actuators
Installation recommendation:
Use with AR-12 series auto switches for position feedback.
Lubricate with ISO VG32 turbine oil if operating below -10℃.
Allow 5mm clearance for thermal expansion during long-stroke operation.
| Property | Property Value |
|---|---|
| sku | MFC25X600SCA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Stroke | 600mm |
Returns will be accepted for up to 15 days of Customer’s receipt or tracking number on Not used items. You, as a Customer, are obliged to inform us via email before you return the item, only in the case of:
- Received the wrong item.
- Item arrived not as expected (ie. damaged packaging).
- Item had defects.
- Over delivery time.
- The shipper does not allow the goods to be inspected before payment.
The returned product(s) must be in the original packaging, safety wrapped, undamaged and unworn. This means that the item(s) must be safely packed in a carton box for protection during transport, possibly the same carton used to ship to you as a customer.
