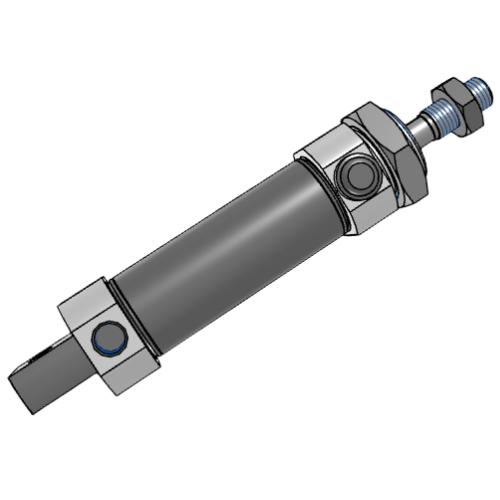

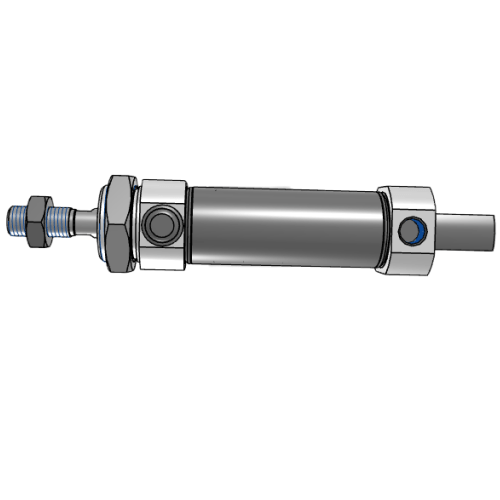

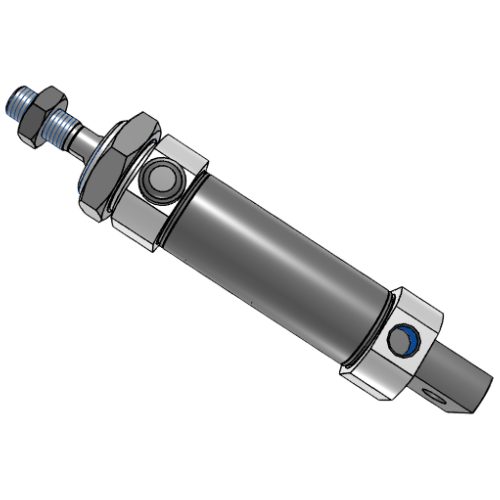

Airtac MSF Single Acting Mini Cylinder MSF32X40CM
$41.37
Regular price
$48.87
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MSF32X40CM
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with JS industrial standard specifications;
2. Features asymmetric bidirectional piston sealing structure with integrated oil reservoir for compact dimensions;
3. Integrated shock-absorbing pads on both end caps minimize impact during directional changes;
4. Multiple rear cover configurations provide enhanced mounting flexibility;
5. Crimped enclosure design ensures secure assembly between stainless steel cylinder barrel and end caps;
6. High-precision stainless steel tubing construction delivers superior strength and corrosion resistance;
7. Compact design achieves shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Extensive selection of cylinder specifications and mounting accessories available for customized solutions.
Category: Miniature Cylinders , Brand: AIRTAC , Series: MSF
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use. Avoid side load exceeding 15N.
For vertical mounting, reduce maximum speed by 30% to prevent piston chatter.
2. Features asymmetric bidirectional piston sealing structure with integrated oil reservoir for compact dimensions;
3. Integrated shock-absorbing pads on both end caps minimize impact during directional changes;
4. Multiple rear cover configurations provide enhanced mounting flexibility;
5. Crimped enclosure design ensures secure assembly between stainless steel cylinder barrel and end caps;
6. High-precision stainless steel tubing construction delivers superior strength and corrosion resistance;
7. Compact design achieves shorter overall length compared to ISO 6432 standard cylinders with equivalent bore size and stroke;
8. Extensive selection of cylinder specifications and mounting accessories available for customized solutions.
Category: Miniature Cylinders , Brand: AIRTAC , Series: MSF
AirTAC MSF Series Single-Acting Miniature Cylinder MSF32X40CM Specifications
- Model: MSF32X40CM
- Type: Single-acting spring return (miniature series)
- Bore size: Ø32mm
- Stroke: 40mm (±1mm)
- Operating pressure: 0.05–0.9 MPa
- Ambient temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Cushioning: Adjustable rubber buffer
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Body material: Aluminum alloy (stainless steel version available)
- Rod material: Hard chrome-plated steel
- Seal material: NBR/PU (FDA compliant options for food applications)
- Weight: 0.68kg (aluminum) / 0.85kg (stainless)
- Dimensions: 40mm(W) × 40mm(H) × 138mm(L) (fully retracted)
- Mounting options: Basic front flange (NF series brackets compatible)
- Protection rating: IP54 (standard), IP67 with optional rod cover
Ultra-compact single-acting cylinder optimized for space-constrained automation systems. Features precision-ground rod and multi-layered sealing system for ≤0.5mm air leakage at 0.5MPa. The anodized body resists chemical corrosion in harsh environments.
Typical Applications:
- PCB handling robots in electronics manufacturing
- Dispenser valve actuation in food packaging lines
- Micro-positioning stages in optical equipment
- Medical device clamp mechanisms
- Semiconductor wafer processing tools
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use. Avoid side load exceeding 15N.
For vertical mounting, reduce maximum speed by 30% to prevent piston chatter.
| Property | Property Value |
|---|---|
| sku | MSF32X40CM |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <40mm> |
