Airtac P-SDAD Repair Kit P-SDAD16-R1
AirTAC P-SDAD16-R1 Cylinder Repair Kit Technical Details
- Model compatibility: Designed for P-SDAD16 series cylinders

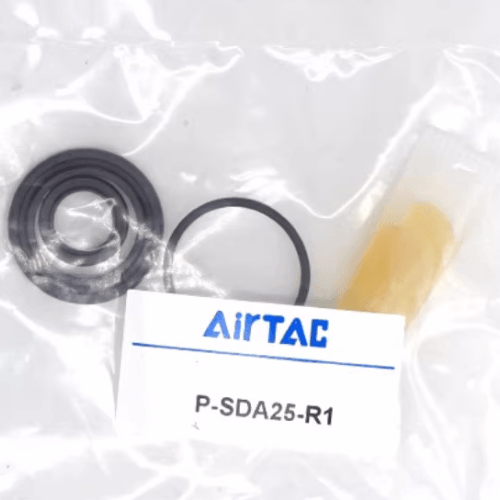

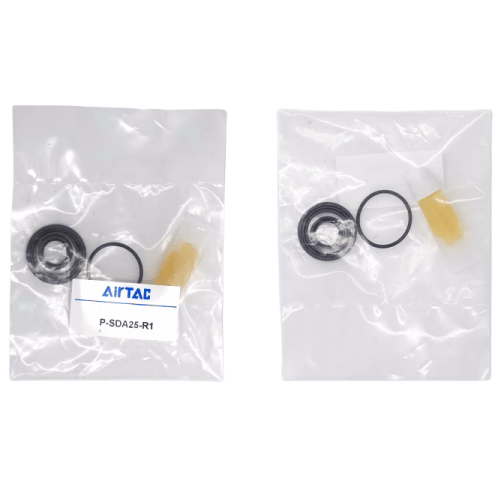

- Package contents: Piston seals, rod seals, O-rings, wear bands, backup rings
- Seal material: Polyurethane (PU) and Nitrile rubber (NBR) compound
- Temperature range: -20℃ to 80℃ (continuous operation)
- Pressure rating: 0.05-1.0 MPa (max instantaneous 1.5 MPa)
- Chemical resistance: Compatible with phosphate ester oil, incompatible with ketones/esters
- Weight: 220g ±5% (including packaging)
- Dimensions: 185mm(L) × 95mm(W) × 35mm(H) (blister pack size)
- Shelf life: 5 years in original packaging (25℃, 65% RH)
- Certification: RoHS compliant
Comprehensive maintenance solution for P-SDAD16 pneumatic cylinders, containing all wear components for full rebuild. Features precision-molded seals with anti-extrusion design, optimized for high-cycle applications. Includes dust-resistant wiper seals and low-friction rod seals with 0.01mm dimensional tolerance.
- Factory automation line cylinder overhaul
- Plastic injection molding machine ram maintenance
- Automotive welding fixture cylinder refurbishment
- Food packaging equipment pneumatic system repair
- Semiconductor handling robot preventive maintenance
Installation tip:
Lubricate all seals with ISO VG32 hydraulic oil before assembly.
Replace complete seal set (do not mix old/new components).
Torque mounting bolts to 12-15N·m in crisscross pattern.
Contains small parts -
Keep away from children. Store in original anti-static packaging
when not in use. Discard deformed seals immediately.
| Property | Property Value |
|---|---|
| sku | P-SDAD16-R1 |
