Airtac P-SDAD Repair Kit P-SDAD20-R1
AirTAC P-SDAD20-R1 Repair Kit Technical Details
- Compatible Model Series: P-SDAD20 (20mm bore double-acting cylinders)

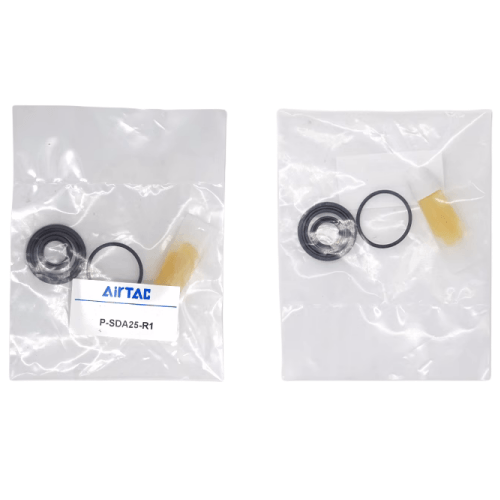

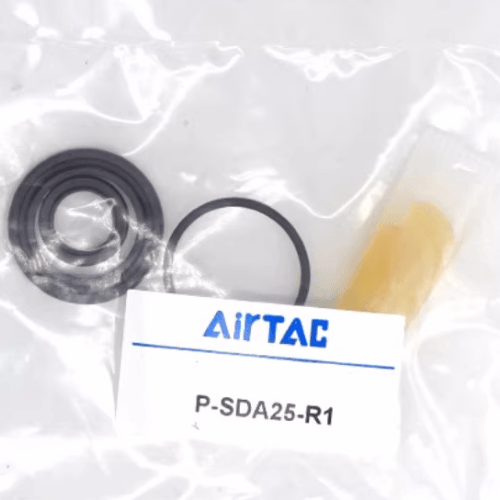

- Kit Contents: Piston seals, rod seals, O-rings, wipers, cushion rings, backup rings
- Material Composition: NBR (Nitrile) + PU (Polyurethane) hybrid seals
- Temperature Tolerance: -20℃ to +80℃ continuous operation
- Pressure Rating: 0.05-1.0 MPa (7-145 PSI)
- Lubrication: Pre-lubricated with PFPE grease (compatible with ISO VG32)
- Weight: 320g ±5% (including packaging)
- Package Dimensions: 180mm(L) × 120mm(W) × 35mm(H)
- Shelf Life: 5 years in original sealed packaging
- Chemical Resistance: Mineral oils, hydraulic fluids, weak acids (pH＞4)
- Certification: RoHS 2011/65/EU compliant
Comprehensive maintenance solution for AirTAC SDAD series compact cylinders, containing all wear-prone components for full pneumatic chamber overhaul. Features hybrid sealing materials that balance durability (PU) and elasticity (NBR), optimized for high-cycle applications. Includes anti-extrusion rings to prevent seal deformation under pulsating pressures.
- Preventive maintenance for automated assembly line actuators
- Rehabilitation of contaminated cylinders in food processing machinery
- Field service repairs for packaging equipment pneumatic systems
- Restoration of precision positioning cylinders in semiconductor handlers
Installation protocol:
Disassemble cylinder in ISO Class 7 clean environment. Clean all metal parts with non-residue solvent (IPA 99.9% recommended).
Soak new seals in pneumatic oil for 30 mins before assembly. Torque end caps to 2.5-3.0 N·m using crisscross pattern.
Contains small parts - Keep sealed when not in use.
Not compatible with phosphate ester fluids or ketone-based lubricants.
Discard deformed cushion rings - Do not attempt reshaping.
