Airtac P-SDAD Repair Kit P-SDAD20-R2
AirTAC P-SDAD20-R2 Repair Kit Technical Details
- Model: P-SDAD20-R2
- Compatible Series: SDAD20 standard cylinders

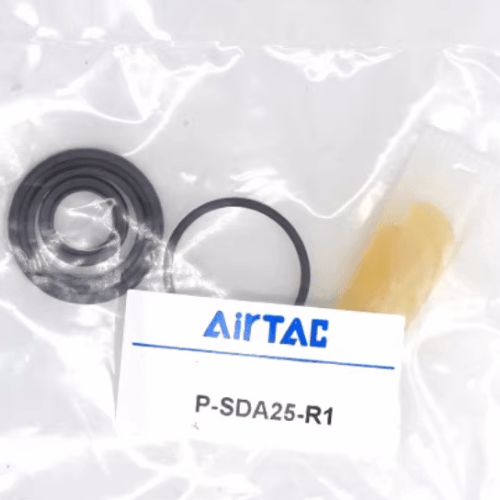

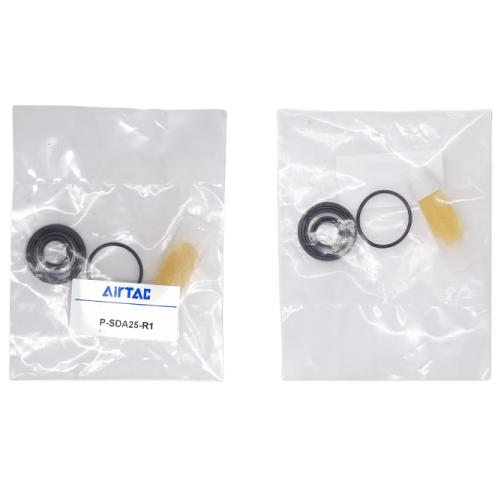

- Package Contents: Piston seals, rod seals, wear rings, O-rings, backup rings
- Material Composition:
- Primary seals: Polyurethane (PU)
- Secondary seals: Nitrile Rubber (NBR)
- Wear pads: Glass-filled PTFE
- Operating Temperature: -20℃ to 80℃
- Pressure Rating: 0.05-1.0 MPa
- Chemical Resistance: Resists hydraulic oils (ISO VG32-68), mild acids, and alkalis
- Weight: 180g ±5g (complete kit)
- Package Dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Storage Conditions: 5-40℃ in original sealed packaging
- Shelf Life: 5 years from manufacture date (unopened)
Comprehensive maintenance solution for SDAD20 pneumatic cylinders, containing all wear-prone components for full pneumatic circuit overhaul. Features precision-molded seals with anti-extrusion design for high-cycle applications. Kit includes alignment tools and lubrication sachet (Molykote EM-30L).
- Preventive maintenance in automated assembly lines
- Restoration of cylinder compression in material handling systems
- Rebuilding actuators in food processing equipment (FDA-compliant materials)
- Overhauling pneumatic clamps in CNC machinery
- Servicing robotic end-effector cylinders
Maintenance protocol:
Replace entire seal set every 500,000 cycles or when leakage exceeds 5cc/min.
Clean cylinder bore with alcohol-free solvent before installation.
Apply included lubricant to rod seals during assembly.
| Property | Property Value |
|---|---|
| sku | P-SDAD20-R2 |
