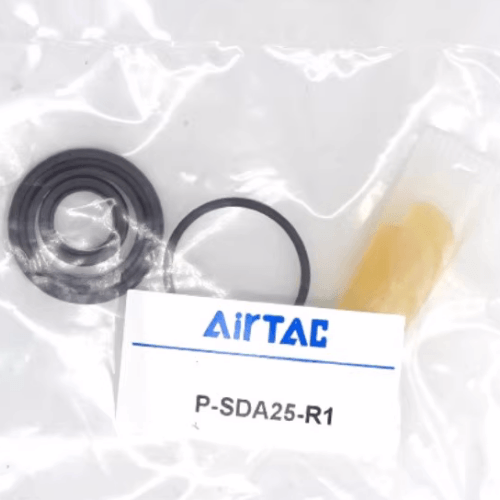

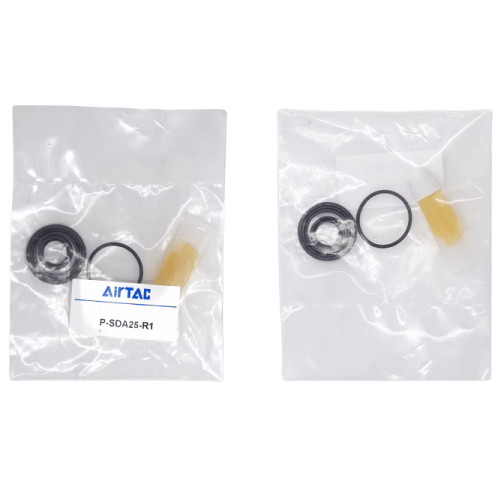

Airtac P-SDAD Repair Kit P-SDAD25-R1
$3.94
Regular price
$11.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-SDAD25-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Seal Kit
Brand: Airtac
Series: P-SDAD
Professional Description:
This Airtac P-SDAD Cylinder Seal Repair Kit is engineered for precision maintenance of pneumatic cylinders in industrial automation systems. The kit contains critical sealing components including O-rings, piston seals, rod seals, and wear bands specifically designed for P-SDAD series cylinders. Manufactured with HNBR/NBR materials for enhanced chemical resistance and durability, these seals ensure optimal cylinder performance under operating pressures up to 1.0 MPa and temperature ranges of -20°C to +80°C. Compliant with ISO 6431/15552 standards, this repair kit restores factory-grade sealing integrity while minimizing downtime in pneumatic actuator maintenance procedures.
Installation protocol:
Clean cylinder bore with non-linting cloth and pneumatic-grade lubricant (ISO VG32 equivalent) before assembly.
Use torque-controlled tools (0.8-1.2 N·m) for end cap fasteners.
AirTAC P-SDAD25-R1 Repair Kit Technical Details
- Kit Number: P-SDAD25-R1
- Compatible Series: SDAD25 standard cylinder models
- Components Included:
- Nitrogen-sealed O-rings (PU material x4)
- Rod seal set (NBR/POM composite x2)
- Cushion ring (Polyurethane x2)
- Piston seal (HNBR x1)
- Wear band (PTFE-impregnated x2)
- Anti-extrusion rings (PEEK x4)
- Material Temperature Range: -30℃ to 100℃
- Weight: 120g ±5g (complete kit)
- Package Dimensions: 180mm(L) × 95mm(W) × 25mm(H)
- Storage Conditions: 5-35℃ dry environment
- Shelf Life: 5 years from manufacture date
- Pressure Compatibility: 0.05-1.2 MPa
- Chemical Resistance: Mineral oils, water glycol, synthetic lubricants
Comprehensive maintenance solution for SDAD series cylinders, featuring wear-resistant components engineered for 500,000+ cycle durability. Precision-molded seals maintain ≤0.5 NLO3 leakage rate (ISO 6431 standard). Includes anti-static variants for cleanroom applications.
Application Guidelines:
- Preventive maintenance in high-cycle automation lines (15,000+ cycles/month)
- Overhaul of pneumatic grippers in pick-and-place systems
- Rebuilding actuators in food processing equipment (FDA-compliant materials)
- Emergency repair of injection molding machine ejectors
Installation protocol:
Clean cylinder bore with non-linting cloth and pneumatic-grade lubricant (ISO VG32 equivalent) before assembly.
Use torque-controlled tools (0.8-1.2 N·m) for end cap fasteners.
| Property | Property Value |
|---|---|
| sku | P-SDAD25-R1 |
