Airtac P-SDAD Repair Kit P-SDAD50-R2
$12.52
Regular price
$20.02
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-SDAD50-R2
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Seal Kit
Brand: Airtac
Series: P-SDAD
Professional Description:
This Airtac P-SDAD Cylinder Seal Repair Kit is engineered for precision maintenance of pneumatic cylinders in industrial automation systems. The kit contains critical sealing components including O-rings, piston seals, rod seals, and wear bands specifically designed for P-SDAD series cylinders. Manufactured with HNBR/NBR materials for enhanced chemical resistance and durability, these seals ensure optimal cylinder performance under operating pressures up to 1.0 MPa and temperature ranges of -20°C to +80°C. Compliant with ISO 6431/15552 standards, this repair kit restores factory-grade sealing integrity while minimizing downtime in pneumatic actuator maintenance procedures.
Maintenance protocol:
Replace all seals simultaneously using included alignment jig (PN: SDAD-J50).
Clean cylinder bore with 400-grit emery cloth and isopropyl alcohol before installation.
Run break-in cycle at 0.3MPa for 200 strokes.
AirTAC P-SDAD50-R2 Cylinder Repair Kit Technical Details
- Model: P-SDAD50-R2
- Compatible Series: SDAD50 pneumatic cylinders
- Seal Material: HNBR (Hydrogenated Nitrile) + PU (Polyurethane)
- Temperature Range: -20℃ to 120℃ (continuous operation)
- Pressure Range: 0.05-1.0 MPa
- Lubrication: Pre-greased with Molykote HP-500

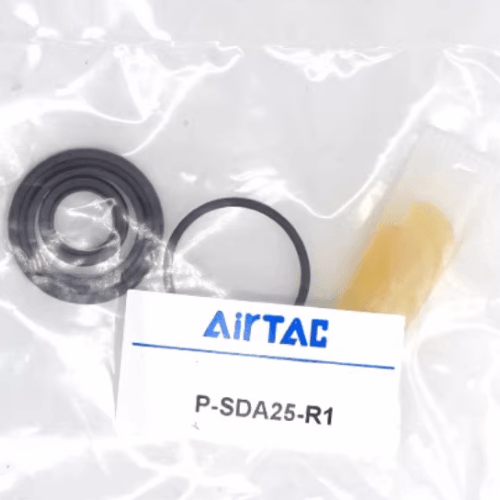

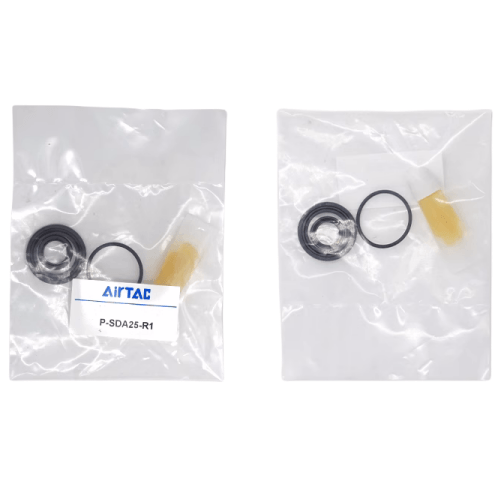

- Included Components: Piston seals, rod seals, wipers, cushion rings (2 sets), O-rings (5 sizes)
- Chemical Resistance: Resists hydraulic oils, water glycol, and mild acids
- Weight: 320g ±5g (including packaging)
- Package Dimensions: 180mm(L) × 95mm(W) × 25mm(H)
- Shelf Life: 5 years in original sealed packaging
Complete overhaul kit for SDAD series 50mm bore cylinders, featuring wear-compensating seals and anti-extrusion rings. Includes specialized scraper design to prevent particulate ingress in high-cycle applications. Compatible with ISO 15552 mounting standards.
Recommended Applications:
- Preventive maintenance for automated assembly line actuators
- Rebuilding cylinders in food processing machinery (FDA-compliant materials)
- High-temperature press equipment maintenance
- Hydraulic hybrid systems with intermittent oil exposure
- Robotic material handling arms with >500k cycle counts
Maintenance protocol:
Replace all seals simultaneously using included alignment jig (PN: SDAD-J50).
Clean cylinder bore with 400-grit emery cloth and isopropyl alcohol before installation.
Run break-in cycle at 0.3MPa for 200 strokes.
| Property | Property Value |
|---|---|
| sku | P-SDAD50-R2 |
