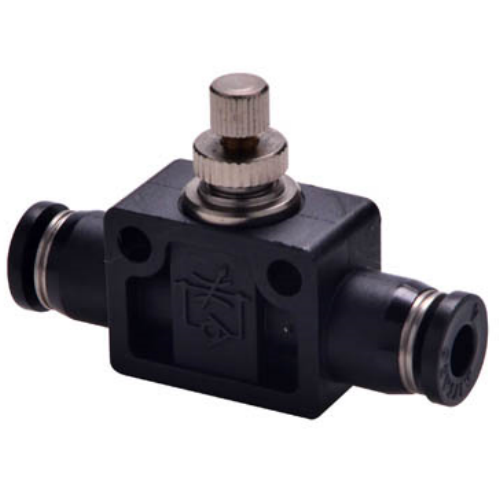

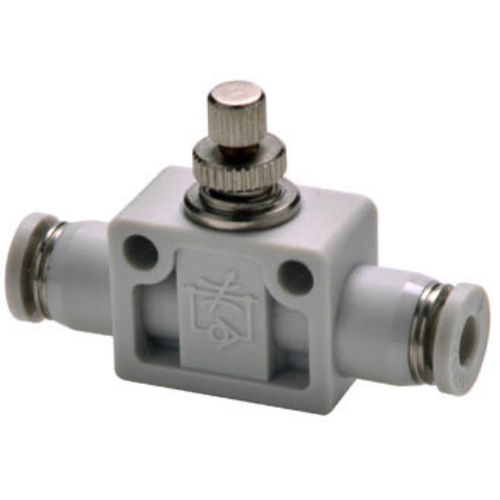

Airtac PSA In-Line Speed Control Valve PSA10
AirTAC PSA10 Inline Speed Control Valve Technical Details
- Model: PSA10
- Type: Inline needle-type flow control with check valve
- Port size: 1/8" BSPP (G1/8)
- Flow capacity: 0-350 L/min (adjustable)
- Pressure range: 0.05-0.9 MPa
- Operating medium: Filtered air (lubricated/non-lubricated)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Flow adjustment: 220° rotary knob with lock nut
- Weight: 195g ±5g
- Dimensions: 42mm(L) × 38mm(W) × 38mm(H)
- Viscosity range: ≤50 cSt (ISO VG32 equivalent)
- Mounting orientation: Any (horizontal/vertical)
Precision bidirectional flow control valve featuring micrometer-style adjustment for stable speed regulation. The integrated check valve allows free reverse flow while maintaining controlled forward flow. Corrosion-resistant construction with ergonomic knurled knob for tool-free adjustments. Requires 5μm filtration (40μm max particle size).
- Pneumatic cylinder speed synchronization in assembly lines
- Packaging machine clamp force adjustment systems
- Textile machinery tension control mechanisms
- Automated door closure rate regulation
- Food processing conveyor speed matching
Installation tip:
For optimal performance, install within 500mm of actuator. Use thread sealant on male ports
(PTFE tape not recommended). Perform initial calibration at 0.5MPa system pressure.
| Property | Property Value |
|---|---|
| sku | PSA10 |
