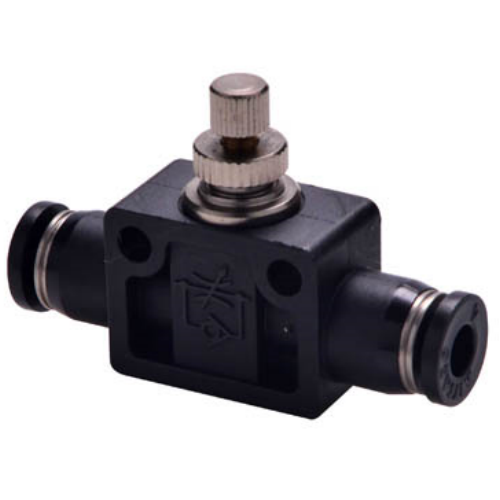

Airtac PSA In-Line Speed Control Valve PSA10-S
AirTAC PSA10-S In-line Speed Control Valve Technical Details
- Model: PSA10-S
- Type: In-line throttle check valve (one-way flow control)
- Port size: PT1/8 (G1/8 optional)
- Flow capacity: 0.05-12 L/min (adjustable)
- Operating pressure: 0.05-0.9 MPa
- Temperature range: -5℃ to 60℃
- Body material: Brass (nickel-plated)
- Seal material: NBR rubber (FDA compliant option available)
- Installation orientation: Bidirectional (vertical/horizontal)
- Weight: ~250g (including packaging)
- Dimensions: 60mm(L) × 30mm(W) × 30mm(H)
- Pressure drop: ≤0.02 MPa at max flow
- Repeat accuracy: ±5% of set flow rate
Precision flow regulator featuring dual-scale flow adjustment (rotary knob with lock nut) and integrated check valve. The PSA10-S maintains consistent flow rates under pressure fluctuations through its pressure-compensated design. Corrosion-resistant construction with 5μm filtration recommendation for optimal performance.
- Pneumatic cylinder speed control in assembly lines
- Packaging machine air cushion regulation
- Medical device pneumatic circuits
- Air tool torque management systems
- Laboratory gas flow control stations
Installation note:
For bidirectional flow control, install with arrow marking aligned to main flow direction.
Use thread sealant on male ports (PT) or flat washers for G-thread connections.
Allow 15mm clearance for adjustment knob operation.
| Property | Property Value |
|---|---|
| sku | PSA10-S |
