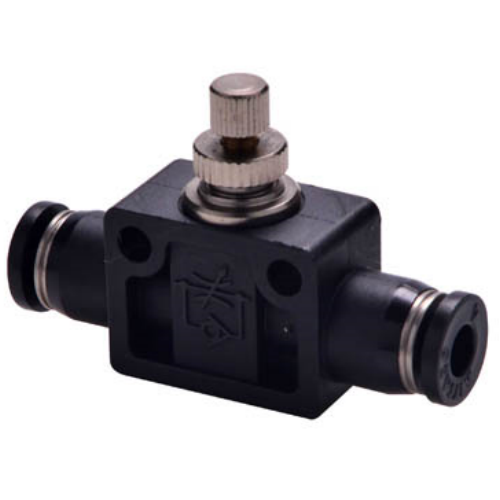

Airtac PSA In-Line Speed Control Valve PSA10D-S
AirTAC PSA10D-S In-line Speed Control Valve Specifications
- Model: PSA10D-S
- Type: One-way throttle with check valve (bidirectional flow control)
- Port size: PT1/8 (G1/8 optional)
- Flow rate range: 0-15 L/min (air), 0-10 L/min (liquid)
- Operating pressure: 0.05-0.9 MPa
- Adjustment method: Knob rotation with locknut (360° continuous adjustment)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile Rubber)
- Temperature range: -5℃ to 80℃
- Mounting orientation: Any direction (vertical recommended for optimal performance)
- Weight: 82g ±2g
- Dimensions: 40mm(L) × 28mm(W) × 34mm(H) (excluding knob protrusion)
- Flow coefficient (Cv): 0.45
- Repeat accuracy: ±5% of max flow rate
- Vibration resistance: 10-55Hz with 1.5mm amplitude
Precision in-line flow control valve featuring bi-directional regulation and memory lock function. The tapered needle design ensures linear flow characteristics, while the integrated check valve allows free reverse flow. Nickel-plated brass fittings prevent corrosion in humid environments. Requires 5μm filtration for extended service life.
- Pneumatic cylinder speed synchronization in assembly lines
- Vacuum generator flow adjustment in packaging systems
- Medical bed actuator control in healthcare equipment
- Process gas regulation in semiconductor manufacturing
- Agricultural sprayer nozzle calibration
Adjustment protocol:
Always depressurize system before initial adjustment. For precise setting,
turn knob clockwise in ¼ increments while monitoring actuator speed.
Apply thread sealant (LOCTITE 542) to locknut during installation.
Avoid using with ester-based lubricants
which may degrade HNBR seals. Maximum particulate contamination level:
Class 7 per ISO 8573-1.
| Property | Property Value |
|---|---|
| sku | PSA10D-S |
