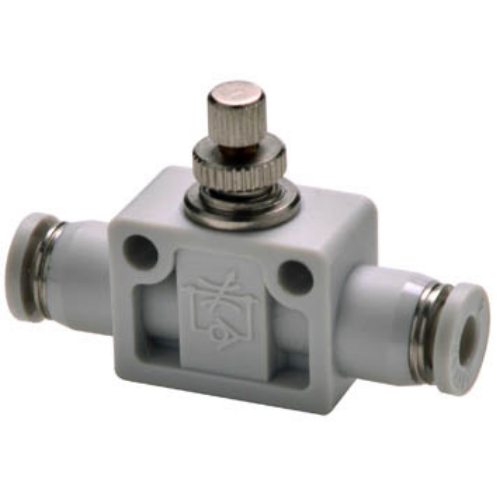

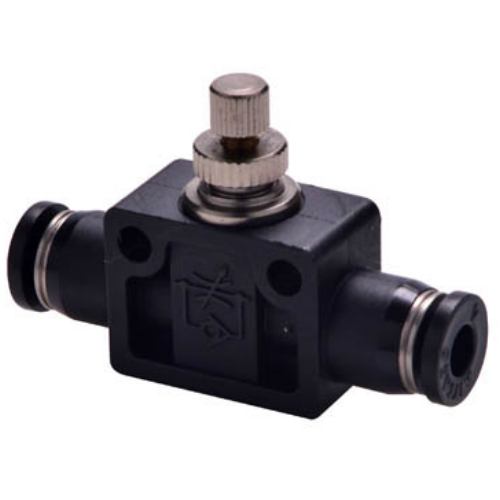

Airtac PSA In-Line Speed Control Valve PSA12
AirTAC PSA12 In-Line Speed Control Valve Specifications
- Model: PSA12
- Type: In-line speed control valve (one-way throttle)
- Port size: PT1/8 (G1/8 optional)
- Flow range: 100-1000 L/min (adjustable)
- Operating pressure: 0.05–0.9 MPa
- Max. working pressure: 1.0 MPa
- Temperature range: -5℃ to 60℃
- Body material: Nickel-plated brass
- Seal material: NBR (standard) / FKM (optional)
- Adjustment mechanism: Manual rotary knob with locking ring
- Weight: ~180g
- Dimensions: 40mm(L) × 25mm(W) × 25mm(H)
- Flow characteristic: Linear regulation
- Repeat accuracy: ±5% of max flow
- Viscosity range: 10-200 cSt
The PSA12 features precision-machined metering cone and spring-loaded poppet for stable flow control under fluctuating pressures. Its dual O-ring design prevents leakage during adjustment, with color-coded knob (blue) for quick identification. Requires 5μm filtered air and regular lubrication for optimal performance.
- Cylinder speed synchronization in automation lines
- Packaging machine actuator timing control
- Pneumatic tool exhaust silencing
- Conveyor system branch circuit balancing
- Medical device pneumatic sequencing
Installation note:
Install within 500mm of controlled actuator for best response.
For bidirectional control, pair two PSA12 valves in series.
Rotate knob clockwise to decrease flow (8 full turns from max to min).
| Property | Property Value |
|---|---|
| sku | PSA12 |
