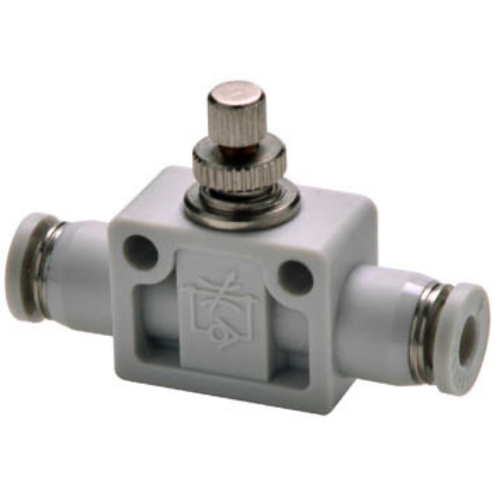

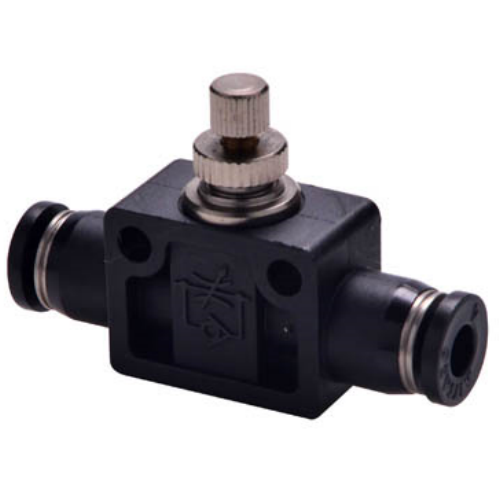

Airtac PSA In-Line Speed Control Valve PSA12D
AirTAC PSA12D In-Line Speed Control Valve Specifications
- Model: PSA12D
- Type: One-way throttle valve with bypass check
- Port size: PT1/8 (G1/8 optional)
- Flow adjustment range: 0.3-15 L/min (air)
- Operating pressure: 0.05-0.9 MPa
- Max. pressure: 1.0 MPa
- Temperature range: -5℃ to 80℃
- Body material: Brass (nickel-plated)
- Seal material: NBR (optional FKM/Viton)
- Weight: 120g ±5%
- Dimensions: 52mm(L) × 24mm(W) × 24mm(H)
- Flow coefficient (Cv): 0.3
- Repeat accuracy: ±10% of max flow
- Hysteresis: ≤5%
Bi-directional flow control valve with micrometer-style adjustment knob for precise regulation. Features reverse flow check valve bypass for unrestricted return flow. Corrosion-resistant construction with O-ring sealed adjustment stem. Requires 40μm filtration and ISO 8573-1:2010 Class 4 compressed air.
- Pneumatic cylinder speed control in automation lines
- Air motor RPM regulation systems
- Packaging machine actuator timing adjustment
- Medical device pneumatic circuits
- Semiconductor manufacturing equipment
Installation note:
Install vertically with flow arrow matching direction. Lubricated air (ISO VG32) recommended for extended seal life.
Perform initial calibration after 50 operation cycles.
| Property | Property Value |
|---|---|
| sku | PSA12D |
