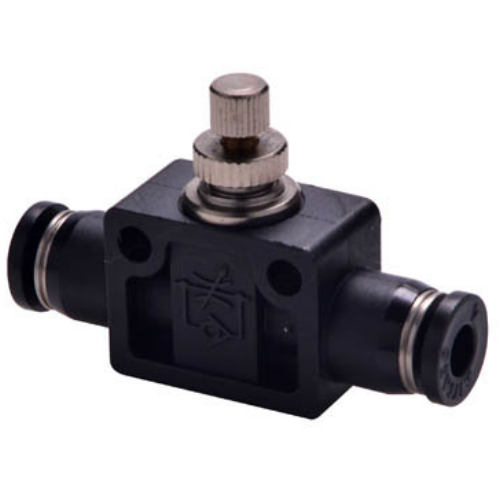

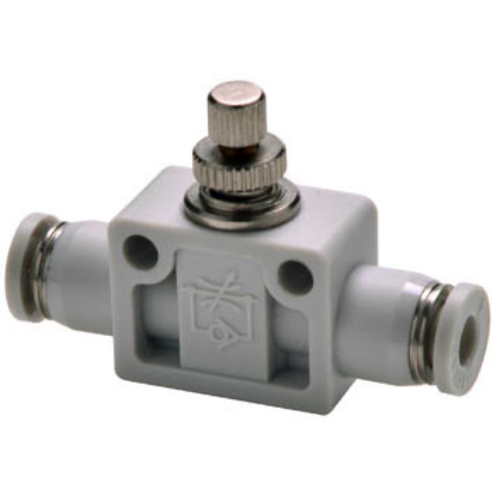

Airtac PSA In-Line Speed Control Valve PSA12D-S
AirTAC PSA In-line Speed Control Valve PSA12D-S Technical Details
- Model: PSA12D-S (Standard Thread Type)
- Type: One-way throttle valve with check function
- Port size: 1/8" NPT (G1/8 optional)
- Flow capacity: 0-600 L/min (air consumption at 0.5MPa)
- Operating pressure: 0.05-1.0 MPa
- Maximum pressure: 1.5 MPa
- Adjustment range: Full closed to full open (20° rotation)
- Body material: Nickel-plated brass
- Seal material: NBR + POM composite
- Temperature range: -5℃ to 80℃ (no freeze)
- Weight: 85g ±2g
- Dimensions: 48mm(L) × 28mm(W) × 28mm(H)
- Mounting torque: 3.5-4.5 N·m
- Flow symmetry: ≤10% (forward vs reverse)
Precision bidirectional flow control valve with visual scale indicator (0-5 markings), featuring anti-vibration lock nut and smooth knob operation. The chrome-plated adjustment screw prevents corrosion in humid environments. Requires ISO 8573-1 class 3 compressed air (max 5mg/m³ oil content).
- Cylinder speed synchronization in SMT equipment
- Pneumatic gripper force modulation
- Vacuum generator response time adjustment
- Medical bed actuator speed control
- Food packaging line air curtain regulation
Installation guidance:
Install downstream of FRL units with arrow aligned to airflow direction.
Perform initial calibration by fully opening valve before gradual adjustment.
Lubricate threads annually with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | PSA12D-S |
