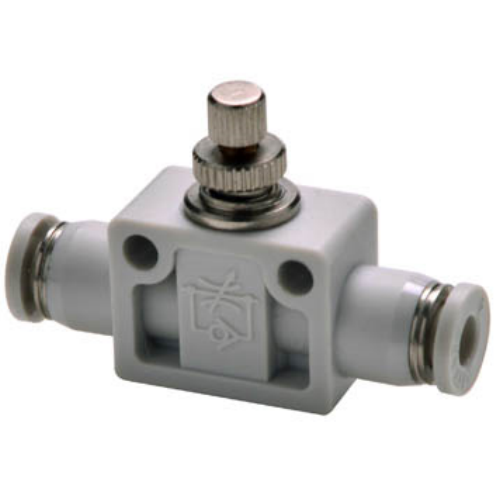

Airtac PSA In-Line Speed Control Valve PSA4
AirTAC PSA Series In-Line Speed Control Valve PSA4 Technical Details
- Model: PSA4
- Type: In-line adjustable one-way flow control valve
- Port configuration: 1/4" BSPP (G1/4) female threads
- Flow capacity: 0-800 L/min (air) with adjustable range limiter
- Operating pressure: 0.05-1.0 MPa
- Max working pressure: 1.5 MPa
- Body material: Anodized aluminum alloy (black finish)
- Seal material: NBR (Nitrile) standard, optional FKM
- Temperature range: -5℃ to 80℃ (NBR), -20℃ to 150℃ (FKM)
- Adjustment type: Manual rotary knob with 270° rotation
- Flow characteristics: Linear regulation with locking mechanism
- Weight: 250g ±5% (without fittings)
- Dimensions: 50mm(L) × 25mm(W) × 25mm(H) (body only)
- Port spacing: 18mm center-to-center (horizontal ports)
- Pressure drop: ≤0.02 MPa at max flow rate
- Repeatability: ±5% of maximum flow setting
The PSA4 precision flow control valve features bi-directional flow regulation with dust-resistant knob design. Its tapered needle valve structure ensures stable flow control even under pressure fluctuations. The dual-scale indicator (0-10 visual scale + percentage markings) allows precise repeatable adjustments. Includes anti-vibration locking nut and oxidation-resistant surface treatment.
- Pneumatic cylinder speed synchronization in assembly lines
- Air tool RPM regulation in automotive workshops
- Process gas flow control in pharmaceutical packaging
- Vacuum system bleed air adjustment
- Textile machinery tension control systems
- Food processing pneumatic actuator timing
Installation guidelines:
Install vertically with flow arrow aligned. Use 40μm filter upstream.
For vacuum applications, install on exhaust port. Lubricate quarterly
with ISO VG32 turbine oil if used in high-cycle (>500k actuations) scenarios.
| Property | Property Value |
|---|---|
| sku | PSA4 |
