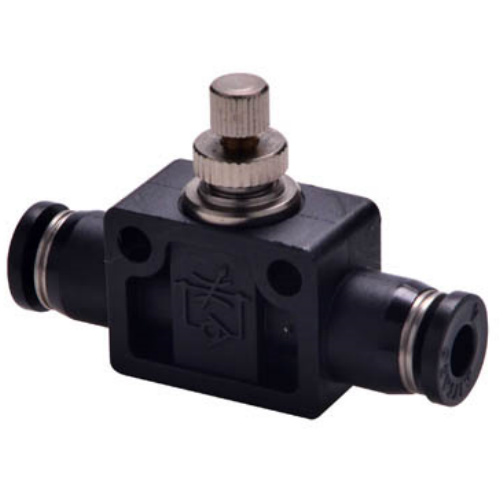

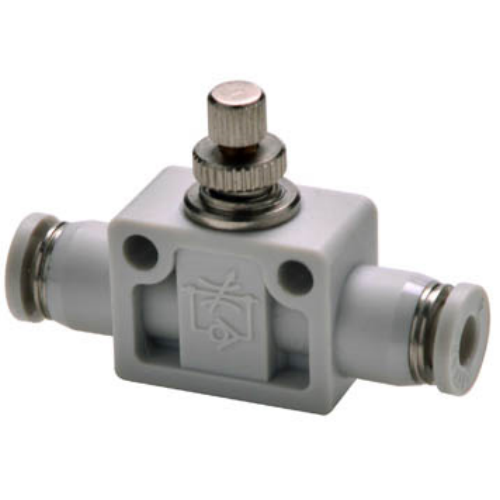

Airtac PSA In-Line Speed Control Valve PSA4D
AirTAC PSA4D Through-Type Speed Control Valve Specifications
- Model: PSA4D
- Type: Inline adjustable one-way flow control valve
- Port size: PT1/8 (G1/8 optional)
- Flow capacity: 50-500 L/min (adjustable)
- Operating pressure range: 0.05–1.0 MPa
- Max working pressure: 1.5 MPa
- Flow adjustment method: Rotary knob with lock nut
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Weight: 210g ±5g
- Dimensions: 58mm(L) × 32mm(W) × 42mm(H)
- Pressure drop: ≤0.02 MPa at 500 L/min
- Repeat accuracy: ±5% of maximum flow
Precision-engineered inline flow regulator featuring bi-directional flow control with unidirectional adjustment. The PSA4D combines a corrosion-resistant body with a micro-precision needle valve mechanism, achieving ±3% flow stability under pressure fluctuations. Includes dust-resistant knob markings and ergonomic torque design (0.2-0.5N·m).
- Pneumatic cylinder speed synchronization in automation lines
- Air tool RPM regulation in automotive assembly
- Packaging machine actuator timing control
- Medical device pneumatic system flow balancing
- Semiconductor handling equipment air cushion adjustment
Installation guidelines:
Install with arrow direction matching airflow. For meter-out control,
pair with check valve. Maintain ≥30mm clearance from heat sources.
Perform initial calibration at 0.5MPa after 10-minute run-in.
| Property | Property Value |
|---|---|
| sku | PSA4D |
