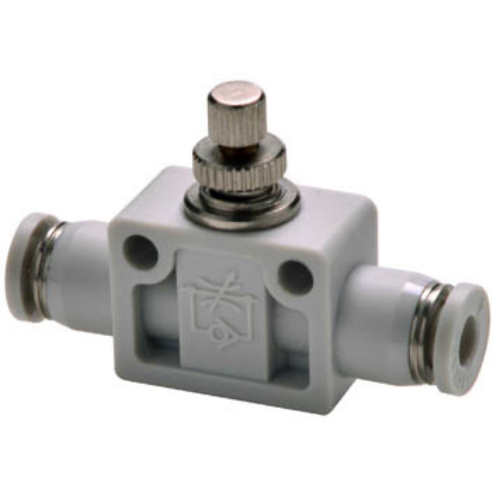

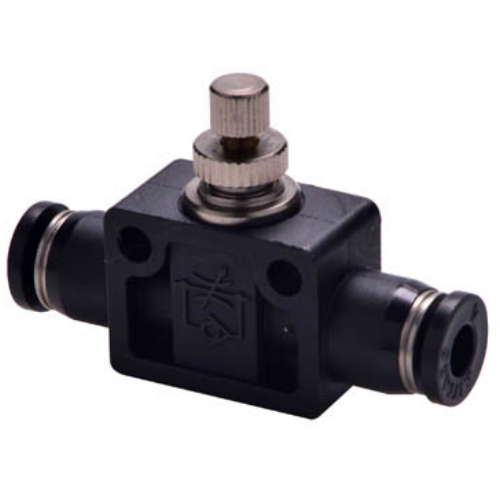

Airtac PSA In-Line Speed Control Valve PSA4D-S
AirTAC PSA4D-S In-line Speed Control Valve Specifications
- Model: PSA4D-S
- Type: One-way throttle valve with bypass check
- Port size: 1/4" (G1/4 thread standard)
- Flow capacity: 0-700 L/min (adjustable)
- Operating pressure range: 0.05-1.0 MPa
- Max working pressure: 1.5 MPa
- Temperature range: -5℃ to 60℃ (no freeze)
- Body material: Aluminum alloy (anodized surface)
- Seal material: NBR (Nitrile rubber)
- Flow adjustment: 300° rotary knob with lock nut
- Weight: 220g ±5%
- Dimensions: 64mm(L) × 34mm(W) × 34mm(H)
- Pressure drop: ≤0.02 MPa at 700 L/min
- Repeat accuracy: ±5% of max flow
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Bi-directional flow control valve with precision metering capability, featuring a corrosion-resistant aluminum body and ergonomic flow adjustment knob. The integrated check valve allows free reverse flow while maintaining controlled flow in forward direction. Designed for stable performance in high-vibration environments with IP40 protection against particulate ingress.
- Pneumatic cylinder speed regulation in automation lines
- Air tool exhaust flow control
- Packaging machine actuator synchronization
- Medical equipment pneumatic braking systems
- Semiconductor handling robot end-effectors
Installation note:
Install vertically with flow arrow aligned to direction control. For optimal performance,
maintain 50mm clearance from heat sources and use upstream filtration (≤40μm).
Lubricated air (ISO VG32) recommended for extended seal life.
| Property | Property Value |
|---|---|
| sku | PSA4D-S |
