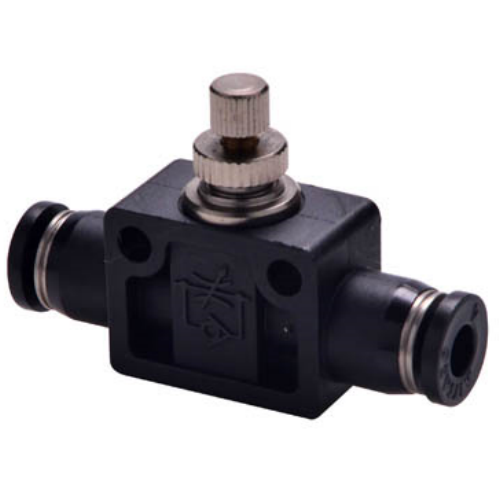

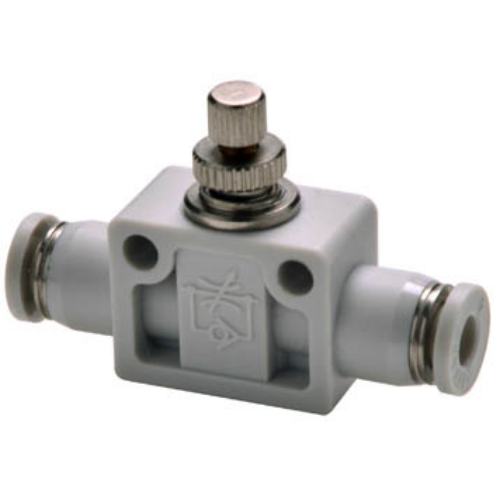

Airtac PSA In-Line Speed Control Valve PSA6-S
AirTAC PSA6-S Inline Speed Control Valve Technical Details
- Model: PSA6-S (Threaded Connection Series)
- Type: Inline adjustable one-way throttle valve
- Port size: PT1/8 (G1/8 equivalent)
- Flow capacity: 0-250 L/min (ANR)
- Pressure range: 0.05-0.9 MPa
- Adjustment mechanism: Knob-controlled needle valve (360° rotation)
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Weight: 85g ±2g
- Dimensions: 52mm(L) × 25mm(W) × 25mm(H)
- Repeat accuracy: ±5% of max flow rate
- Hysteresis: ≤1.5% F.S.
- Protection rating: IP40 (standard)
- Mounting torque: 1.5-2.0 N·m
Precision-engineered inline flow control valve with bi-directional locking mechanism for stable flow regulation. Features a dual-scale flow indicator (0-10 visual index + fine graduation marks) and anti-vibration knob design. The tapered needle valve structure ensures linear flow characteristics across 85% of adjustment range. Requires ISO 8573-1:2010 Class 4 compressed air (max 5mg/m³ oil content).
- Pneumatic cylinder speed synchronization in assembly lines
- Air tool RPM modulation in automotive workshops
- Packaging machine actuator timing adjustment
- Textile machinery air flow balancing
- Semiconductor handling equipment soft-stop control
Installation protocol:
Install vertically with flow arrow aligned. Perform initial calibration by fully opening valve,
then rotating knob clockwise to desired flow (recommended 30% over target setting for break-in period).
Use locknut wrench (SW8) for final tightening after adjustment.
| Property | Property Value |
|---|---|
| sku | PSA6-S |
