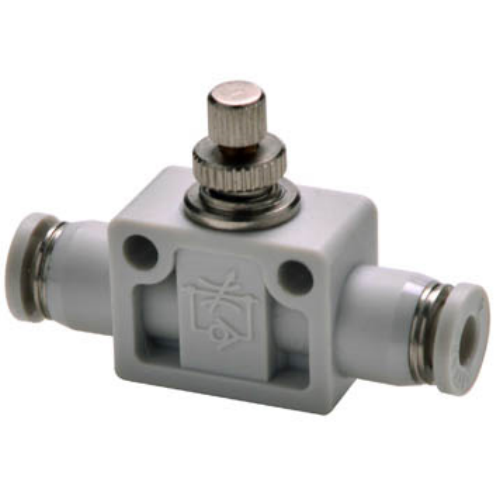

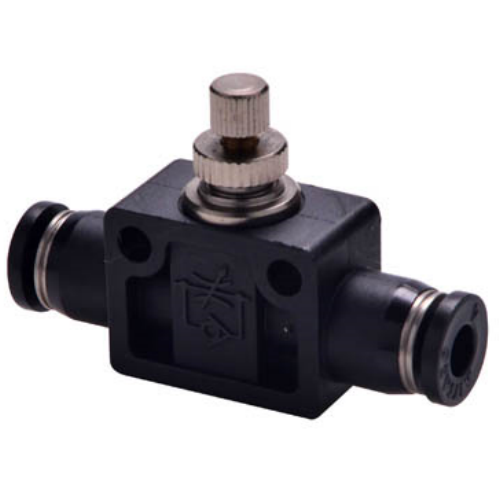

Airtac PSA In-Line Speed Control Valve PSA6D
AirTAC PSA6D Through-Type Speed Control Valve Specifications
- Model: PSA6D
- Type: In-line adjustable flow control valve with check function
- Port size: 1/4" NPT (G1/4 optional)
- Flow capacity: 0-600 L/min (adjustable)
- Operating pressure range: 0.05-1.0 MPa
- Maximum pressure: 1.5 MPa
- Flow adjustment: 22-turn precision screw with locking nut
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -20℃ to 80℃
- Weight: 280g ±5g
- Dimensions: 78mm(L) × 40mm(W) × 40mm(H)
- Port connection: Rc1/4 (ISO standard)
- Flow direction: Bidirectional (arrow marked)
- Viscosity range: ≤50 cSt
Precision-engineered flow control valve featuring progressive throttling mechanism with memory lock function. The brass adjustment screw with O-ring seal prevents accidental setting changes. Integrated check valve allows free flow in one direction while maintaining controlled flow in reverse. Corrosion-resistant construction with industrial-grade seals for humid environments.
- Cylinder speed regulation in automated assembly lines
- Pneumatic conveyor system flow balancing
- Tooling machine air consumption optimization
- Packaging equipment actuator synchronization
- Medical device pneumatic circuit control
- Robotic end-effector pressure regulation
Installation guidelines:
Install downstream of FRL units (Filter-Regulator-Lubricator). For optimal performance,
maintain horizontal orientation with adjustment knob accessible. Allow minimum 10D
straight pipe length upstream. Use thread sealant on male ports (PTFE tape not recommended).
| Property | Property Value |
|---|---|
| sku | PSA6D |
