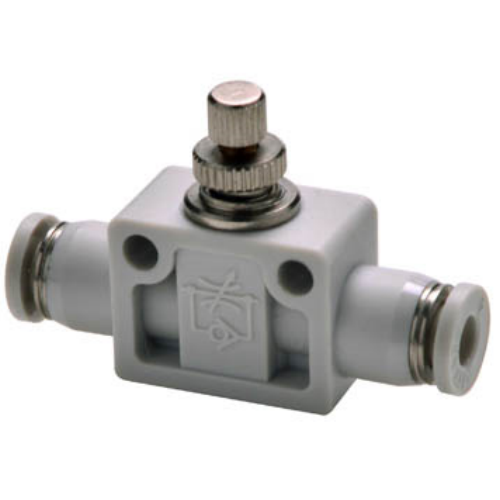

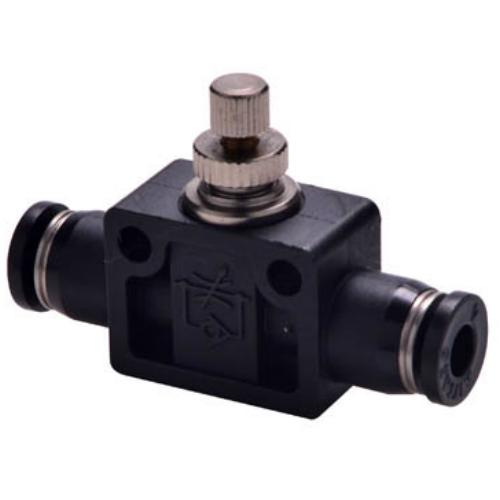

Airtac PSA In-Line Speed Control Valve PSA8-S
AirTAC PSA Series In-Line Speed Controller PSA8-S Technical Details
- Model: PSA8-S
- Type: In-line adjustable flow control valve (one-way)
- Port configuration: Straight-through design (IN → OUT)
- Thread size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–0.9 MPa
- Flow capacity: 0–20 L/min (adjustable)
- Pressure drop: ≤0.03 MPa at 5 L/min
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile) standard (FKM/Viton optional)
- Temperature range: -5℃ to 80℃
- Weight: 215g ±5g
- Dimensions: 53mm(L) × 28mm(W) × 38mm(H)
- Adjustment type: Manual rotary knob with lock nut
- Flow direction: Bi-directional (arrow indicators on body)
- Viscosity range: 10–200 cSt (ISO VG32 recommended)
- Mounting orientation: Any (vertical preferred)
Precision in-line speed controller featuring a tamper-resistant adjustment mechanism with 320° rotation range. The through-port design minimizes pressure loss while allowing cylinder speed regulation in both extension/retraction directions. Chrome-plated brass construction ensures corrosion resistance in humid environments.
- Pneumatic cylinder speed synchronization in automation lines
- Conveyor belt tension control systems
- Packaging machine clamp force adjustment
- Textile machinery feed rate regulation
- Semiconductor handling equipment
Installation note:
Install downstream of lubricator when used with oil-mist systems. For meter-out control,
pair with check valve (PSA8-S + SCA8-00 combination recommended). Adjust while monitoring
actuator motion - clockwise rotation reduces flow.
| Property | Property Value |
|---|---|
| sku | PSA8-S |
