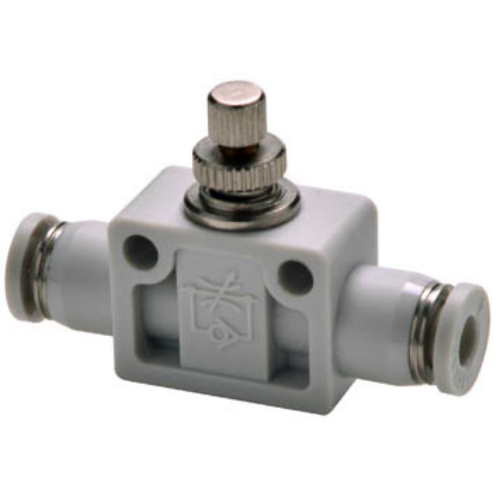

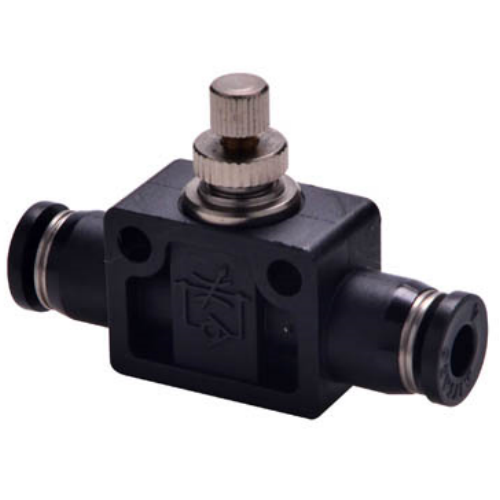

Airtac PSA In-Line Speed Control Valve PSA8D
AirTAC PSA8D In-Line Speed Control Valve Specifications
- Model: PSA8D (Threaded In-Line Type)
- Type: One-way adjustable flow control with check valve
- Port size: 1/8" BSPP (G1/8) / Metric M5 optional
- Flow capacity: 0-350 L/min (forward flow), 0-700 L/min (reverse flow via check valve)
- Pressure range: 0.05–1.0 MPa (7–145 psi)
- Operating temperature: -5℃ to 80℃ (23°F to 176°F)
- Body material: Anodized aluminum alloy (black oxidation treatment)
- Seal material: NBR (Nitrile) for standard version / Optional FKM (Viton)
- Adjustment mechanism: 360° rotary knob with click-stop detents
- Flow calibration: Factory-calibrated for 0.1 MPa (14.5 psi) differential pressure
- Weight: 215g ±5g (including fittings)
- Dimensions: 58mm (L) × 34mm (W) × 34mm (H) / 2.28" × 1.34" × 1.34"
- Thread engagement depth: 10mm minimum
- Vibration resistance: ≤10 Hz @ 1.5mm amplitude, ≤50 Hz @ 0.7mm amplitude
Precision bi-directional flow controller featuring a dual-scale flow indicator (graduated 0-10 and percentage markings) with locking nut for vibration-proof adjustment. The integrated check valve allows free reverse flow, making it ideal for cylinder speed regulation. Includes anti-contamination design with 40μm filtration tolerance.
- Pneumatic cylinder cushioning adjustment in automation lines
- Conveyor belt tensioning systems
- Packaging machine clamp force modulation
- Medical bed actuator speed control
- Food processing pneumatic tool regulators
Installation protocol:
Mount vertically with flow arrow aligned to primary direction. For cylinder control,
install at cylinder port for exhaust flow regulation. Lubricate with ISO VG32 turbine oil
if using non-lubricated air systems. Perform initial calibration at 0.5 MPa system pressure.
| Property | Property Value |
|---|---|
| sku | PSA8D |
