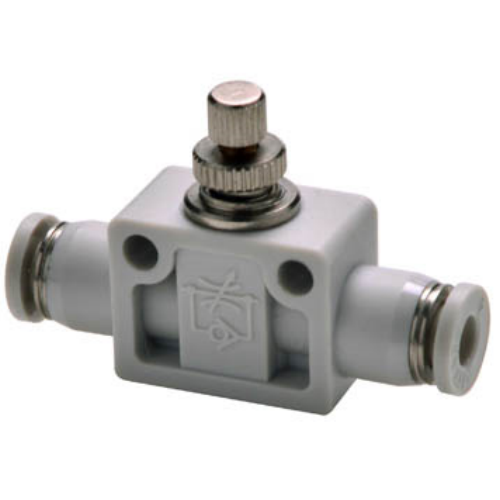

Airtac PSA In-Line Speed Control Valve PSA8D-S
AirTAC PSA8D-S Straight Through Speed Control Valve Specifications
- Model: PSA8D-S
- Type: Needle-type throttle valve with check function
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–0.9 MPa
- Max. flow rate: 300 L/min (ANR)
- Temperature range: -5℃ to 80℃
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile rubber)
- Adjustment knob rotation: 330°±10°
- Locking mechanism: Hex socket locking (M5)
- Flow direction: Bidirectional
- Weight: 0.23 kg
- Dimensions: 54mm(L) × 32mm(W) × 48mm(H)
- Protection rating: IP40
- Vibration resistance: 10–55 Hz (1.5mm amplitude)
Precision flow control valve featuring dual adjustment modes (push-pull & rotary) with visual scale indicators. The integrated check valve prevents reverse flow while allowing free flow in one direction. Corrosion-resistant construction with ergonomic knurled knob for tool-free adjustment in confined spaces.
- Pneumatic cylinder speed regulation in automated assembly lines
- Air motor torque control systems
- Packaging machine actuator synchronization
- Dental chair positioning mechanisms
- Textile machinery tension control
- Food processing pneumatic circuits (oil-free air required)
Installation note:
For optimal performance, install downstream of FRL units (Filter-Regulator-Lubricator).
Use 2.5mm hex key for flow locking after adjustment. Avoid overtightening beyond
torque limit of 0.5N·m. Recommended maintenance: Clean internal filter every 2,000
operating hours.
| Property | Property Value |
|---|---|
| sku | PSA8D-S |
