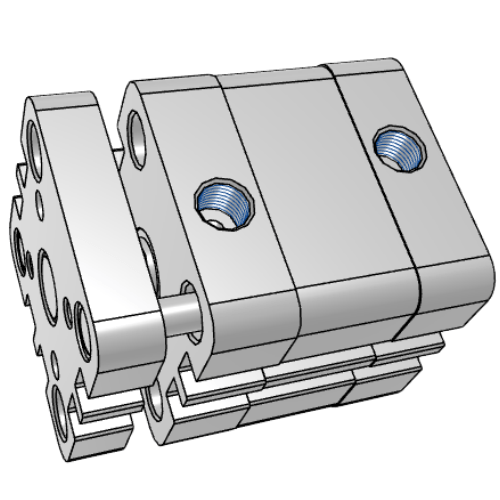

Airtac TACED Guided Compact Cylinder TACED80X30
The AirTAC Airtac TACED Guided Compact Cylinder TACED80X30 is a genuine double acting, double rod, non-rotating ISO 21287 compact air cylinder with a Ø80mm bore and 30mm stroke, 1/4" air ports and a hard-anodized aluminium body. Its short compact envelope saves about 50% of the mounting length of an ISO 15552 profile cylinder. Twin guide rods keep the tooling from rotating.
- BoreØ80 mm
- Stroke30 mm
- Port size1/4"
- Acting typeDouble acting, double rod, non-rotating
- Rod threadM12×1.75
- CushionFixed TPU bumper (both ends)
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac TACED Guided Compact Cylinder TACED80X30
A double acting, double rod ISO 21287 compact cylinder, the TACED80X30 pushes a 20 mm rod out of BOTH covers, so its 80 mm bore delivers 2356.2 N at 0.5 MPa in either direction - the rod-side area is identical on both sides. Twin guide rods on a yoke stop the tooling rotating and carry side load, keeping a gripper or press plate square without an external guide. The hard-anodized aluminium body with an S45C hard-chrome plated rod runs on air filtered to 40 um at 0.15-1.0 MPa (22-145 psi), 30-500 mm/s.
The short ISO 21287 body saves about 50% of the mounting length of an ISO 15552 profile cylinder, so this 80 mm bore fits tight weld jigs and clamping gantries where a full-length body will not. A fixed TPU bumper at each end absorbs end-of-stroke shock. For sizing, plan on roughly 1414 N of usable force at 0.5 MPa, which supports about 120 kg lifted vertically with a 2:1 margin. The magnet is optional: order the -S code to enable CMSE / DMSE switches.
Airtac TACED Guided Compact Cylinder TACED80X30 Technical Specifications
| Model | Airtac TACED Guided Compact Cylinder TACED80X30 |
|---|---|
| Series | TACED compact cylinder |
| Standard | ISO 21287 |
| Bore size | Ø80 mm |
| Stroke | 30 mm |
| Acting type | Double acting, double rod, non-rotating |
| Port size | 1/4" |
| Rod thread | M12×1.75 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Fixed TPU bumper (both ends) |
| Max standard stroke | Up to 100 mm |
Specifications follow the official AirTAC ACE-series (ISO 21287) datasheet. Body: hard-anodized aluminium alloy; piston rod: S45C carbon steel with hard-chrome plating; guide rods: stainless steel (Ø12-40) / S45C (larger). Rod type: female thread (blank) or male thread (B). Thread options: PT (blank) / G. A built-in magnet is OPTIONAL — add the -S code to fit CMSE / DMSE position sensors.
Theoretical Output Force (Ø80mm)
| Pressure | Force (both ways) |
|---|---|
| 0.5 MPa | 2356 N |
| 0.7 MPa | 3299 N |
| Max (@1.0 MPa) | 481 kgf |
Double-rod: a rod exits both covers, so output force is equal in both directions (rod-side area used). Twin guide rods carry the side load and stop the tooling rotating.
Model Code: Airtac TACED Guided Compact Cylinder TACED80X30
| TACED | ISO 21287 compact cylinder (double-rod non-rotating (twin-guide yoke)). |
|---|---|
| 80 | Bore size in mm. |
| ×30 | Stroke length in mm. |
| S | Optional built-in magnet for CMSE / DMSE sensors (omit for no magnet). |
ACE-family variants: ACE (double acting), ASE / ATE (single acting push / pull), ACED (double rod), ACEJ (adjustable stroke), TACE / TACED (non-rotating twin-guide yoke). Mounting accessories: FA / FB flange, LB foot, CA / CB clevis, CR, SDB pivot, FTC; plus I and Y knuckles. Thread PT (blank) / G.
Where the Airtac TACED Guided Compact Cylinder TACED80X30 Is Used
Weld fixture clamping
The 2356.2 N equal force both ways clamps and releases heavy steel brackets on an automotive weld jig, with the twin guide yoke keeping the clamp pad square to the part.
Pallet press-down station
A 30 mm stroke presses stacked cartons or pallet lids on a packaging line; the fixed TPU bumpers soften each end of the short cycle at 30-500 mm/s.
Forklift attachment actuator
Drives a side-shifter or clamp arm on warehouse handling equipment, where the through-rod gives identical force in both travel directions and the compact body fits the attachment frame.
Is the Airtac TACED Guided Compact Cylinder TACED80X30 the Right Cylinder?
At 2356.2 N per direction at 0.5 MPa (3298.7 N at 0.7 MPa), the 80 mm bore suits heavy clamping and lifting; step down to the 63 mm bore at 1458.1 N for lighter loads or up to the 100 mm bore at 3769.9 N for more. The 30 mm stroke is within the standard range for this bore. Remember the piston drifts when air is lost - add a rod lock or pilot check valve if the load must stay put. Mount with the FB flange, and specify the -S code if CMSE / DMSE position sensing is needed; without it there is no magnet.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Short stroke fits the compact body
- ✓ Port/thread type (PT / G)
- ✓ Add -S if you need the magnet for sensors
- ✓ Rod type (female / male B) & mount (FA/LB/CA)
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Compact body: keep the stroke short and avoid side load on the rod.
- check Do not dismantle the threaded front/back covers.
- check Keep speed within the rated range; the TPU bumper absorbs stroke-end energy.
- check Installation by qualified personnel per AirTAC docs.
Airtac TACED Guided Compact Cylinder TACED80X30 FAQ
The 80 mm double rod bore gives 2356.2 N at 0.5 MPa and 3298.7 N at 0.7 MPa, equal in both directions because a rod exits both covers and both sides work on the rod-side area. Peak output is 480.5 kgf at 1.0 MPa. Operating range is 0.15-1.0 MPa (22-145 psi) with proof pressure 1.5 MPa (215 psi), speed 30-500 mm/s, and temperature -20 to +70 C.
It is an ISO 21287 compact cylinder whose short body saves about 50% of the mounting length of an ISO 15552 profile cylinder, with a hard-anodized aluminium body, S45C hard-chrome rod, fixed TPU bumpers at both ends and a female M12x1.75 rod thread on 1/4" PT ports. The magnet is optional: order the -S code to run CMSE or DMSE switches; without -S no sensor can be mounted. FB flange mounting is available, and outline dimensions should be confirmed from the datasheet.
