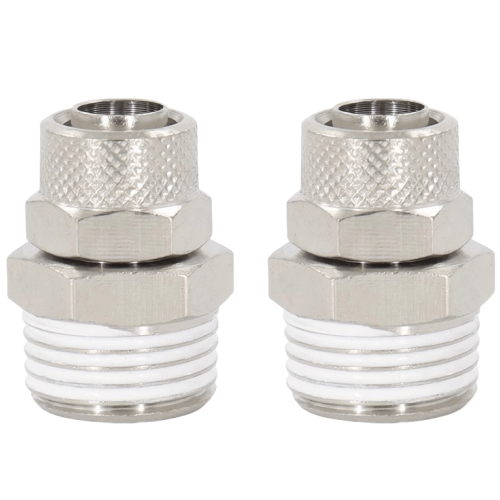

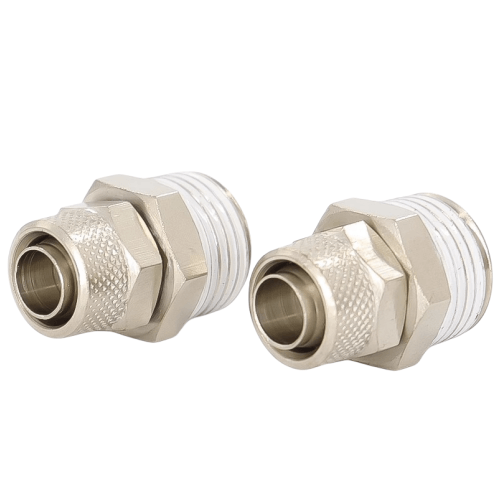

Airtac X-ABC Connector - Locknut Straight Terminal X-ABC1002
$4.20
Regular price
$11.70
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABC1002
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ABC1002 Push-in Fitting Locknut Straight Terminal Specifications
- Model: X-ABC1002
- Type: Push-to-connect straight terminal with locknut
- Material: Brass (nickel-plated surface)
- Thread Standard: M5×0.8 internal thread
- Seal Material: EPDM/NBR (standard), optional FKM
- Operating Pressure: 0.05-1.0 MPa
- Temperature Range: -20℃ to 80℃ (standard seal)
- Tube Compatibility: Ø4mm polyurethane/nylon tubing
- Vibration Resistance: ≤5G acceleration
- Weight: 85±2g
- Dimensions: 28mm(L) × 18mm(W) × 42mm(H)
- IP Rating: IP54 (dust/water splashes)
- Reconnection Cycles: ≥50 times (without leakage)
High-density brass terminal with triple-seal design (thread, O-ring, and tube grip) for leak-free pneumatic connections. The 360° rotatable locknut enables tool-free installation and maintenance. Nickel plating provides corrosion resistance in humid environments.
Key Applications:
- Modular pneumatic manifolds in assembly lines
- Vacuum pick-and-place systems
- Medical device gas delivery circuits
- Food-grade air supply connections
- Mobile hydraulic test benches
Installation protocol:
Insert tube until hearing a "click", then hand-tighten locknut (max 1.5Nm torque).
For gas applications, apply thread sealant to male threads. Replace O-rings every 3 years
or 10,000 pressure cycles.
Note: Compatible with ISO 8434-1/DIN 2353 metric connectors.
Not recommended for continuous oil immersion or pressures exceeding 1.2MPa.
| Property | Property Value |
|---|---|
| sku | X-ABC1002 |
