Airtac X-ABC Connector - Locknut Straight Terminal X-ABC1203A
$4.82
Regular price
$12.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABC1203A
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

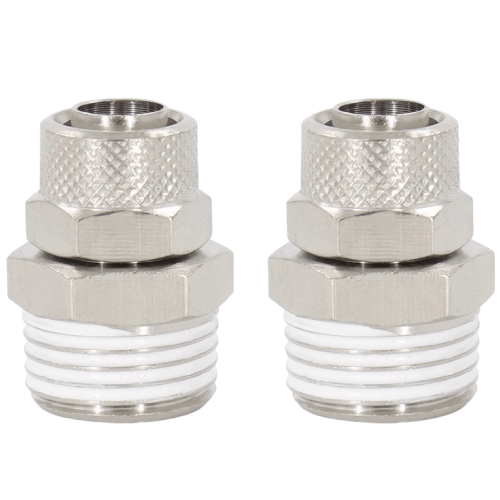

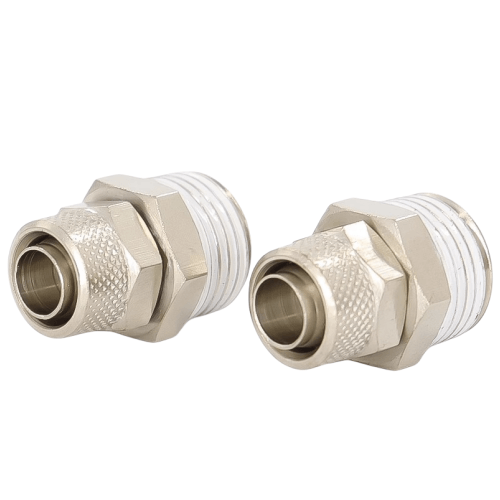

AirTAC X-ABC1203A Connector-Locknut Straight Terminal Specifications
- Model: X-ABC1203A
- Type: Straight-through terminal with integrated locknut
- Thread standard: G1/8 (ISO228-1 compliant)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.6 MPa (232 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Surface roughness: Ra ≤3.2μm
- Tightening torque: 1.0-1.5 N·m (thread engagement)
- Vibration resistance: ≤10 m/s² (5-2000 Hz)
- Weight: 28±2 grams
- Dimensions: 32mm(L) × 12mm(Dia) × 12mm(Locknut width)
- Certification: RoHS compliant
Precision-machined terminal connector featuring a dual-seal design (metal-to-metal + elastic seal) for leak-free pneumatic connections. The knurled locknut enables tool-free installation while maintaining 360° adjustable positioning. Compatible with PU/Nylon tubing (ID 4mm-8mm).
Typical Applications:
- Modular pneumatic manifolds in assembly lines
- Air brake system junctions in rail vehicles
- Vacuum gripper circuits for robotic arms
- Compressed air distribution in dental chairs
- Industrial IoT sensor air supply interfaces
Installation protocol:
Hand-tighten locknut first, then rotate body for alignment.
Apply 1/2 wrap of PTFE tape on male threads. Max 120° adjustment
after seating. Pressure test recommended at 1.8MPa before operation.
| Property | Property Value |
|---|---|
| sku | X-ABC1203A |
