Airtac X-ABC Connector - Locknut Straight Terminal X-ABC401
$2.96
Regular price
$10.46
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABC401
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

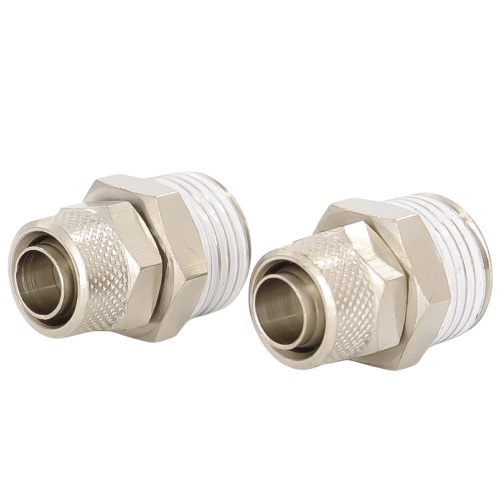

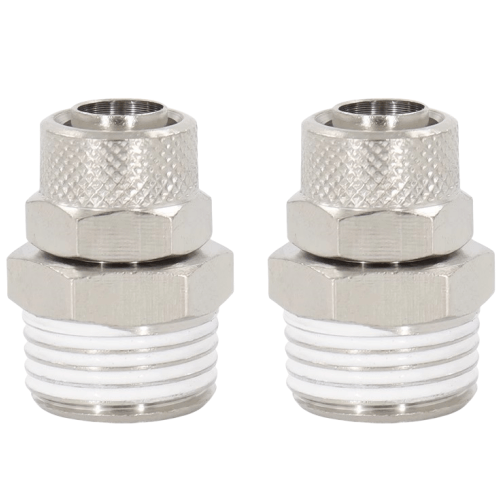

AirTAC X-ABC401 Push-in Fitting (Straight Terminal with Locknut) Specifications
- Model: X-ABC401
- Type: Straight terminal with locknut (one-touch fitting)
- Material: Nickel-plated brass body + PPS resin sleeve
- Thread specification: R1/8 (BSPP)
- Tube compatibility: Ø4mm (5/32") OD pneumatic tubing
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Seal material: NBR (Nitrile rubber)
- IP rating: IP40 (non-submerged applications)
- Vibration resistance: ≤10 Hz frequency, 1.5mm amplitude
- Weight: 18g ±0.5g
- Dimensions: 25mm(L) × 18mm(W) × 18mm(H)
- Certification: RoHS compliant
High-density sealing design with 360° rotatable connector for flexible piping alignment. Features dual-locking mechanism (collet + locknut) preventing accidental disconnection. Anti-corrosion nickel plating ensures durability in humid environments. Compatible with ISO 8434-1 standards.
Typical Applications:
- Modular pneumatic workstation assemblies
- CNC machine tool pneumatic circuits
- Automated packaging line air distribution
- Semiconductor manufacturing equipment
- Food processing machinery (non-contact areas)
Installation protocol:
Insert tube until audible click (minimum insertion depth 12mm).
Always hand-tighten locknut first before final adjustment.
Replace sealing ring every 5,000 connection cycles.
| Property | Property Value |
|---|---|
| sku | X-ABC401 |
