Airtac X-ABC Connector - Locknut Straight Terminal X-ABC802
$3.94
Regular price
$11.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABC802
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

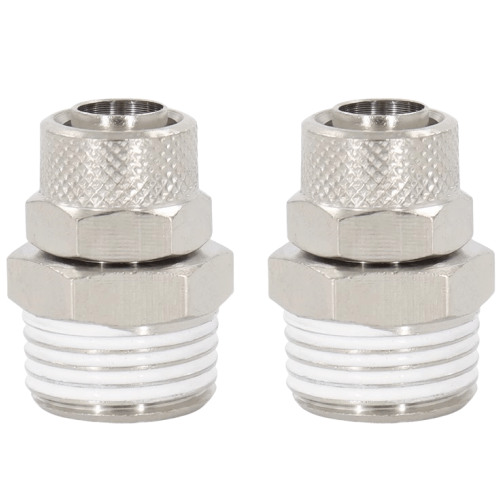

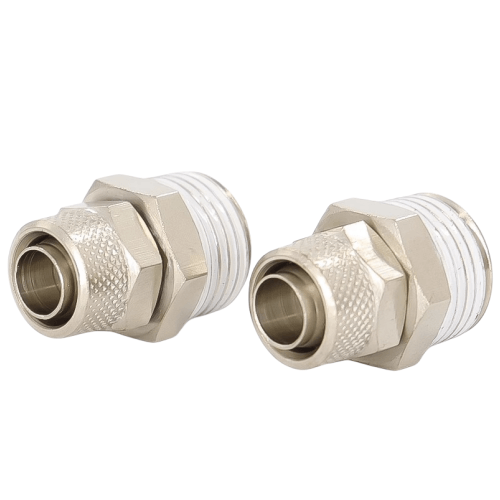

AirTAC X-ABC802 Lock Nut Straight Through Terminal Specifications
- Model: X-ABC802
- Type: Compression fitting straight connector with lock nut
- Material: Nickel-plated brass body, PPS (polyphenylene sulfide) seal
- Thread Standard: Metric (M5) or PT1/8 available
- Tube Compatibility: 8mm OD polyurethane/nylon tubing
- Max Working Pressure: 1.0 MPa (145 psi)
- Temperature Range: -20℃ to 80℃ (continuous use)
- Weight: 23g ±0.5g
- Dimensions: 34mm(L) × 16mm(W) × 16mm(H)
- Thread Engagement: 5 full turns minimum
- Vibration Resistance: ≤15Hz frequency, 1.5mm amplitude
- Leakage Rate: <0.1 mL/min @ 0.5MPa (tested with air)
High-density compression fitting designed for secure pneumatic line connections in high-vibration environments. Features dual sealing surfaces with a 45° cone seat and anti-rotation flats for wrench tightening. Includes integrated O-ring groove for secondary leak prevention.
Typical Applications:
- Robotic arm pneumatic circuit junctions
- CNC machine tool air supply distribution
- Packaging line actuator manifolds
- Semiconductor equipment vacuum line connections
- Automated test bench pressure ports
Installation protocol:
Cut tubing square with dedicated cutter, insert fully until tactile stop.
Hand-tighten lock nut first, then apply 1/4 turn with 10mm wrench.
Maximum re-use cycles: 5 times with same tubing.
| Property | Property Value |
|---|---|
| sku | X-ABC802 |
