Airtac X-ABC Connector - Locknut Straight Terminal X-ABC802A

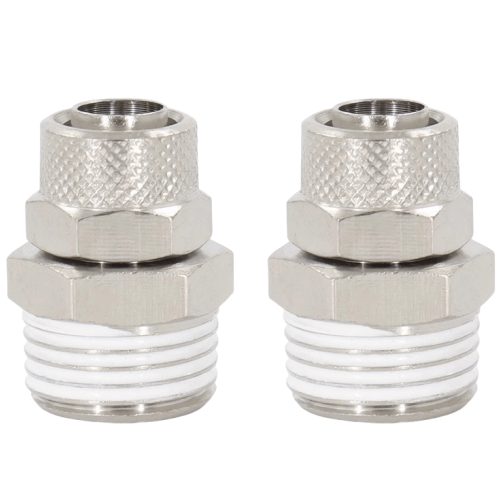

AirTAC X-ABC802A Connector-Locknut Straight Terminal Specifications
- Model: X-ABC802A
- Type: Push-to-connect straight terminal with locknut
- Thread Standard: PT1/8, NPT1/8, G1/8 (customizable)
- Material: Brass, nickel-plated body
- Seal Material: NBR (Nitrile Rubber)
- Operating Pressure: 0.5-16 MPa (72-2320 psi)
- Temperature Range: -20℃ to 80℃ (-4°F to 176°F)
- Tube Compatibility: Φ8mm OD polyurethane/nylon tubing
- Installation Torque: 1.5-2.0 N·m
- Weight: 18g ±0.5g
- Dimensions: 24mm(L) × 22mm(W) × 22mm(H)
- Vibration Resistance: ≤50m/s² (10-2000Hz)
- Certification: RoHS compliant
High-density sealing terminal with anti-vibration locknut design, featuring 360° rotatable connector head for flexible piping alignment. The dual-crimp structure prevents accidental disconnection under pressure fluctuations. Compatible with most industrial lubricants and compressed air media.
- Pneumatic valve manifold block installations
- Robotic arm end-effector air supply lines
- CNC machine tool coolant control systems
- Semiconductor cleanroom equipment
- Hydraulic test bench quick-connect points
Installation note:
Always deburr tubing ends before insertion. For optimal sealing,
insert tubing until it bottoms out (audible click) and perform
a 2-3mm pull test. Re-tighten locknut after 24hrs of initial operation.
