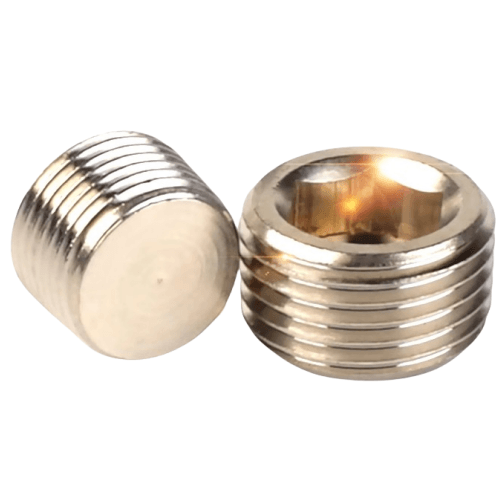

Airtac X-ABP Fitting - Hex Socket Plug X-ABP01
AirTAC X-ABP01 Hex Socket Plug Specifications
- Model: X-ABP01
- Type: Metric thread internal hexagon plug
- Thread specification: M5×0.8
- Applicable tube OD: Φ4-Φ6mm
- Material: Cold forged carbon steel (SCM435 equivalent)
- Surface treatment: Black oxide coating (5-8μm)
- Hex socket size: 2.5mm (H3 tolerance)
- Installation torque: 0.8-1.2 N·m
- Pressure rating: 1.5 MPa max
- Temperature range: -30℃ to 120℃
- Weight: 12g ±0.5g
- Dimensions: 8mm(L) × 8mm(W) × 5.5mm(H)
- Seal type: Integrated O-ring groove (NBR 70°±5°)
Precision-engineered sealing plug with internal hex drive, designed for permanent or temporary port blocking in pneumatic manifolds. Features anti-vibration thread design with controlled preload torque. The phosphate-free black oxide layer provides corrosion resistance exceeding 96hrs in salt spray test.
- Blocking unused ports in AIRTAC MX/PM series manifolds
- Emergency leak repair in pneumatic circuits
- Test point closure during system validation
- Modular assembly in automation equipment
- Vacuum system component isolation
Installation protocol:
Apply 2-3 drops of pneumatic sealant (Loctite 542 recommended) on threads before insertion.
Use calibrated torque wrench with T2.5 bit. Sequential tightening pattern required for multi-plug installations.
