Airtac X-ABP Fitting - Hex Socket Plug X-ABP03
$3.07
Regular price
$10.57
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABP03
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

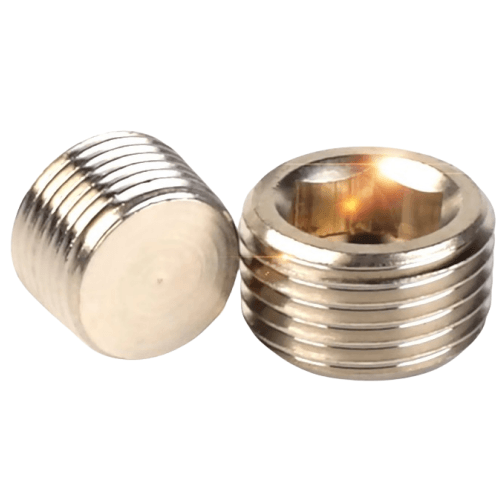

AirTAC X-ABP03 Hex Socket Plug (Port Plug) Technical Details
- Model: X-ABP03
- Thread standard: PT1/8 (BSPP)
- Material: Brass with nickel-plated surface
- Seal type: Embedded O-ring (NBR rubber)
- Hex socket size: 3mm (ISO 4762 standard)
- Pressure rating: 0.5-1.6 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: ≥HV200
- Weight: 14.5g ±0.5g
- Dimensions: 18mm(L) × 8mm(D) × 8mm(H)
- Certification: RoHS compliant
Precision-machined port sealing solution with dual-seal structure: Combines metal-to-metal thread contact and elastomer compression sealing. Features anti-vibration grooves and torque-optimized hex socket design (depth: 4.2mm) to prevent tool slippage.
Primary Applications:
- Blocking unused ports in pneumatic manifolds
- Maintenance access points in automation assembly lines
- Pressure test point termination in hydraulic systems
- Modular pneumatic circuit configuration
- Leak prevention in vacuum line installations
Installation guidance:
Apply 1.2-1.5 N·m tightening torque using calibrated hex key.
Lubricate threads with PTFE paste for high-vibration environments.
Replace O-ring every 5 years or 10,000 pressure cycles.
| Property | Property Value |
|---|---|
| sku | X-ABP03 |
