Airtac X-ABP Fitting - Hex Socket Plug X-ABP04
AirTAC X-ABP04 Hex Socket Plug Specifications
- Model: X-ABP04
- Type: Internal hexagon plug for pneumatic ports
- Material: Carbon steel with nickel plating
- Thread specification: M5×0.8 (ISO 262 metric fine)
- Hex key size: 3mm
- Max working pressure: 10 MPa (1450 psi)
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroless nickel coating (5-8μm)
- Weight: 8g ±0.5g
- Dimensions: 12mm(L) × 8mm(W) × 8mm(H)
- Seal compatibility: NBR rubber standard (other materials available)
- Standard compliance: ISO 16030 pneumatic port specifications

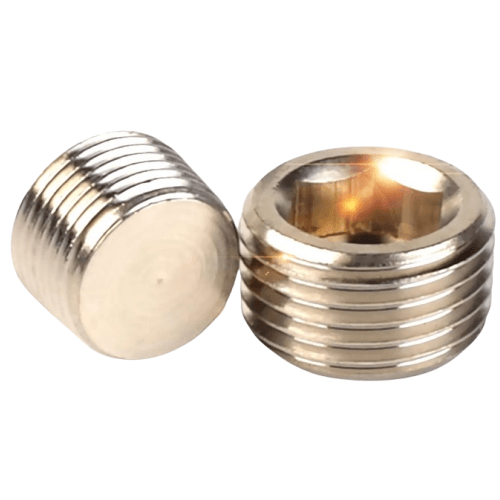

Precision-engineered sealing plug featuring a corrosion-resistant nickel finish and dual sealing surfaces. The 3mm hex socket design allows secure installation using standard L-key tools, with knurled edges for manual adjustment. Designed to withstand high-cycle pneumatic systems while preventing air leakage and port contamination.
- Blocking unused ports in AIRTAC modular valve systems
- Pneumatic manifold end sealing in automation equipment
- Pressure test point closure in hydraulic circuits
- Compact machinery requiring space-saving port solutions
- Medical device pneumatic interfaces (cleanroom compatible)
Installation note:
Apply 0.8-1.2 N·m torque using calibrated hex key.
Lubricate threads with pneumatic-grade grease for high-pressure applications (>5 MPa).
Replace if sealing surface shows visible deformation.
- X-ABP series connectors
- X-APM/X-AL modular manifolds
- X-ASQ quick coupling systems
- ISO 16030 standard ports (Type B)
| Property | Property Value |
|---|---|
| sku | X-ABP04 |
