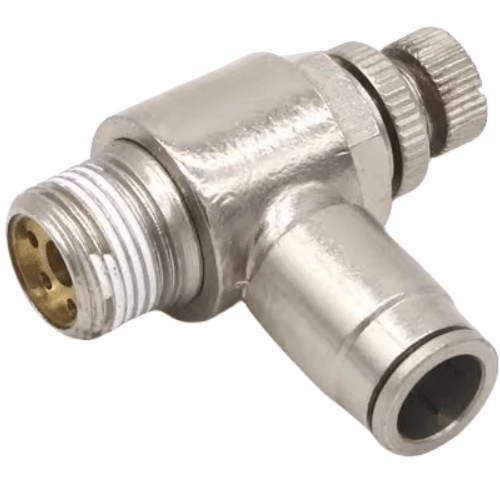

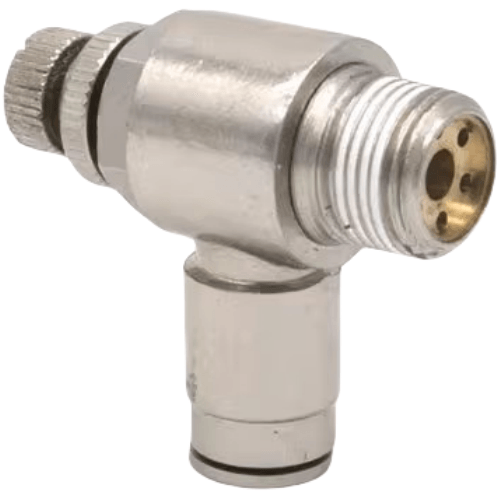

Airtac X-ASCT Connector - Full Brass Exhaust Throttle Type X-ASCT801
AirTAC X-ASCT801 Full Brass Exhaust Throttle Connector Specifications
- Model: X-ASCT801
- Type: Exhaust throttle restrictor (adjustable flow control)
- Material: Lead-free brass CW617N (body & internal components)
- Port size: PT1/8 (BSPP) female threads
- Operating pressure: 0.05–1.0 MPa
- Flow adjustment range: 0–100% (200 L/min max at 0.5 MPa)
- Temperature range: -20℃ to 120℃
- Throttle rotation angle: 300°±5° adjustment range
- Locking mechanism: Spring-loaded detent with hex lock nut
- Weight: 82g ±2g
- Dimensions: 38mm(L) × 22mm(W) × 28mm(H)
- Seal material: FKM (Viton) O-rings
- Surface treatment: Electroless nickel plating (3-5μm)
- Flow coefficient (Cv): 0.22
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision-engineered exhaust throttle connector with micro-flow adjustment capability, featuring corrosion-resistant brass construction and zero-backlash locking mechanism. The 45° angled exhaust port enables compact plumbing configurations while maintaining precise airflow regulation. Includes integrated dust cap for idle position protection.
- Cylinder speed control in automation equipment
- Shock absorption in pneumatic clamping systems
- Exhaust flow optimization for servo-pneumatic actuators
- Noise reduction in packaging machinery exhaust lines
- Precision dosing systems requiring adjustable venting
Installation note:
For optimal performance, install within 300mm of actuator exhaust port.
Apply Loctite 542 on adjustment threads for permanent settings.
Minimum 2 full counter-clockwise turns required before initial operation.
- Clean filter screen every 500 operating hours
- Lubricate adjustment thread with PFTE grease annually
- Replace O-rings every 3 years or 100,000 cycles
