Airtac X-ASCT Connector - Full Brass Exhaust Throttle Type X-ASCT802
AirTAC X-ASCT802 Full Brass Exhaust Throttle Type Connector Specifications
- Model: X-ASCT802
- Type: Full brass exhaust throttle (adjustable flow control)
- Thread standard: BSPP (G thread)
- Port size: 1/8" (M5x0.8 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 200 NL/min
- Temperature range: -5℃ to 90℃
- Material: Lead-free brass (C37700)
- Surface treatment: Electroplated nickel (8-12μm)
- Adjustment range: 0.2-8 L/min (air), 0.1-5 L/min (liquid)
- Weight: 38g ±0.5g
- Dimensions: 52mm(L) × 18mm(W) × 18mm(H)
- Vibration resistance: 10-55Hz (1.5mm amplitude)
- Seal material: Fluororubber (FKM)

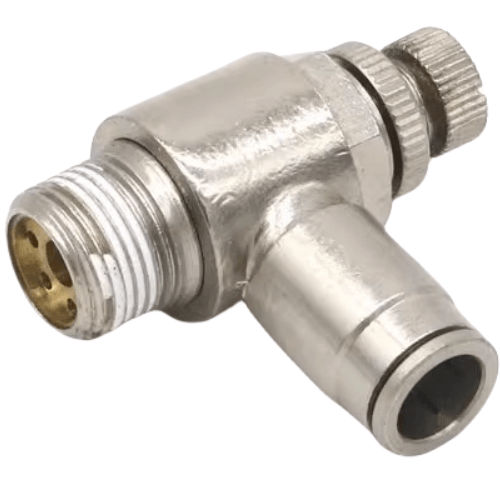

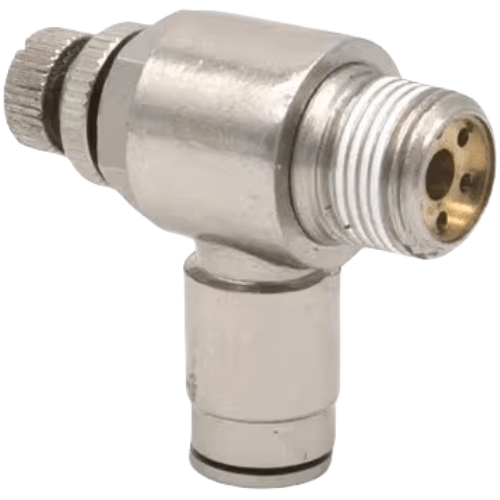

Precision-engineered brass throttle connector with 360° adjustable locking collar, featuring dual-stage sealing and anti-vibration grooves. The knurled adjustment knob allows ±270° rotation for micro-flow regulation, compatible with both pneumatic and low-viscosity hydraulic systems (ISO VG32 or below). Includes built-in particulate filter screen (100 mesh).
- Pneumatic cylinder speed control in automation lines
- Vacuum generator flow adjustment
- Medical gas equipment pressure regulation
- Robotic end-effector air flow optimization
- Packaging machine exhaust silencing systems
Installation tip:
Apply 2-3 drops of pneumatic oil (ISO VG32) to the adjustment shaft monthly
in high-cycle applications. For vertical mounting, orient the flow arrow upward
to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-ASCT802 |
