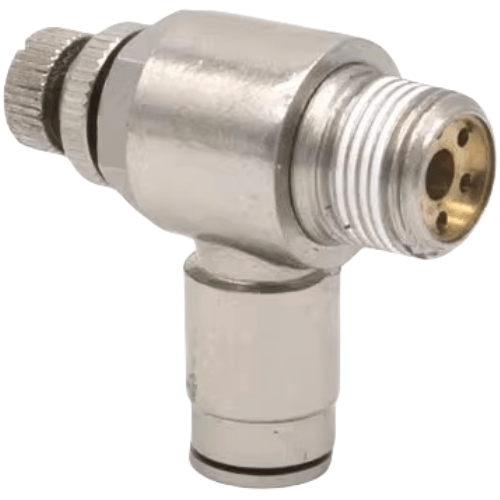

Airtac X-ASCT Connector - Full Brass Exhaust Throttle Type X-ASCT803
AirTAC X-ASCT803 Full Copper Exhaust Throttle Fitting Specifications
- Model: X-ASCT803
- Type: Exhaust throttle joint with integrated silencer
- Thread type: Rc1/8 (BSPT) female thread
- Material: Lead-free brass body, NBR sealing ring
- Flow adjustment range: 0.05-1.0 L/min (air)
- Operating pressure: 0.1-1.0 MPa
- Temperature range: -20℃ to 120℃ (with intermittent peaks up to 150℃)
- Flow coefficient (Cv): 0.12
- Effective sectional area (S): 0.8 mm²
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 19mm(W) × 19mm(H)
- Surface treatment: Electroless nickel plating (3-5μm)
- Vibration resistance: 10-55Hz, 1.5mm double amplitude
- Compliance: RoHS 2.0, REACH SVHC
Precision-engineered exhaust throttle for speed control in pneumatic circuits, featuring micro-adjustment screw with 270° rotation for fine-tuning. The copper-nickel construction resists oxidation and pneumatic oil degradation. Integrated labyrinth structure reduces exhaust noise by 15dB(A) minimum. Requires periodic cleaning (every 6 months) in high-humidity environments.
- Cylinder cushioning adjustment in pick-and-place robots
- Exhaust flow regulation for pneumatic grippers
- Speed control in automated assembly line actuators
- Medical equipment pneumatic braking systems
- Packaging machine stopper cylinder optimization
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 12-15N·m torque.
For vertical mounting, orient adjustment screw upward to prevent debris accumulation.
Lubricate quarterly with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | X-ASCT803 |
