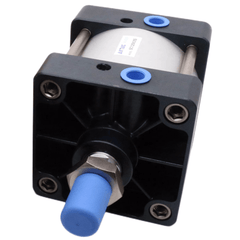

Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S
The AirTAC Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S is a genuine double-acting standard air cylinder with a Ø160mm bore and 700mm stroke, PT3/4 air ports and adjustable end cushioning. It is used for push, pull, lift and clamp motion in industrial automation.
- BoreØ160 mm
- Stroke700 mm
- Port sizePT3/4
- Acting typeDouble acting
- Rod threadM36×2
- CushionAdjustable, 29 mm
About the Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S
The AirTAC SC160X700S is a double-acting tie-rod cylinder delivering 10053 N push force at 0.5 MPa and up to 18095 N at the maximum operating pressure of 0.9 MPa. With a 40 mm diameter rod and a 700 mm stroke, this model suits heavy linear actuation tasks where substantial force is required over a mid-to-long travel distance.
The built-in magnet (-S suffix) allows direct mounting of CMSG, DMSG, or EMSG reed and solid-state sensors on the barrel for reliable end-of-stroke or mid-position sensing. The cylinder body length A is 239 mm, and the adjustable air cushion (29 mm length) decelerates the piston smoothly at each end to reduce impact noise and wear.
Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S Technical Specifications
| Model | Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S |
|---|---|
| Series | SC big-bore tie-rod cylinder (ISO 6430 class) |
| Bore size | Ø160 mm |
| Stroke | 700 mm |
| Acting type | Double acting |
| Port size | PT3/4 |
| Rod thread | M36×2 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 500 mm/s |
| Cushion | Adjustable, 29 mm |
| Max stroke | Up to 1500 mm |
Specifications follow the official AirTAC SC series datasheet. Operating pressure 0.15–1.0 MPa, proof pressure 1.5 MPa, temperature −20 to +70 °C. Confirm against the product label before installation. Thread options: PT (standard) / G.
Theoretical Output Force (Ø160mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 10053 N | 9425 N |
| 0.7 MPa | 14074 N | — |
| Max (approx.) | 2050 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S
| SC | Standard tie-rod cylinder series. |
|---|---|
| 160 | Bore size in mm. |
| ×700 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: SCD (double rod), SCJ (adjustable stroke), SCT (multi-position). Seals: TPU standard / H = Viton / N = NBR. Thread: blank = PT, G = G thread.
Where the Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S Is Used
Heavy Press Tool Actuation
Provides the high force (up to 18095 N at 0.9 MPa) needed to operate clamping fixtures and forming tools in metal fabrication presses.
Pallet Lifting & Transfer
The 700 mm stroke and 10053 N push at 0.5 MPa suit lifting mechanisms and transfer stations in automated warehousing, with sensor feedback for position confirmation.
Material Handling Pushers
Drives heavy-duty pusher arms on conveyor lines for large packages or bulk materials, where the robust 40 mm rod withstands repetitive impact loads.
Is the Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S the Right Cylinder?
For applications needing slightly less force, the SC125 bore offers 6136 N at 0.5 MPa, while the SC200 bore steps up to 15708 N at the same pressure. At a 700 mm stroke, ensure the rod is guided externally if significant side loads are present—long, unsupported rods can experience bending stress. When replacing an existing unit, match five points: 160 mm bore, 700 mm stroke, PT port thread, the built-in magnet (-S), and the basic (no bracket) mounting configuration.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
- check Installation by qualified personnel per AirTAC docs.
Airtac AIRTAC SC125-160 Standard Cylinder SC160X700S FAQ
At 0.5 MPa, push force is 10053 N and pull force is 9425 N. At 0.7 MPa, push is 14074 N. The maximum operating push force at 0.9 MPa is 18095 N. Theoretical force at 1.0 MPa is 2050 kgf.
Yes. The -S suffix indicates a built-in magnet, so you can clamp CMSG (reed) or DMSG/EMSG (solid-state) sensors directly onto the barrel to detect piston position without additional brackets.
