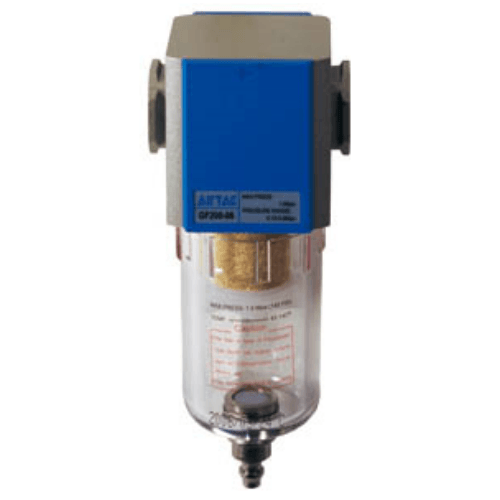

Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W
The AirTAC Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W is a genuine G-series air filter. It separates condensed water and filters particulate from the compressed-air line through a 5 µm element, with PT1/2" ports and a differential-pressure drain. A filter does not set downstream pressure — pair it with a GR regulator, or use a GFR filter regulator, when pressure control is needed.
- TypeAir filter
- Port sizePT1/2"
- Filtering grade5 µm
- DrainDifferential-pressure drain
- Inlet pressure0.15 - 1.0 MPa (22 - 145 psi)
- Bowl materialPC
- ThreadPT
- BracketMounting bracket included
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W
GF30015W is an AirTAC G-series compressed air filter: it strips water and particulate from the line and provides no pressure regulation and no lubrication. This unit is the size 300 body with a 1/2 in PT (code 15) port and the finer 5 um (W) element instead of the standard 40 um grade. Condensate gathers in the polycarbonate bowl and leaves through the differential-pressure drain, the default drain type that responds to the pressure drop across the element; a mounting bracket is included. Maximum inlet pressure is 1.0 MPa (145 psi) and working temperature is -5 to 70 C, non-freezing.
This is a genuine AirTAC part distributed in the US market. The G-series filter family runs from size 200 (1/8 to 1/4 in ports) through 300 and 400 up to size 600 (1 in port), where the 600 bowl is aluminium alloy and the smaller sizes use PC. Ordering choices cover 40 um or 5 um filtration, differential-pressure, automatic or manual drainage, and the J suffix to omit the bracket. AirTAC publishes filter flow as curves rather than a single rating, so we confirm the sizing figures and the datasheet for your application on request.
Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W Technical Specifications
| Model | Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W |
|---|---|
| Series | GF300 air filter |
| Port size | PT1/2" (PT thread) |
| Filtering grade | 5 µm |
| Drain type | Differential-pressure drain |
| Bracket | Mounting bracket included |
| Fluid | Compressed air |
|---|---|
| Inlet pressure | 0.15 - 1.0 MPa (22 - 145 psi) |
| Max. working pressure | 1.0 MPa (145 psi) |
| Temperature range | -5 to +70 °C (unfreeze) |
| Bowl material | PC |
| Feature | Low pressure loss |
Specifications follow the official AirTAC G-series air-preparation data. The inlet-pressure band is set by the drain type: automatic and differential-pressure drains run 0.15 - 1.0 MPa, a manual drain runs 0 - 0.9 MPa. Air must not freeze in the unit. Flow curves, weight and outline dimensions are not published in our data set — ask us and we will confirm from the factory datasheet.
Model Code: Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W
| GF300 | G-series air filter, 300 body — sets the port range. |
|---|---|
| 15 | Port size PT1/2". This body offers 08 = PT1/4", 10 = PT3/8", 15 = PT1/2". |
| (blank) | Drain: Differential-pressure drain. Options are differential (blank), automatic (A) or manual (M). |
| (blank) | Mounting bracket included. A bracket ships by default; J orders it without. |
| W | Filtering grade 5 µm. Only 40 µm (blank) and 5 µm (W) exist. |
| (blank) | PT thread. PT is the default; G is BSPP and T is NPT. |
Field order is size, port, drain, bracket, grade, thread — a blank position takes the default. Example: GF300-10AJW is a 300 body, PT3/8", automatic drain, no bracket, 5 µm element, PT thread.
Size Class
- GF200PT1/8" - PT1/4"
- GF300PT1/4" - PT1/2"
- GF400PT3/8" - PT1/2"
- GF600PT3/4" - PT1"
A larger body carries a larger port and passes more air at the same pressure drop. AirTAC publishes flow only as curves, so size the body from your peak demand with headroom rather than from a single rated figure. The GF600 uses an aluminium-alloy bowl; the 200, 300 and 400 bodies use PC.
| This model | GF300 · PT1/2" · 5 µm |
|---|---|
| One size down | GF200 |
| One size up | GF400 |
| Line order | Filter first, then regulator, then lubricator |
Where the Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W Is Used
CNC machining center air drop
Feeds filtered 5 um air to the solenoid valves and clamping cylinders on a CNC machining center, keeping moisture and pipe scale out of the machine pneumatics.
Bottling line gripper circuit
Sits ahead of the gripper and clamp cylinders on a bottling conveyor line, where finer filtration protects fast-cycling valves from water carryover.
Furniture spray-finishing booth
Cleans the compressed air feeding a spray-finishing booth on wooden furniture panels, so water and coarse particles do not mark the coating.
Is the Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W the Right Filter?
Sizes step as 200 = 1/8-1/4 in, 300 = 3/8-1/2 in, 400 = 1/2-3/4 in and 600 = 1 in ports, so pick the smallest size whose port and curve cover your line. This model carries the 5 um W element; the standard 40 um suits general protection, while 5 um serves valve-and-cylinder circuits that want cleaner air. Drainage choices are differential-pressure (this model), automatic (A) and manual (M). Thread is PT as standard, with G (BSPP) and NPT as catalogue thread options. Flow is published only as curves, not a single rated figure - share your demand and we will confirm the size against the datasheet before you order.
Quick checklist
- ✓ Body size for your peak flow (PT1/2" here)
- ✓ Element 40 µm or 5 µm
- ✓ Drain: differential, automatic or manual
- ✓ Manual drain caps inlet at 0.9 MPa
- ✓ Thread PT, G (BSPP) or NPT
- ✓ Bracket needed, or order with J
Installation & Maintenance Notes
- check Mount vertically, bowl down, and follow the airflow arrow.
- check Put the filter first in the air-preparation line.
- check Keep inlet pressure within 0.15 - 1.0 MPa (22 - 145 psi).
- check Drain condensate before the bowl fills.
- check Keep the unit above freezing (-5 to +70 °C, unfreeze).
- check Replace the 5 µm element when pressure loss rises.
The PC bowl must not be cleaned with solvents or exposed to synthetic oils that attack polycarbonate — wipe it with a dry cloth. A filter removes water and particulate only; it does not regulate pressure or add lubrication.
Airtac B52-GF Copper-Free Pneumatic Air Treatment Component B52-GF30015W FAQ
AirTAC publishes filter performance as pressure-drop curves rather than one rated flow figure, so we do not quote a number here. Send us your working pressure and air demand and we will confirm the sizing and provide the datasheet on request.
The standard 40 um element stops coarse water slugs and particles ahead of general plant equipment. The 5 um W element on this model suits circuits with precision valves or finishing work, where finer particulate would otherwise cause sticking or marking. Both grades are catalogue options across the GF size range.
